Parts Diagrams |

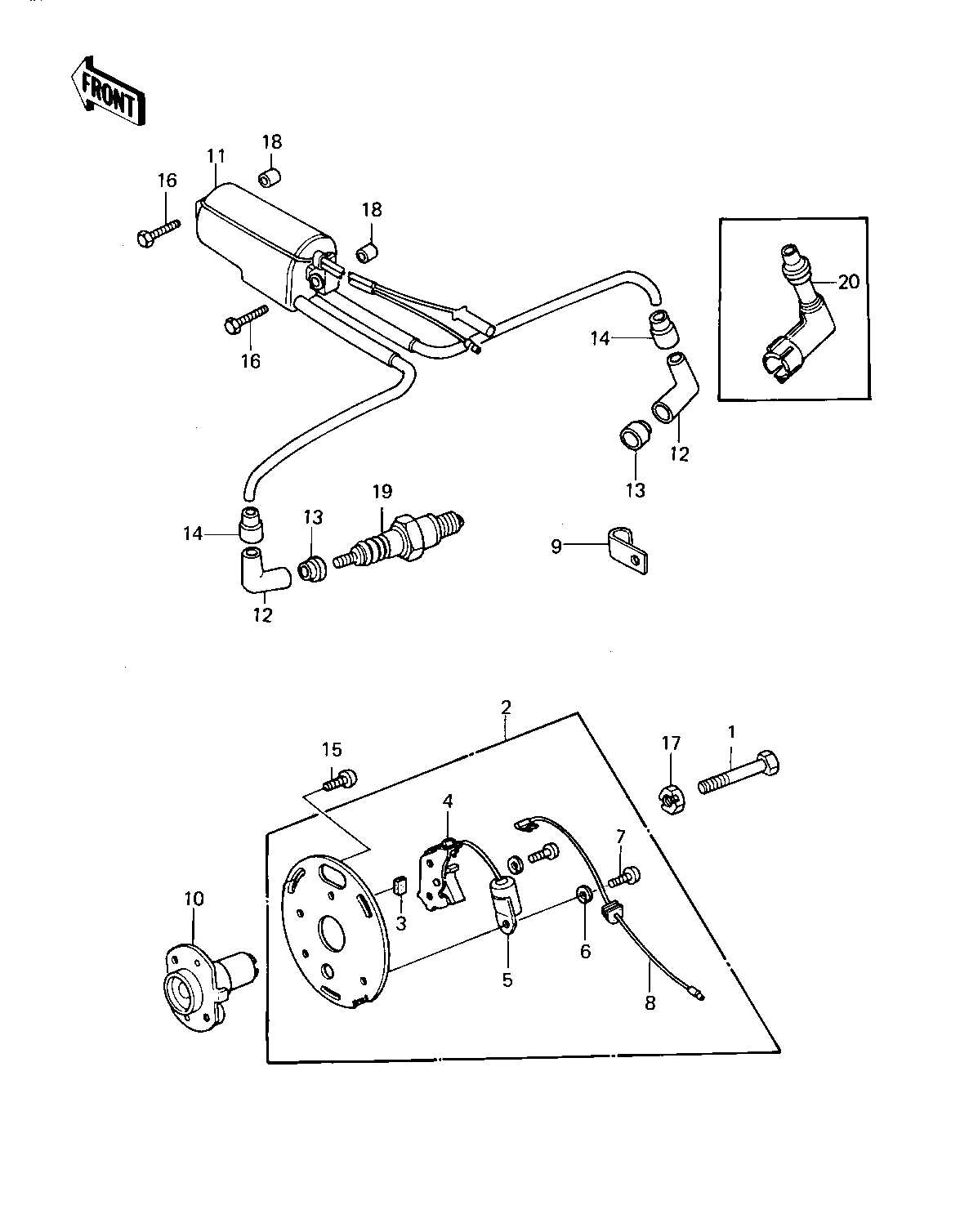

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-8X63 | 1 | 92001-1397 | 1 | ||
BREAKER ASSY,CONTACT | 2 | 21008-1014 | 1 | ||
FELT OIL | 3 | 21019-005 | 1 | ||
BREAKER,CONTACT | 4 | 21008-027 | 1 | ||
CONDENSER | 5 | 21013-1004 | 1 | ||
WASHER SPRING 6MM | 6 | 461F0600 | 4 | ||
SCREW PAN HEAD 4X6 | 7 | 220B0406 | 4 | ||
WIRE,LEAD,BREAKER | 8 | 26011-1030 | 1 | ||
CLAMP,WIRING HARNESS | 9 | 21126-008 | 1 | ||
GOVERNOR,BREAKER | 10 | 21148-1002 | 1 | ||
COIL-IGNITION | 11 | 21121-1174 | 1 | ||
CAP-SPARK PLUG,RTFM20 | 12 | 21130-1007 | 2 | ||
GROMMET-PLUG CAP,A | 13 | 21131-004 | 2 | ||
GROMMET,SPARK PLG CAP | 14 | 21132-005 | 2 | ||
SCREW PAN HEAD 5X12 | 15 | 220B0512 | 3 | ||
BOLT, IGNITION COIL | 16 | 92003-170 | 2 | ||
WASHER,SPARK ADVANCER | 17 | 92022-244 | 1 | ||
COLLAR,IGNITION COIL | 18 | 92027-276 | 2 | ||
SPARK PLUG B7ES | 19 | B7ES | 2 | ||
SPARK PLUG B7ES | 19 | B7ES | (2 | ||
CAP,SPARK PLUG | 20 | 21160-005 | 2 | USE FOR CANADIAN MARKET |
BOLT-8X63 | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREAKER ASSY,CONTACT | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FELT OIL | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREAKER,CONTACT | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CONDENSER | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 4X6 | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WIRE,LEAD,BREAKER | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,WIRING HARNESS | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GOVERNOR,BREAKER | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COIL-IGNITION | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-SPARK PLUG,RTFM20 | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET-PLUG CAP,A | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET,SPARK PLG CAP | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 5X12 | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT, IGNITION COIL | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,SPARK ADVANCER | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,IGNITION COIL | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPARK PLUG B7ES | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPARK PLUG B7ES | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | (2 |
DESTINATION | |
REMARKS |
CAP,SPARK PLUG | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | USE FOR CANADIAN MARKET |
