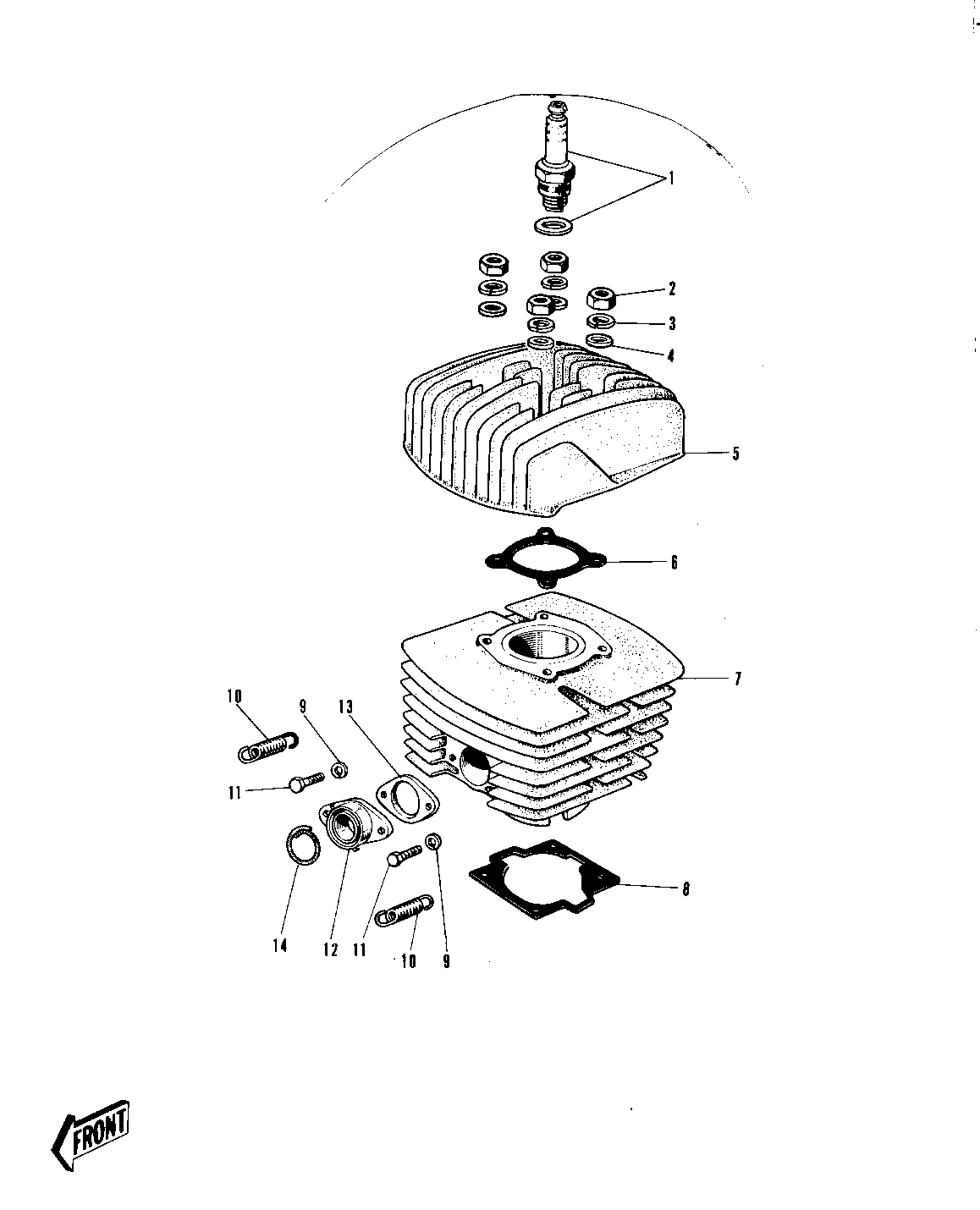

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPARK PLUG B8HN 1 92070-008 MGK B8HN
NUT,8MM 2 311B0800
WASHER SPRING 8MM 3 461F0800
WASHER PLAIN 8MM 4 410B0800
CYLINDER HEAD,F.BLACK 5 11001-038-21
GASKET CYLINDER HEAD 6 11004-033
CYLINDER 7 11005-054
GASKET CYLINDER BASE 8 11009-020
WASHER SPRING 6MM 9 461F0600
SPRING CONNECTOR 10 18071-001
BOLT-UPSET,6X20 11 112G0620
HOLDER EXHAUST PIPE 12 18069-028
GASKET EXH PIPE CLAMP 13 18067-005
