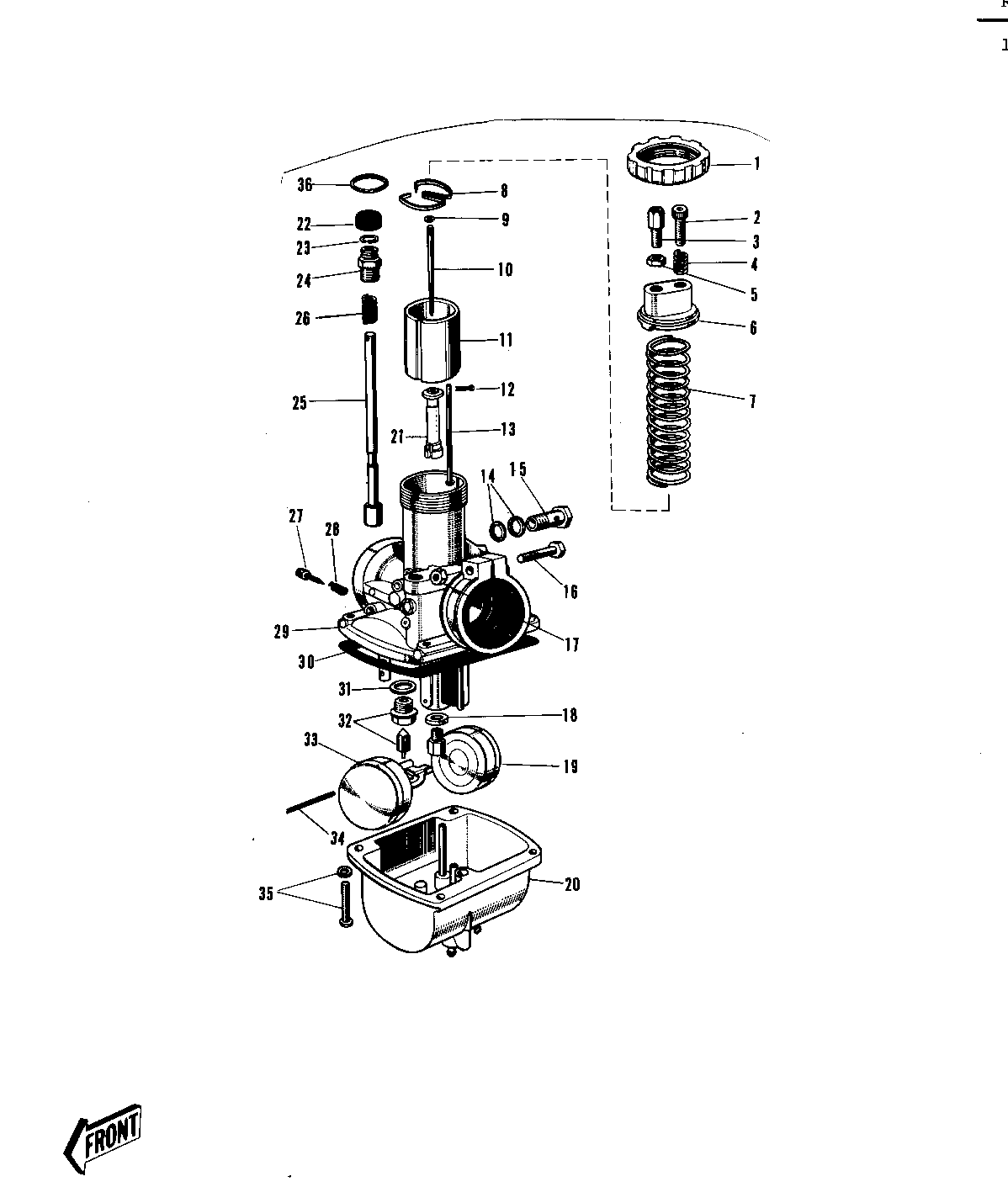

1971 Centurion - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1~35 16001-100 VM24SC
CAP MIXING CHAMBER 1 16004-011
SCREW,THROTTLE STOP 2 16021-002
CABLE ADJUSTER 3 16002-002
SPRING THR STOP SCREW 4 16022-005
NUT CABLE ADJUST LOCK 5 16003-004
TOP MIXING CHAMBER 6 16005-020
SPRING THROTTLE VALVE 7 16006-014
SPRING SEAT THRTL VLV 8 16007-012
CIRCLIP 9 16008-010
JET NEEDLE 4DG-6 10 16009-029 4DG6
VALVE THROTTLE 11 16025-028 CA3.0
UNAVAILABLE IN PRICE BOOK 12 16023-001
ROD THROTTLE VLV STOP 13 16024-004
GASKET 8MM 14 751P0800
BOLT BANJO 15 92001-011
SCREW CLAMP 16 16010-004
NUT 6MM 17 311B0600
WASHER MAIN JET 18 16034-001
JET-MAIN NO 150A 19 92063-016 S.T.D.
JET-MAIN NO 140A 19 92063-015 OPTION
JET-MAIN NO 160A 19 92063-017 OPTION
JET-MAIN NO 170A 19 92063-019 OPTION
NEEDLE JET 0-6 21 16017-036 0-6
CAP RUBBER 22 16036-006
CIRCLIP 23 92037-1077
CAP STARTER PLUNGER 24 16012-010
PLUNGER STARTER 25 16016-008
SPRING STARTER PLUNG 26 16013-006
SCREW PILOT AIR ADJST 27 16014-002
SPRING-THR STOP SCREW 28 16022-007
GASKET FLOAT CHAMBER 30 16019-013
WASHER FLOAT VLV SEAT 31 16029-004
FLOAT VALVE ASSY 32 16030-005
FLOAT 33 16031-016
FLOAT PIN 34 16032-003
SCREW FLOAT CHAMBER 35 16033-009 I.S.O
SPRING 36 92081-065
