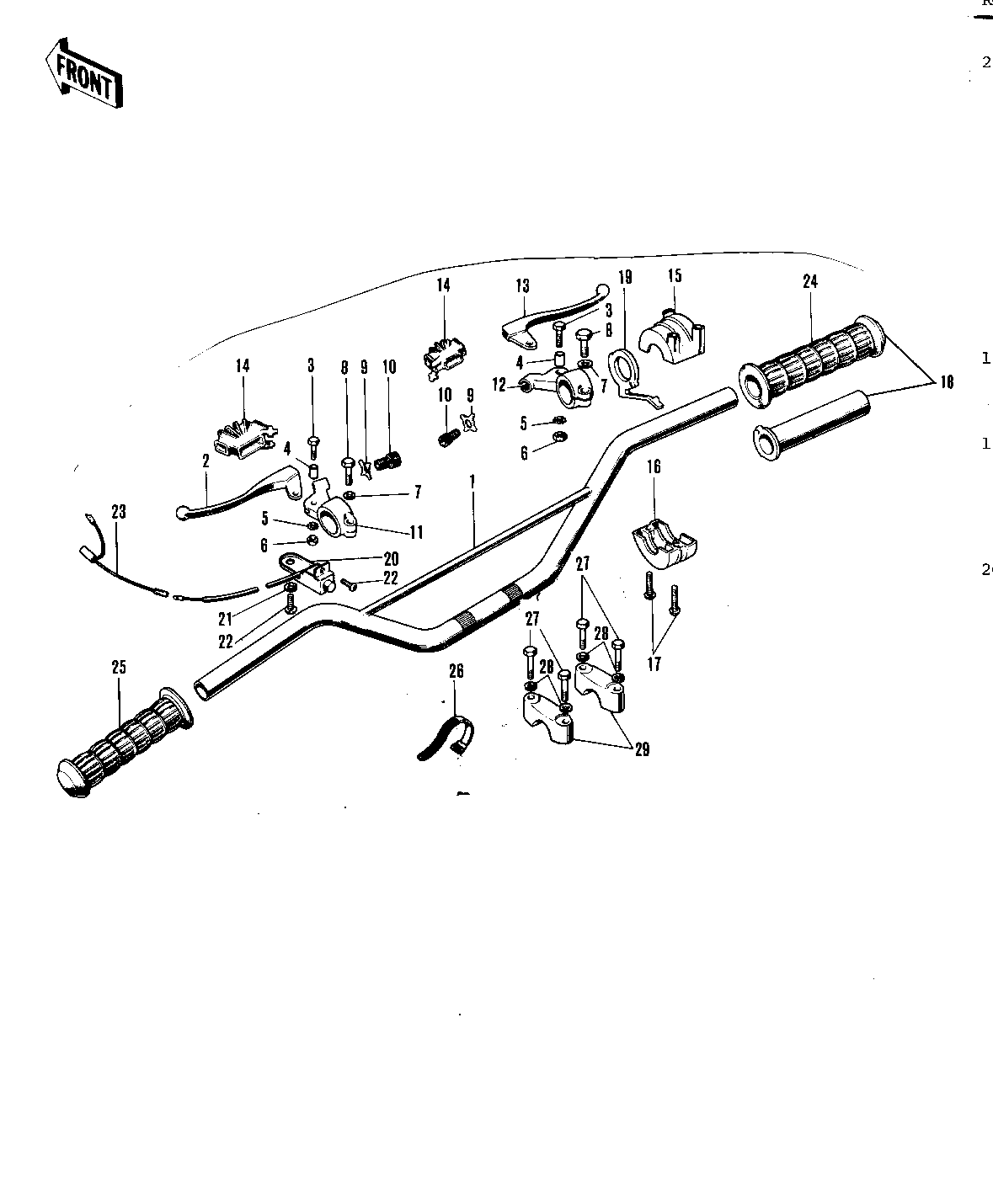

1971 Centurion - HANDLEBAR (G31M-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46004-004
LEVER ASSY-CLUTCH 2~11,1 46076-014
LEVER-CLUTCH 2 46092-015
BOLT HEX HEAD 5X20 3 92007-020
COLLAR LEVER 4 46059-011
WASHER LOCK 5MM 5 464H0500
NUT 5MM 6 312B0500
WASHER PLAIN 6MM 7 410B0600
BOLT, HEX HEAD 6X22 8 110N0622
NUT LOCK ADJUST SCREW 9 46056-001
SCREW,CABLE ADJUST 10 46055-010 I.D.=70
SCREW CABLE ADJUST 10 46055-003 I.D.=80
HOLDER-CLUTCH LEVER 11 46094-007
LEVER ASSY-FRNT BRAKE 3~10 46021-010
HOLDER-FR BRAKE LEVER 12~14 46060-005
LEVER FRONT BRAKE 13 46058-004
DUST COVER 14 46071-001
CASE ASSY-R.H 15~19 46018-019
CASE-R.H.UPPER 15 46041-005
CASE-R.H LOWER 16 46023-005
SCREW PAN HEAD 5X22 17 220B0522
GRIP ASSY-THROTTLE 18 46019-013
SWITCH ASSY-ENG STOP 20~22 46027-006
WASHER SPRING 3MM 21 461F0300
SCREW-PAN-HEAD 3X6 22 220B0306
WIRE-LEAD 23 26011-045
RUBBER-R.H GRIP 24 46061-012
RUBBER-L.H GRIP 25 46075-017
BAND,SHORT 26 92072-030
BOLT 8X38 27 92001-1405
WASHER SPRING 8MM 28 461F0800
HOLDER-HANDLEBAR 29 46012-008 BLACK
