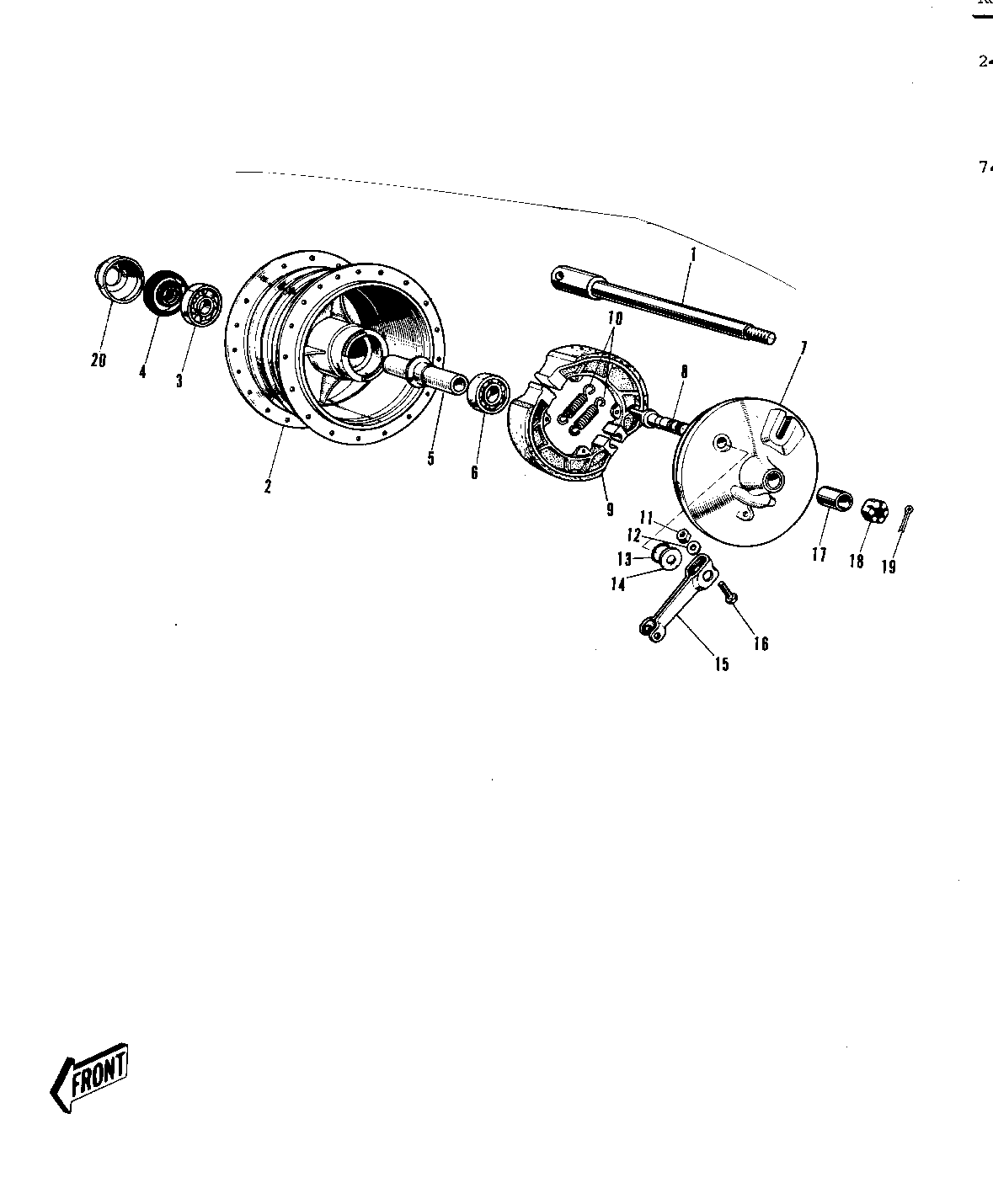

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE FRONT 1 41068-026
DRUM-ASSY,FR BRK 2~6 41034-004
BEARING BALL #6301 3 601B6301
OIL SEAL FR BRK DRUM 4 92050-011
SPACER FR HUB BEARING 5 41039-005
BEARING BALL #6301Z 6 601B6301Z
PANEL-ASY,FR BRK 7~16 41035-020
CAM SHAFT-FRONT BRAKE 8 41050-018
SHOE,BRAKE 9 41048-1007
SPRING,BRAKE SHOE 10 92081-1766
NUT 6MM 11 311B0600
WASHER PLAIN 6MM 12 410B0600
"0" RING,11MM 13 92055-004
WASHER BRAKE CAM SHT 14 41052-001
LEVER FRONT BRAKE CAM 15 41053-005
BOLT-UPSET 16 112G0630
COLLAR FRONT HUB R.H 17 41069-005
NUT-CASTLE 18 320G1200 I.S.O. THREAD
PIN COTTER 3.0X25 19 550D3025
DUST SHIELD FR BRAKE 20 41042-006
