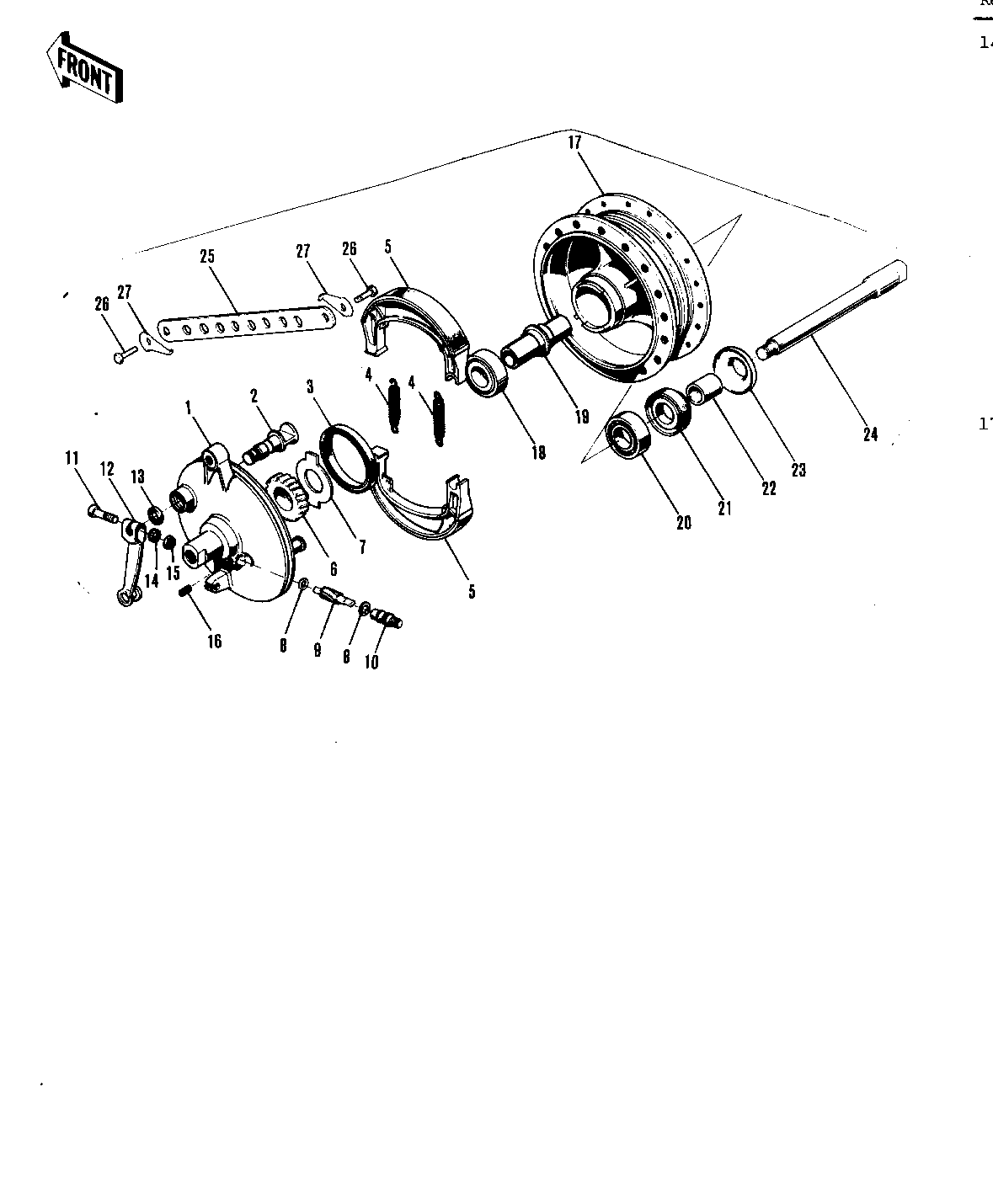

1971 Centurion - FRONT HUB/BRAKE (G31M-A)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PANEL-ASY,FR BRK BUFF | 1~16 | 41035-044-80 | |||
CAM SHAFT-FRONT BRAKE | 2 | 41050-018 | |||
SPRING,BRAKE SHOE | 4 | 92081-1766 | |||
SHOE,BRAKE | 5 | 41048-1007 | |||
BOLT-UPSET | 11 | 112G0630 | |||
BOLT-UPSET | 11 | 112G0630 | |||
LEVER FRONT BRAKE CAM | 12 | 41053-005 | |||
WASHER BRAKE CAM SHT | 13 | 41052-001 | |||
WASHER PLAIN 6MM | 14 | 410B0600 | |||
NUT 6MM | 15 | 311B0600 | |||
DRUM-ASSY,FR BRK | 17~21 | 41034-004 | |||
BEARING BALL #6301Z | 18 | 601B6301Z | |||
SPACER FR HUB BEARING | 19 | 41039-005 | |||
BEARING BALL #6301 | 20 | 601B6301 | |||
OIL SEAL FR BRK DRUM | 21 | 92050-011 | |||
COLLAR FRONT HUB R.H | 22 | 41069-005 | |||
DUST SHIELD FR BRAKE | 23 | 41042-006 | |||
AXLE-FRONT | 24 | 41068-032 | |||
TORQUE LINK-FRNT BRK | 25 | 43007-022 | |||
BOLT-HEA HEAD,8X20 | 26 | 92001-086 | |||
WASHER-LOCK | 27 | 92088-012 |
