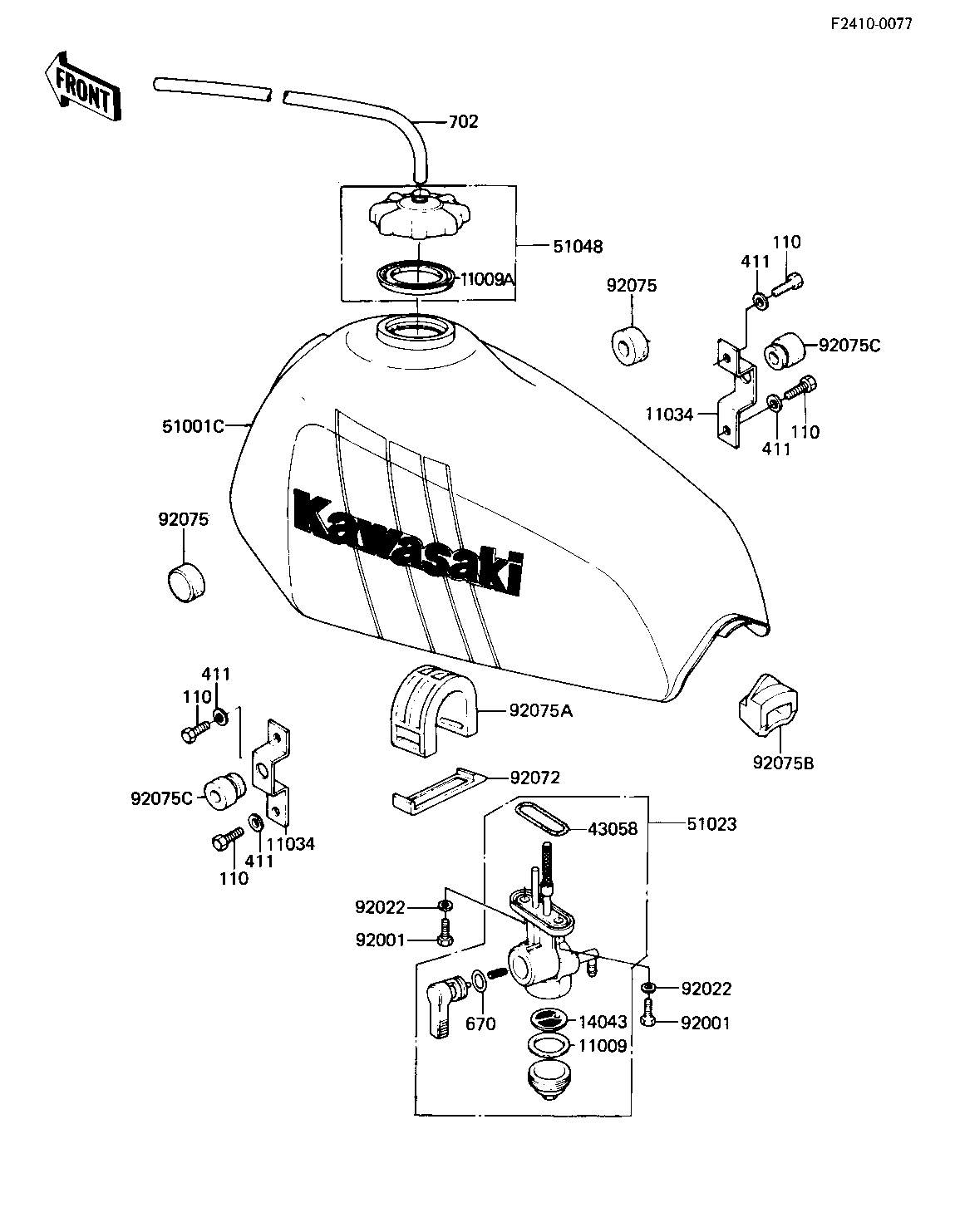

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FUEL TAP CUP | 11009 | 11009-1013 | 1 | ||
GASKET,FUEL TANK CAP | 11009A | 51059-006 | 1 | ||
BRACKET, | 11034 | 11034-1713 | 2 | ||
STRINER,FUEL TAP | 14043 | 14043-1002 | 1 | ||
"O" RING | 43058 | 51039-003 | 1 | ||
TANK-FUEL,F.RED | 51001C | 51001-5142-B1 | 1 | ||
TAP ASSY,FUEL | 51023 | 51023-1001 | 1 | ||
CAP ASSY,TANK,FUEL | 51048 | 51048-1004 | 1 | ||
BOLT,6X20,FUEL TAP | 92001 | 92001-1091 | 2 | ||
WASHER-PLAIN | 92022 | 92022-183 | 2 | ||
BAND,FUEL TANK | 92072 | 92072-1013 | 1 | ||
DAMPER RUBBER-FL TANK | 92075 | 92075-101 | 2 | ||
DAMPER,FUEL TANK | 92075A | 92075-1151 | 1 | ||
DAMPER,FUEL TANK | 92075B | 92075-1152 | 1 | ||
DAMPER RUBBER | 92075C | 92075-167 | 2 | ||
BOLT-UPSET,6X12 | 110 | 112G0612 | 4 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 4 | ||
"0" RING, 10MM | 670 | 670B2010 | 1 | ||
TUBE-RUBBER 5X400 | 702 | 702A05400 | 1 |
GASKET,FUEL TAP CUP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,FUEL TANK CAP | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET, | |
REF # | 11034 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STRINER,FUEL TAP | |
REF # | 14043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"O" RING | |
REF # | 43058 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-FUEL,F.RED | |
REF # | 51001C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP ASSY,FUEL | |
REF # | 51023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP ASSY,TANK,FUEL | |
REF # | 51048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20,FUEL TAP | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,FUEL TANK | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER RUBBER-FL TANK | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK | |
REF # | 92075B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 92075C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X12 | |
REF # | 110 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
"0" RING, 10MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-RUBBER 5X400 | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
