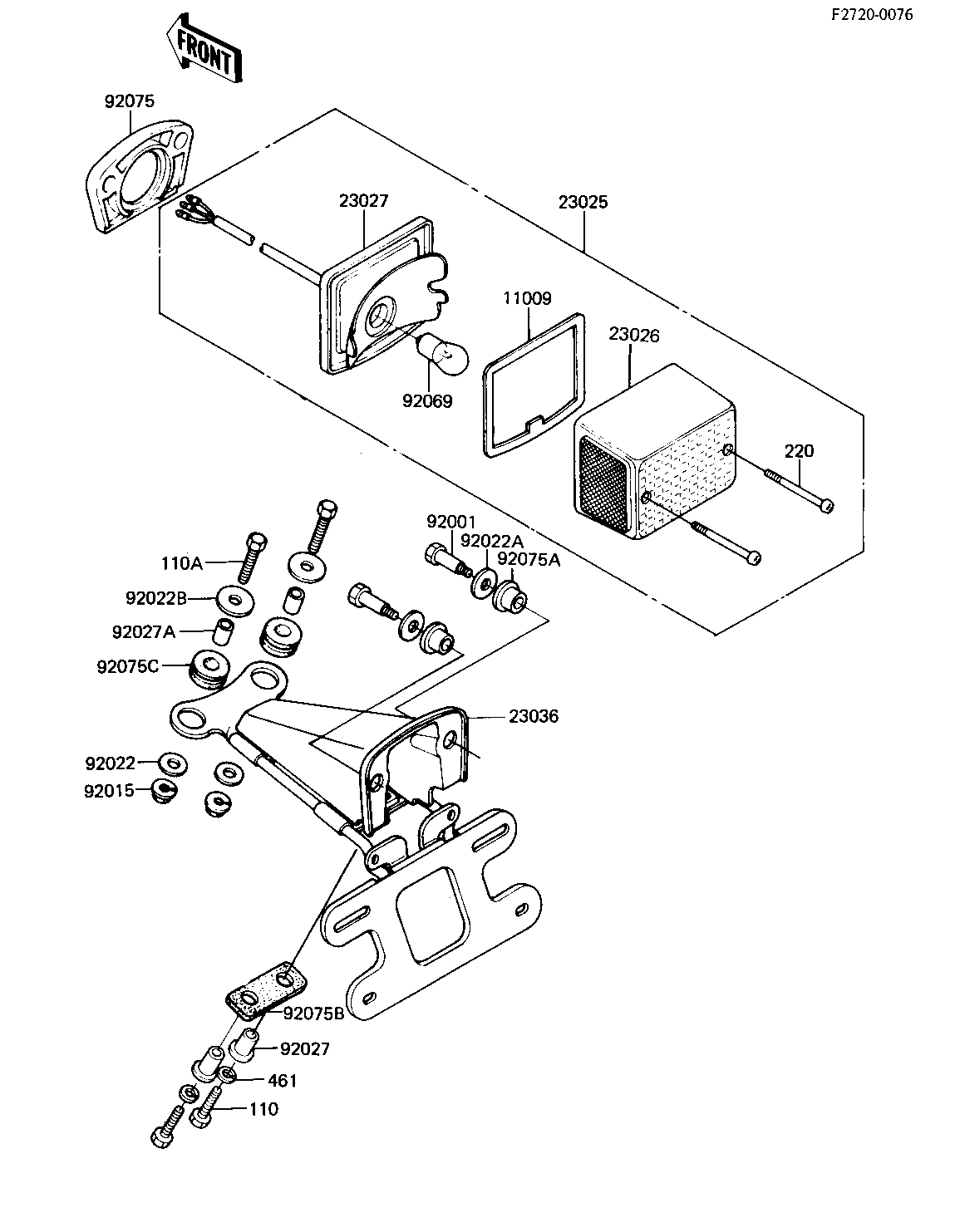

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TAIL LAMP LENS | 11009 | 11009-1078 | 1 | ||
LAMP-TAIL | 23025 | 23025-1032 | 1 | ||
LENS,TAIL LAMP | 23026 | 23026-1003 | 1 | ||
CASE,TAIL LAMP | 23027 | 23027-1020 | 1 | ||
BRACKET,TAIL LAMP | 23036 | 23036-1019 | 1 | ||
BOLT, | 92001 | 92001-1197 | 2 | ||
NUT,LOCK 6MM | 92015 | 92017-014 | 2 | ||
WASHER 6.5X20X1.6T | 92022 | 92022-125 | 2 | ||
WASHER,8.5X20X1.6 | 92022A | 92022-1561 | 2 | ||
WASHER 6.5X22X1.6T | 92022B | 92022-237 | 2 | ||
COLLAR | 92027 | 92027-1276 | 2 | ||
COLLAR,REAR FENDER | 92027A | 92027-162 | 2 | ||
BULB,60-32/3CP | 92069 | 92069-074 | 1 | ||
DAMPER RUBBER,TL LAMP | 92075 | 92075-1094 | 1 | ||
DAMPER RUBBER | 92075A | 92075-1162 | 2 | ||
DAMPER RUBBER | 92075B | 92075-1163 | 1 | ||
DAMPER RUBBER,RR FENR | 92075C | 92075-209 | 2 | ||
BOLT-UPSET | 110 | 112G0630 | 2 | ||
BOLT 6X35 | 110A | 110R0635 | 2 | ||
SCREW-PAN-CROS,4X40 | 220 | 220R0440 | 2 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 2 |
