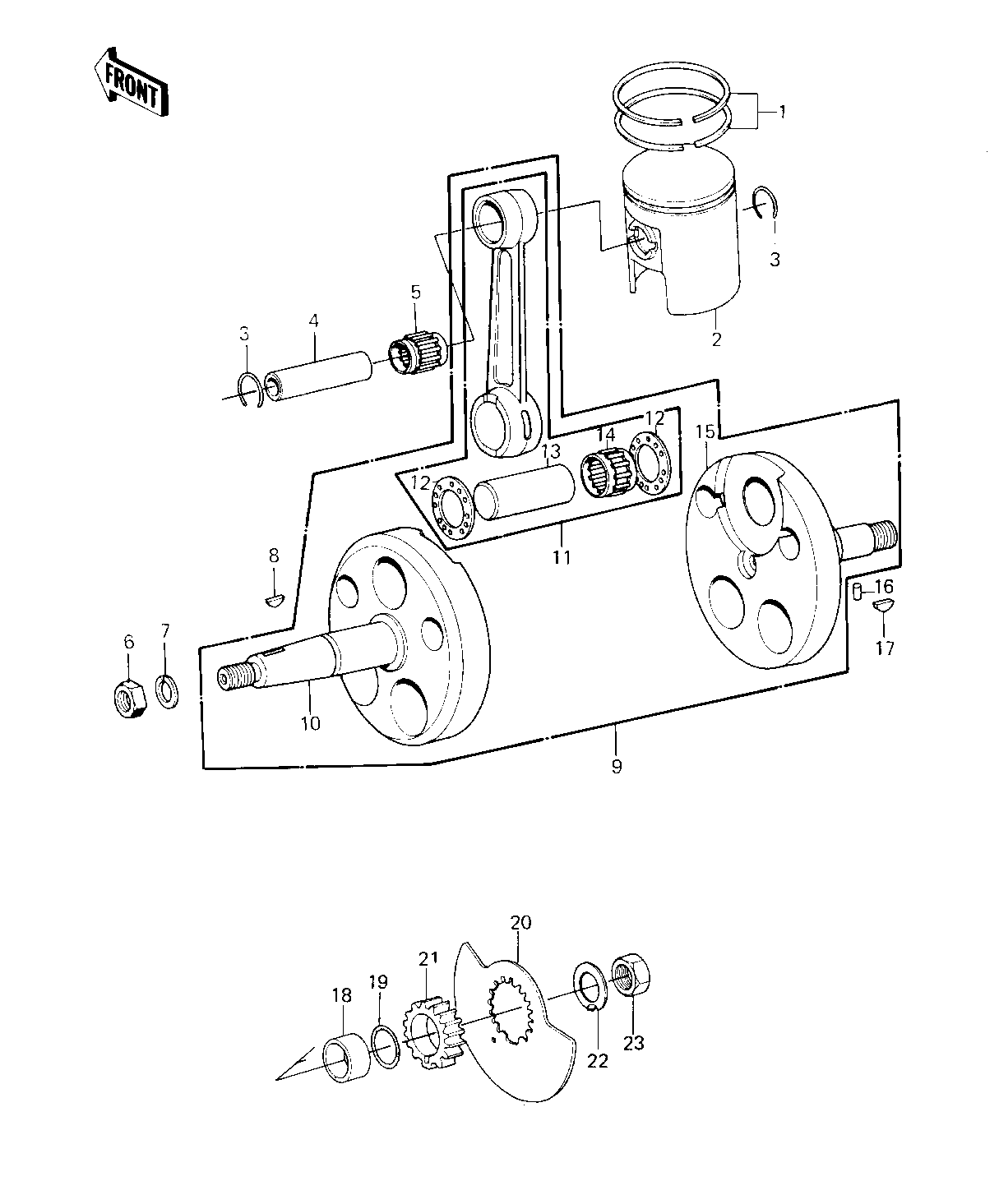

1980 KE125 - CRANKSHAFT/PISTON/ROTARY VALVE ('80-'81
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RING-SET,PISTON,S.T.D | 1 | 13008-5010 | 1 | ||
| PISTON-ENGINE,STD | 2 | 13001-1124 | 1 | ||
| CIRCLIP PISTON PIN | 3 | 92036-003 | 2 | ||
| PIN-PISTON | 4 | 13002-1002 | 1 | ||
| BRG,N,UR14/20AP-1 | 5 | 13033-035 | 1 | ||
| NUT,10MM | 6 | 314B1000 | 1 | ||
| WASHER SPRING 10MM | 7 | 461F1000 | 1 | ||
| WOODRUFF KEY | 8 | 510A3200 | 1 | ||
| CRANK AND CONROD ASSY | 9 | 13031-1003 | 1 | ||
| CRANKSHAFT,L.H | 10 | 13037-059 | 1 | ||
| CONNECTING ROD SET | 11 | 13044-5003 | 1 | ||
| WASHER SIDE | 12 | 92025-005 | 2 | ||
| CRANK PIN | 13 | 13035-033 | 1 | ||
| BRG,NEEDLE,KT202715EG | 14 | 13034-1001 | 1 | ||
| CRANKSHAFT,R.H. | 15 | 13037-1084 | 1 | ||
| PIN DOWEL 4X10 | 16 | 610A0410 | 1 | ||
| WOODRUFF KEY PRY PINI | 17 | 92038-003 | 1 | ||
| COLLAR,ENG SPROCKET | 18 | 92027-1077 | 1 | ||
| "0" RING,16MM | 19 | 670B2016 | 1 | ||
| VALVE,ROTARY DISC | 20 | 12002-029 | 1 | ||
| COLLAR,ROTARY DISC | 21 | 92027-1272 | 1 | ||
| WASHER LOCK 12MM | 22 | 92024-003 | 1 | ||
| NUT 12MM | 23 | 92015-006 | 1 |
| RING-SET,PISTON,S.T.D | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE,STD | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP PISTON PIN | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRG,N,UR14/20AP-1 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANK AND CONROD ASSY | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,L.H | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONNECTING ROD SET | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SIDE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CRANK PIN | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRG,NEEDLE,KT202715EG | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,R.H. | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 4X10 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY PRY PINI | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,ENG SPROCKET | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,16MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE,ROTARY DISC | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,ROTARY DISC | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK 12MM | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 12MM | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
