Part Item Information

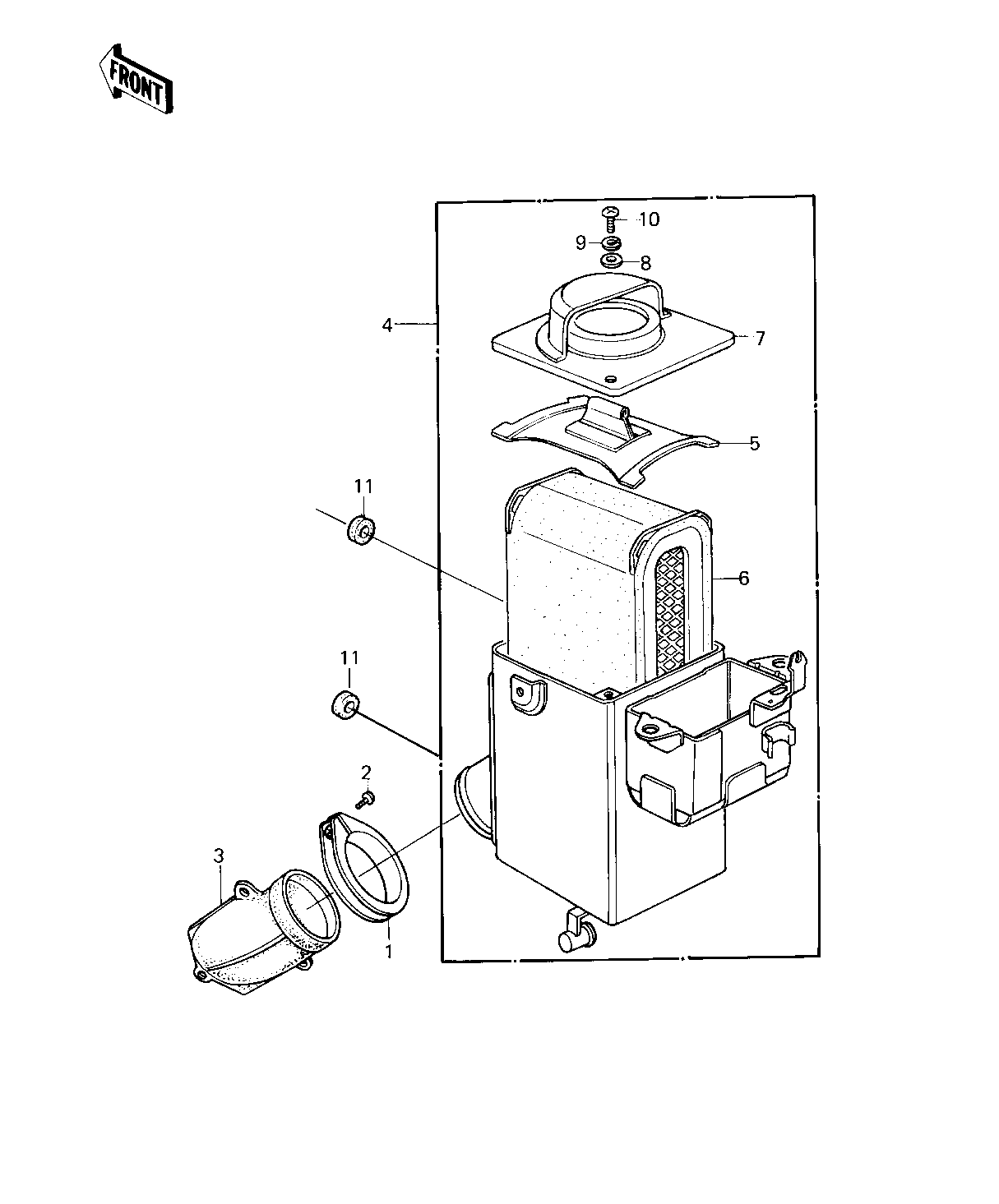

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLAMP,AIR CLEANER 1 92037-129 1
SCREW, PAN HEAD 6X35 2 92011-033 1
CONNECTOR,AIR CLEANER 3 14073-1004 1
FILTER-ASSY-AIR 4 11010-1126 1
HOLDER,AIR CLEANER 5 13091-1006 1
ELEMENT,AIR CLNR 6 11013-1007 1
CAP-AIR CLEANER 7 11012-1024 1
WASHER PLAIN 6MM 8 410B0600 2
WASHER SPRING 6MM 9 461F0600 2
SCREW PAN HEAD 6X12 10 220B0612 2
DAMPER RUBBER,CLENER 11 92075-217 2
