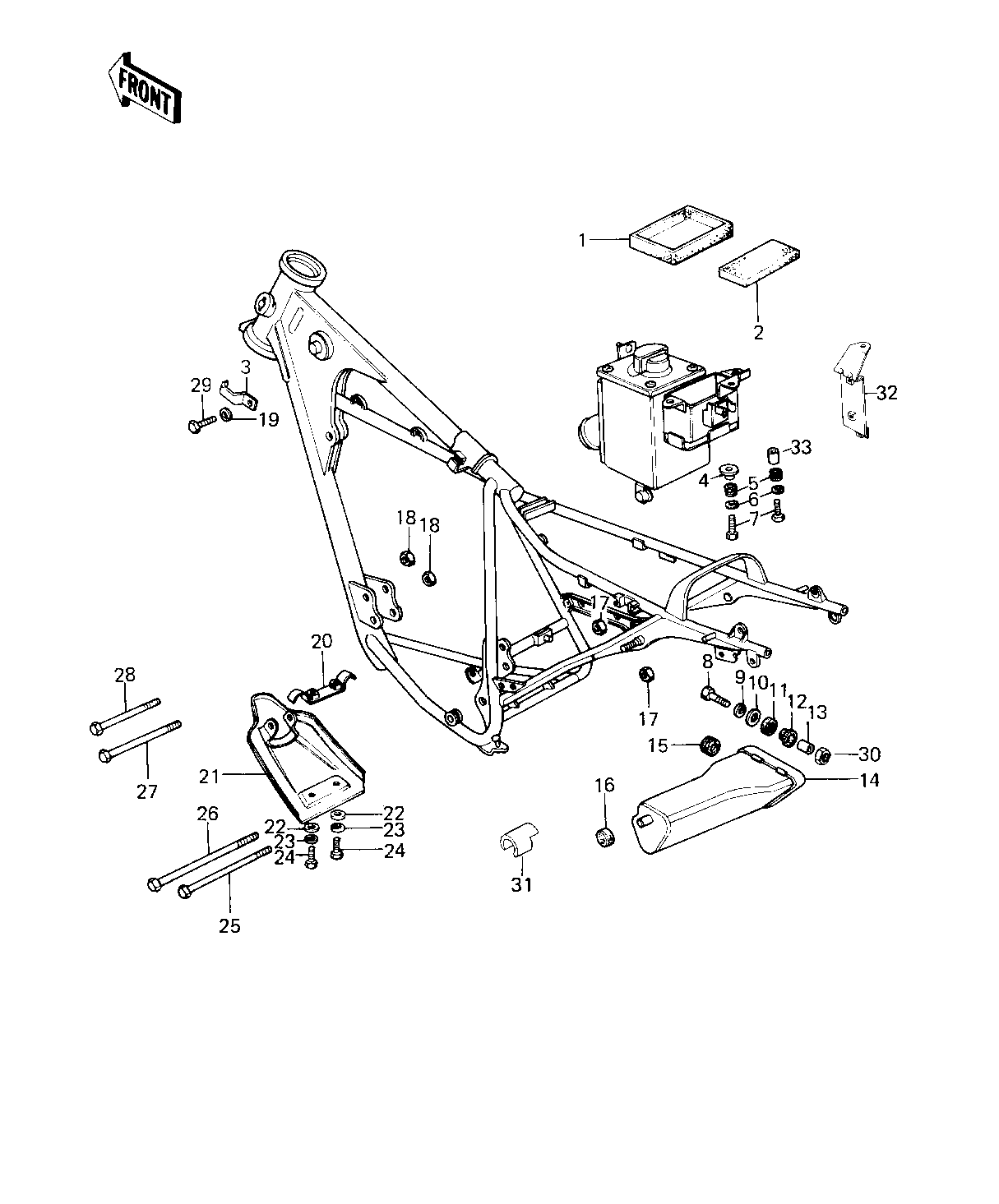

1980 KE125 - FRAME FITTINGS ('80-'81 A7/A8)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MAT-BATTERY SIDE 1 32103-023 1
MAT,BATTERY 2 32103-027 1
CLAMP,WIRE HARNESS 3 92037-150 1
COLLAR 4 92027-153 1
DAMPER RUBBER 5 92075-051 2
WASHER SPRING 6MM 6 461F0600 2
BOLT-UPSET,6X16 7 112G0616 2
BOLT-UPSET 8 112G0625 1
WASHER SPRING 6MM 9 461F0600 1
WASHER,PLAIN,7MM 10 92022-228 1
DAMPER RUBBER 11 92075-175 1
RUBBER,FENDER COVER 12 92075-174 1
COLLAR,REAR FENDER 13 92027-162 1
CASE,TOOL 14 32098-022 1
DAMPER RUBBER-OIL TNK 15 92075-150 1
DAMPER RUBBER 16 92075-107 1
NUT,10MM 17 92015-1429 2
NUT,LOCK,8MM 18 92015-1124 2
WASHER SPRING 6MM 19 461F0600 1
BRACKET,ENGINE GUARD 20 55016-008 1
GUARD,ENGINE 21 55011-020 1
WASHER 6.5X20X1.6T 22 92022-125 2
WASHER SPRING 6MM 23 461F0600 2
BOLT-UPSET,6X16 24 112G0616 2
BOLT,FLANGED,10X115 25 92001-1603 1
BOLT,FLANGED,10X130 26 92001-1604 1
BOLT FLANGED,8X70 27 92001-1583 1
BOLT-FLANGE 28 92001-1582 1
BOLT-UPSET 6X14 29 112B0614 1
NUT 6MM 30 311B0600 1
GUARD,CHAIN 31 55020-1045 1
BRACKET,REGULATOR 32 11034-1798 1
COLLAR 33 92027-103 1
