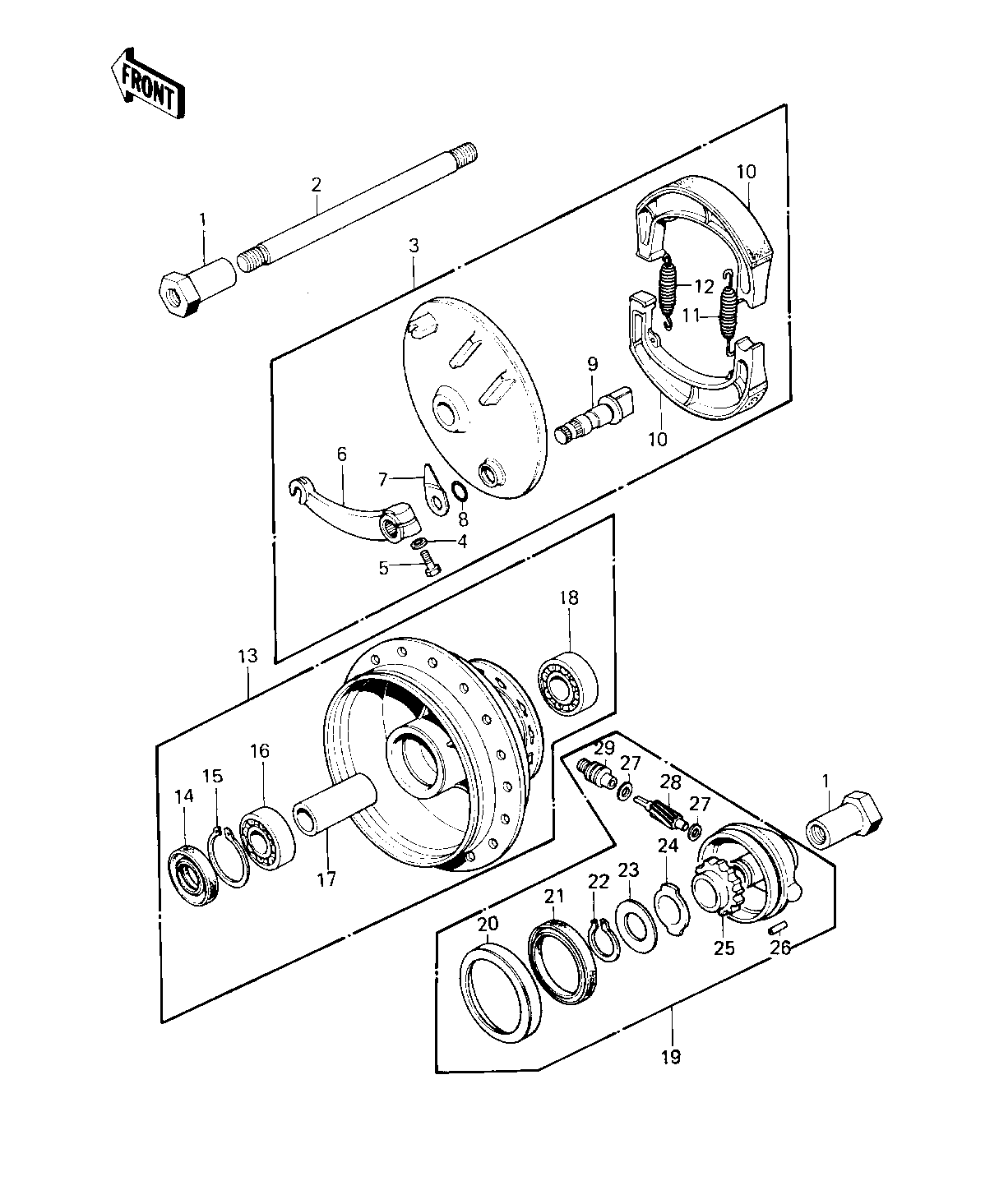

1980 KE125 - FRONT HUB/BRAKE ('80-'81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COLLAR,FRONT AXLE | 1 | 41069-024 | 2 | ||
| AXLE,FRONT | 2 | 41068-043 | 1 | ||
| PANEL-ASY,FR BRK | 3 | 41035-1035 | 1 | ||
| WASHER PLAIN 6MM | 4 | 410B0600 | 1 | ||
| BOLT 6X22 | 5 | 112B0622 | 1 | ||
| LEVER,FRNT BRAKE CAM | 6 | 41053-020 | 1 | ||
| INDICATOR,FR BRK PNL | 7 | 41085-002 | 1 | ||
| "0" RING,11MM | 8 | 92055-004 | 1 | ||
| CAM SHAFT,FRONT BRAKE | 9 | 41050-012 | 1 | ||
| SHOE,BRAKE | 10 | 41048-015 | 2 | ||
| SPRING,BRAKE SHOE | 11 | 92081-1766 | 1 | ||
| SPRING,BRAKE SHOE | 12 | 92081-1550 | 1 | ||
| DRUM-ASSY,FR BRK | 13 | 41034-1024 | 1 | ||
| OIL SEAL,FR BK DRUM | 14 | 92050-059 | 1 | ||
| CIRCLIP.37MM | 15 | 481J3700 | 1 | ||
| BEARING BALL #6301 | 16 | 601B6301 | 1 | ||
| SPACER,FR HUB BEARING | 17 | 41039-025 | 1 | ||
| BEARING BALL #6201 | 18 | 601B6201 | 1 | ||
| CASE ASSY,SPEED GEAR | 19 | 41078-009 | 1 | ||
| DUST COVER | 20 | 41042-013 | 1 | ||
| OIL SEAL | 21 | 654A405208 | 1 | ||
| CIRCLIP,19MM | 22 | 480J1900 | 1 | ||
| WASHER,THRUST | 23 | 41065-004 | 1 | ||
| RECEIVER,SPEED GEAR | 24 | 41064-011 | 1 | ||
| GEAR,SPEEDOMETER | 25 | 41059-024 | 1 | ||
| PIN,SPRING | 26 | 41082-001 | 1 | ||
| WASHER THRST SPD PINI | 27 | 41063-001 | 2 | ||
| PINION,SPEEDOMETER | 28 | 41060-015 | 1 | ||
| BUSH,SPEEDMETER CABLE | 29 | 41062-005 | 1 |
