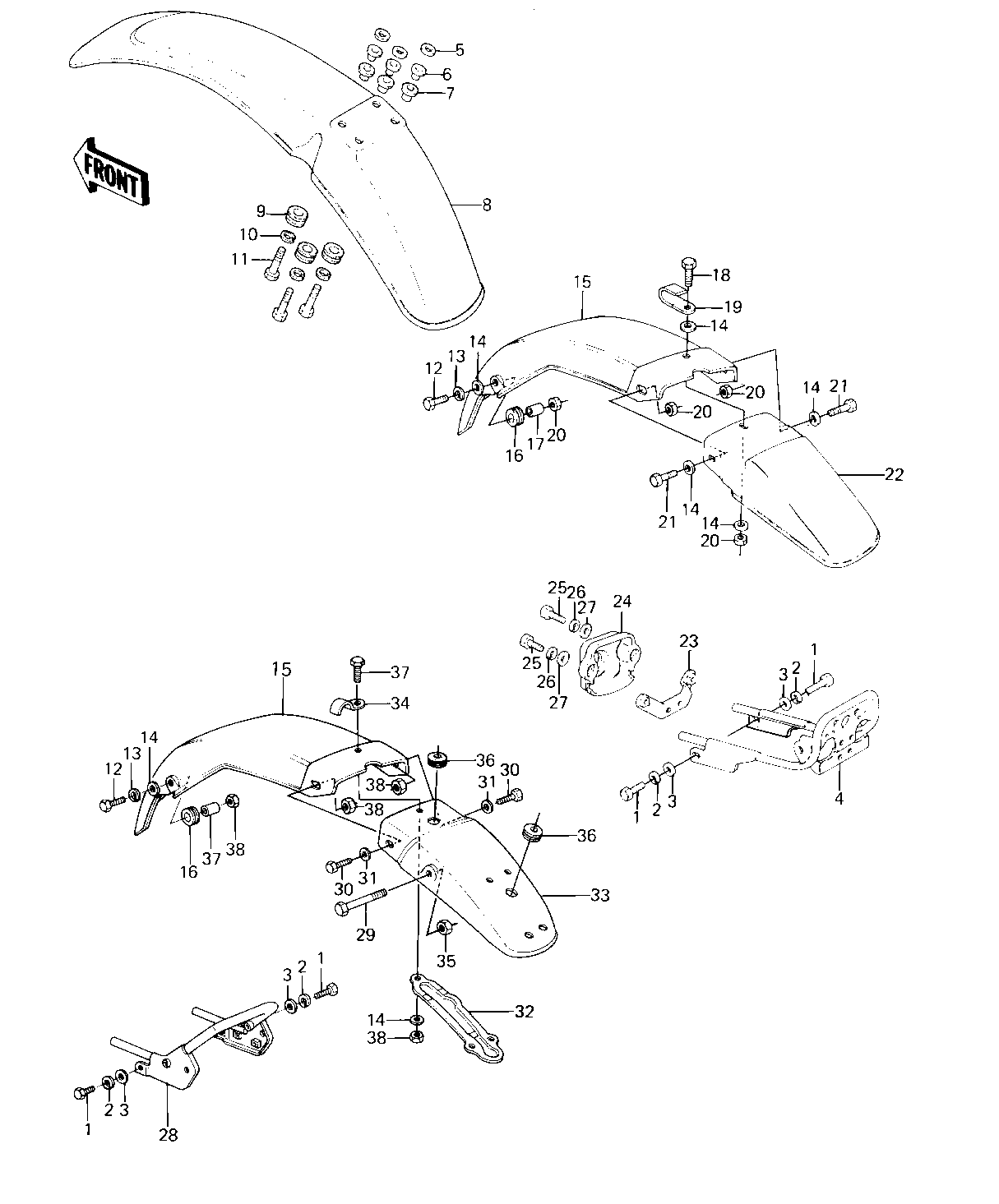

1980 KE125 - FENDERS ('80-'81 A7/A8)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X16 1 115G0816 2
WASHER SPRING 8MM 2 461F0800 2
WASHER PLAIN 8MM 3 410B0800 2
STAY,REAR 4 39137-1008 1 KE125-A7
WASHER,PLAIN,7MM 5 92022-228 4
COLLAR 6 92027-194 4
DAMPER RUBBER 7 92075-103 4
FENDER-FR,F.RED 8 35004-1030-6L 1
DAMPER RUBBER,RR FEND 9 92075-121 4
WASHER SPRING 6MM 10 461F0600 4
BOLT-UPSET 11 112G0625 4
BOLT-UPSET,6X16 12 112G0616 2
WASHER SPRING 6MM 13 461F0600 2
WASHER 6.5X20X1.6T 14 92022-125 6 KE125-A7
WASHER 6.5X20X1.6T 14 92022-125 3 KE125-A8
FENDER-RR 15 35022-100 1
DAMPER RUBBER 16 92075-105 2
COLLAR 17 92027-103 2
BOLT-UPSET,6X16 18 112G0616 1 KE125-A7
CLAMP,WIRING HARNESS 19 92037-1069 1 KE125-A7
NUT 20 92019-008 5 KE125-A7
BOLT-UPSET,6X20 21 112G0620 2 KE125-A7
FENDER-RR,F.RED 22 35022-1053-6L 1 KE125-A7
BRACKET,TAIL LAMP 23 11034-1740 1 KE125-A7
COVER,TAIL LAMP 24 14025-1169 1 KE125-A7
BOLT-UPSET 6X14 25 112B0614 2 KE125-A7
WASHER SPRING 6MM 26 461F0600 2 KE125-A7
WASHER 6.5X20X1.6T 27 92022-125 2 KE125-A7
STAY-COMP,RR 28 39137-1011 1 KE125-A8
BOLT-SMALL-UPSET 29 115G0845 2 KE125-A8
BOLT-UPSET 30 112G0618 2 KE125-A8
WASHER PLAIN 6MM 31 411B0600 2 KE125-A8
GUSSET,REAR FENDER 32 35021-005 1 KE125-A8
FENDER-RR,RED 33 35022-1083-B1 1 KE125-A8
CLIP WIRING HARNESS 34 35024-002 2 KE125-A8
NUT,LOCK,8MM 35 92015-1124 2 KE125-A8
GROMMET,TL LMP WIRE 36 92071-079 2 KE125-A8
BOLT-UPSET 6X14 37 112B0614 1 KE125-A8
NUT 38 92019-008 5 KE125-A8
