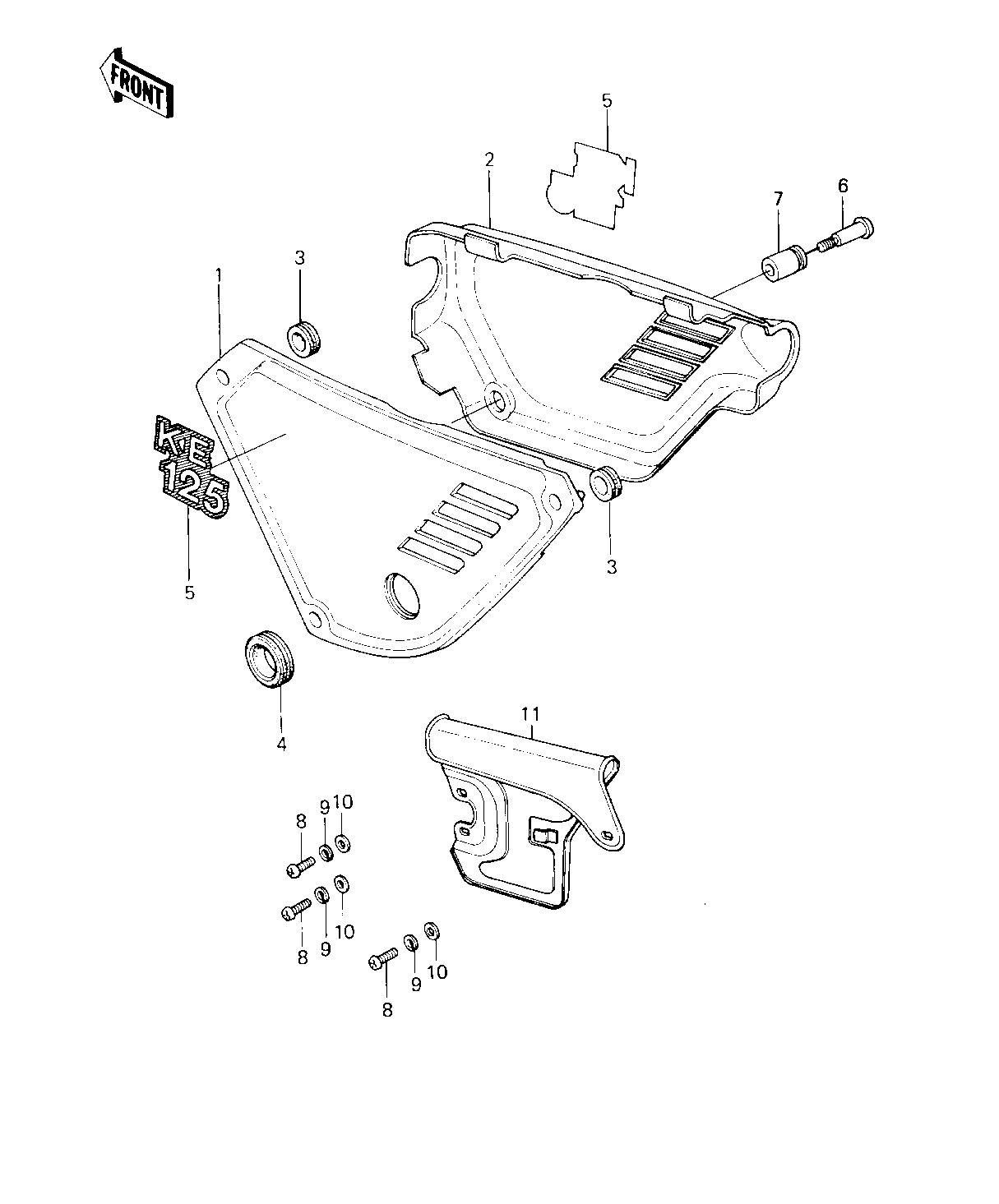

1980 KE125 - SIDE COVERS/CHAIN COVER ('80-'81 A7/A8)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE,L.H,F.RED 1 36001-1080-6L 1
COVER,SIDE,R.H,F.RED 2 36001-1094-6L 1
GROMMET 3 92071-056 3
GROMMET,L.H SIDE COV 4 92071-080 1
MARK,SIDE COVER 5 56018-1036 2
SCREW PLUG 6 92009-1001 1
SCREW,SIDE COVER 6 92009-1091 1
GROMMET,SIDE COVER 7 92071-1001 1
SCREW PAN HEAD 6X14 8 220B0614 3
WASHER SPRING 6MM 9 461F0600 3
WASHER PLAIN 10 92022-024 3
CASE-CHAIN,FR BLACK 11 36014-051-21 1
