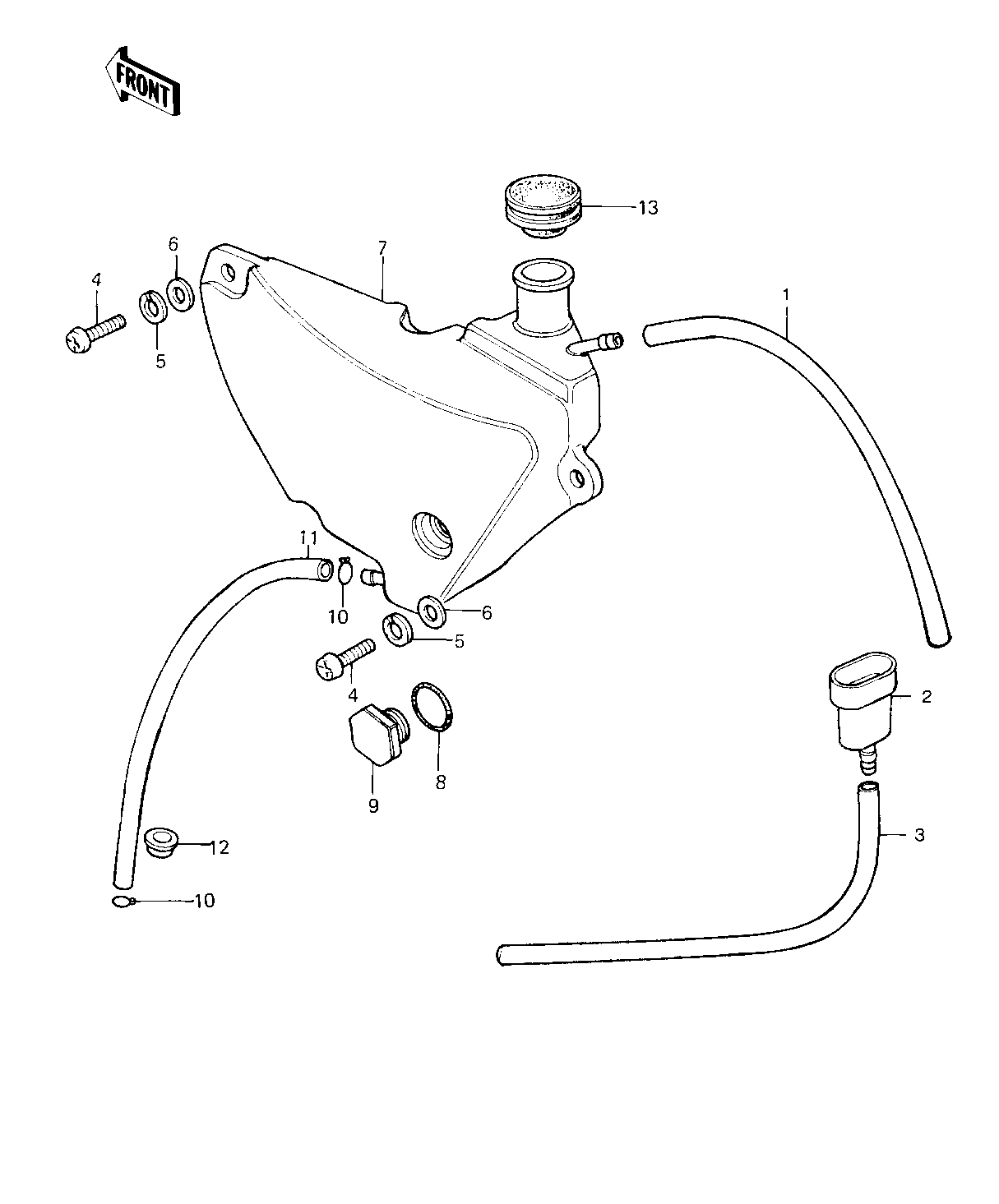

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TUBE-VINYL,5X400 1 700Q05400 1
CONNECTOR PIPE 2 92059-101 1
700Q07450 (Canada) 3 700Q07550 1
SCREW PAN HEAD 6X14 4 220B0614 3
WASHER SPRING 6MM 5 461F0600 3
WASHER 6.5X20X1.6T 6 92022-125 3
TANK,OIL 7 52001-041 1
"O" RING,20MM 8 92055-051 1
GUAGE-OIL LEVEL 9 52015-002 1
CLAMP FUEL PIPE 10 92037-010 2
PIPE,OIL 11 92059-106 1
GROMMET,OIL PIPE 12 92071-085 1
CAP-OIL TANK 13 51049-1004 1
