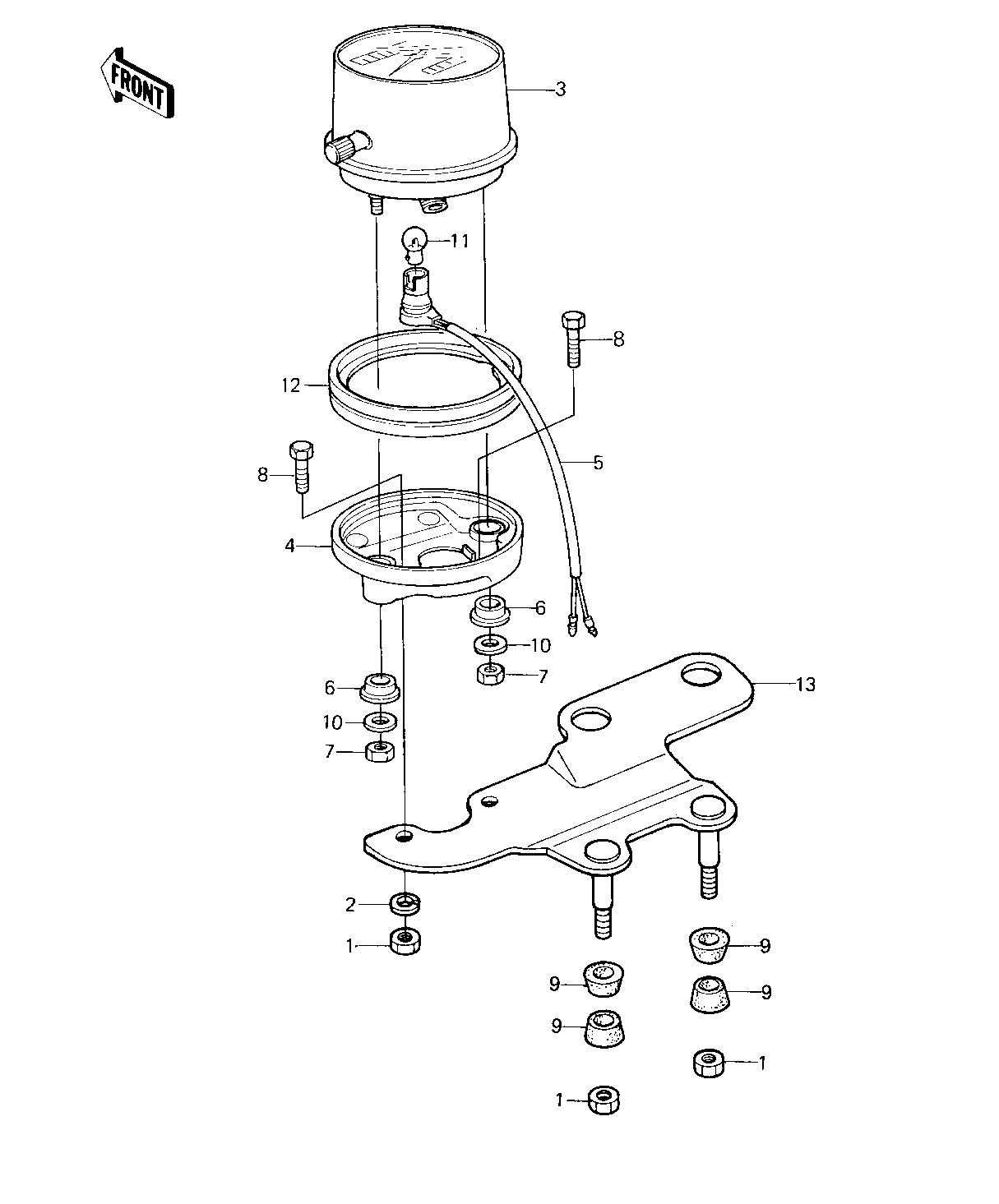

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT 6MM 1 311B0600 4
WASHER SPRING 6MM 2 461F0600 2
SPEEDOMETER,KM/H&MPH 3 25005-1049 1
SPEEDOMETER,KM/H (Canada) 3 25005-1074 1
COVER,METER 4 14025-1075 1
SOCKET ASSY,SPEEDOMET 5 25010-021 1
DAMPER RUBBER,MET FIT 6 25019-023 2
NUT,5MM 7 311B0500 2
BOLT,HEX HEAD,6X14 8 92003-204 2
DAMPER RUBBER,METER 9 92075-248 4
WASHER,PLAIN,6MM 10 92022-263 2
BULB-6V 3W 11 92069-053 1
DAMPER,METER 12 92075-1102 1
BRACKET,METER 13 25008-1025 1
