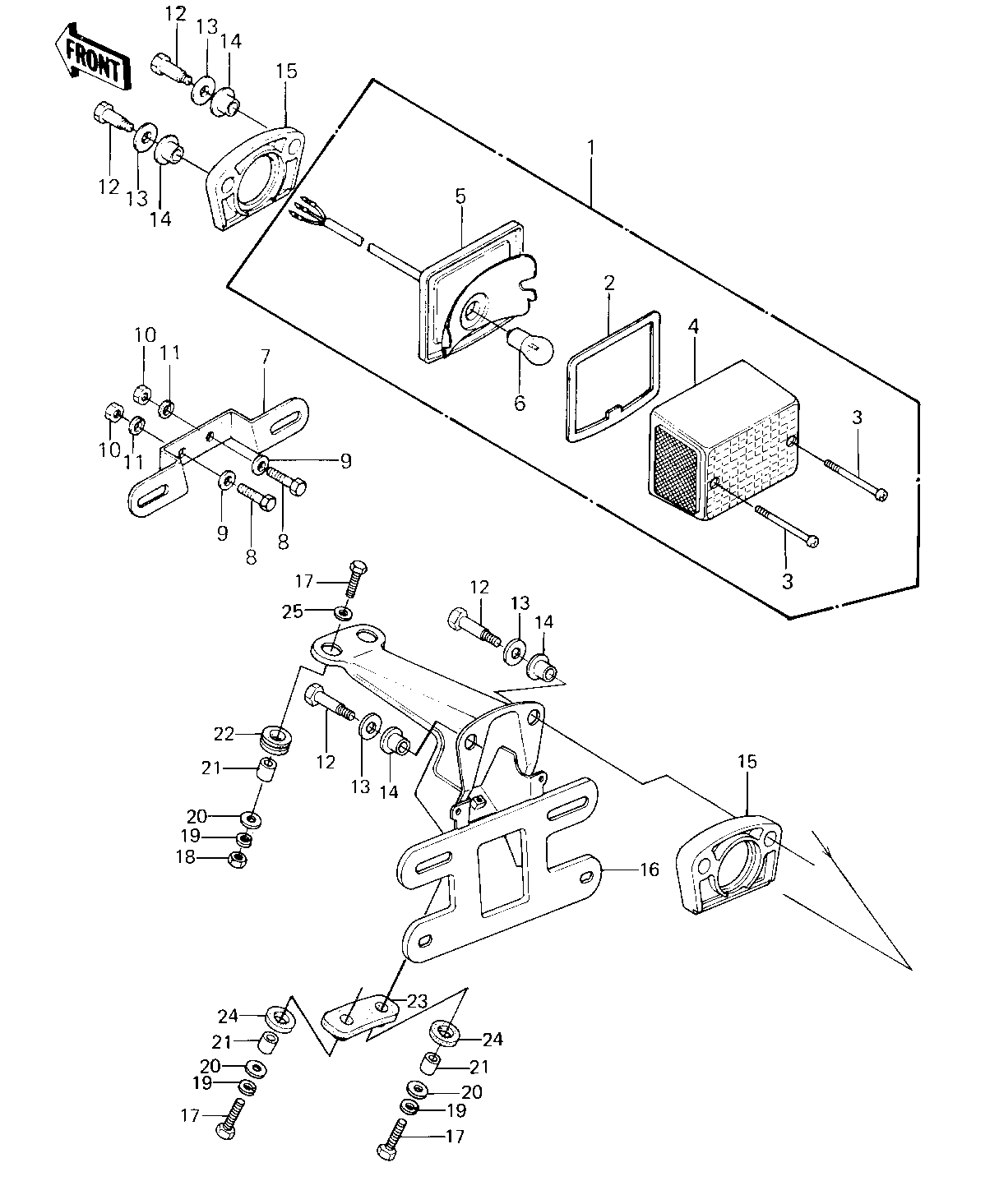

1980 KE125 - TAILLIGHT ('80-'81 A7/A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP ASSY TAIL | 1 | 23025-1016 | 1 | KE125-A7 | |
| LAMP-TAIL | 1 | 23025-1032 | 1 | KE125-A8 | |
| GASKET,TAIL LAMP LENS | 2 | 11009-1078 | 1 | ||
| SCREW, PAN HEAD 4X40 | 3 | 220R0440A | 2 | ||
| LENS,TAIL LAMP | 4 | 23026-1003 | 1 | ||
| BODY-COMP-TAIL LAMP | 5 | 23027-1021 | 1 | KE125-A7 | |
| CASE,TAIL LAMP | 5 | 23027-1020 | 1 | KE125-A8 | |
| BULB,60-32/3CP | 6 | 92069-074 | 1 | ||
| BRACKET,LICENSE | 7 | 11034-1626 | 1 | KE125-A7 | |
| BOLT-UPSET,6X12 | 8 | 112G0612 | 2 | KE125-A7 | |
| WASHER PLAIN 6MM | 9 | 411B0600 | 2 | KE125-A7 | |
| NUT 6MM | 10 | 311B0600 | 2 | KE125-A7 | |
| WASHER SPRING 6MM | 11 | 461F0600 | 2 | KE125-A7 | |
| BOLT HEX HEAD | 12 | 92001-1118 | 2 | ||
| WASHER,8.5X20X1.6 | 13 | 92022-1561 | 2 | ||
| DAMPER RUBBER | 14 | 92075-1095 | 2 | ||
| DAMPER RUBBER,TL LAMP | 15 | 92075-1094 | 1 | ||
| BRACKET-TAIL LAMP | 16 | 23036-1038 | 1 | KE125-A8 | |
| BOLT-UPSET | 17 | 112G0625 | 4 | KE125-A8 | |
| NUT 6MM | 18 | 311B0600 | 2 | KE125-A8 | |
| WASHER SPRING 6MM | 19 | 461F0600 | 4 | KE125-A8 | |
| WASHER PLAIN 6MM | 20 | 411B0600 | 4 | KE125-A8 | |
| COLLAR,REAR FENDER | 21 | 92027-162 | 4 | KE125-A8 | |
| DAMPER RUBBER,RR FENR | 22 | 92075-209 | 2 | KE125-A8 | |
| DAMPER,RR FENDER | 23 | 92075-1305 | 1 | KE125-A8 | |
| DAMPER RUBBER,SIGNAL | 24 | 92075-310 | 2 | KE125-A8 | |
| WASHER 6.5X22X1.6T | 25 | 92022-237 | 2 |
