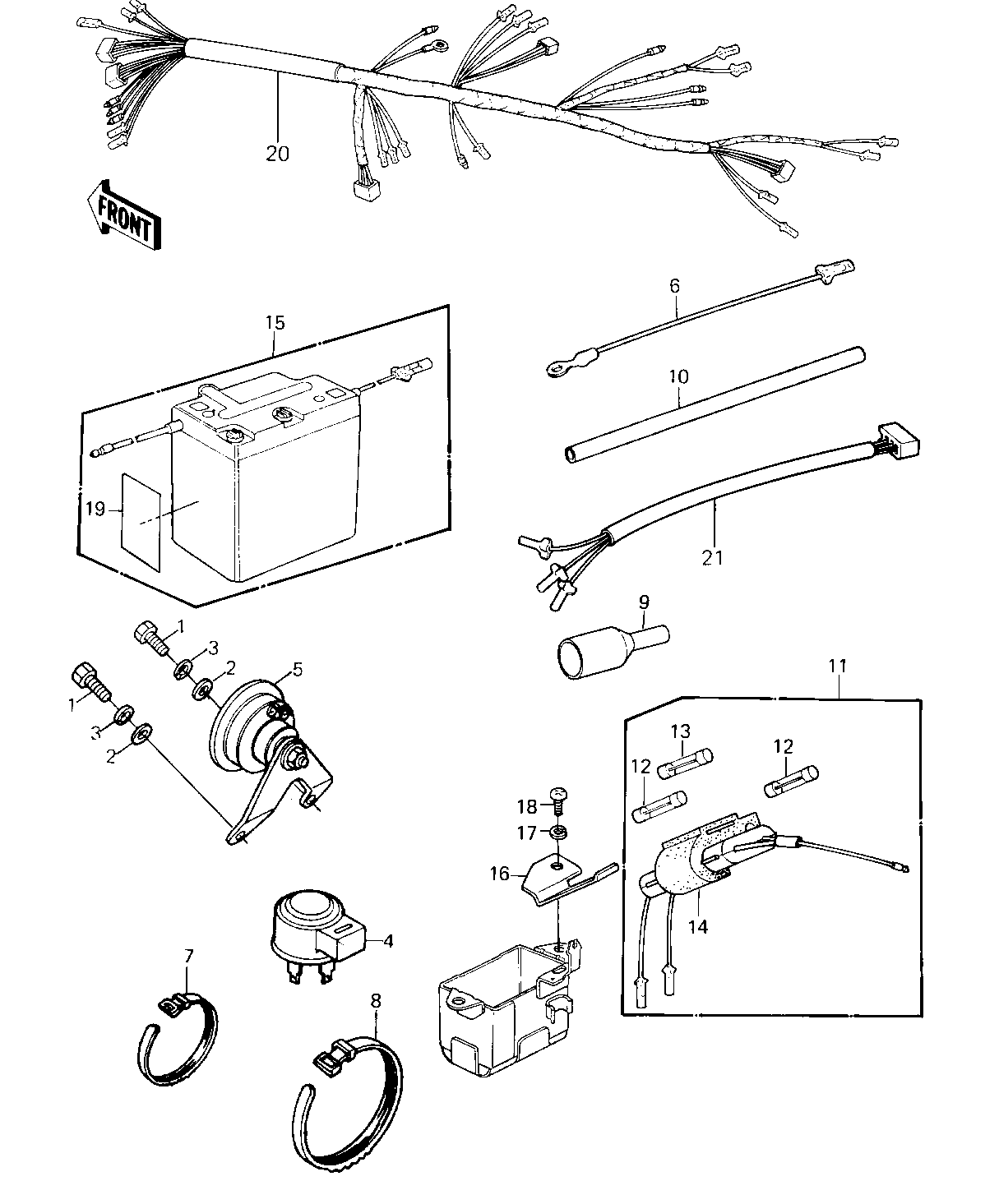

1980 KE125 - CHASSIS ELECTRICAL EQUIPMENT ('80-'81 A7
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X16 | 1 | 112G0616 | 2 | ||
| WASHER PLAIN 6MM | 2 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 3 | 461F0600 | 2 | ||
| RELAY-TURN SIGNAL | 4 | 27002-013 | 1 | ||
| HORN | 5 | 27003-1008 | 1 | ||
| WIRE,LEAD | 6 | 26011-093 | 1 | ||
| BAND,SHORT | 7 | 92072-030 | 7 | KE125-A7 | |
| BAND,SHORT | 7 | 92072-030 | 6 | KE125-A8 | |
| BAND,LONG | 8 | 92072-032 | 4 | KE125-A7 | |
| BAND,LONG | 8 | 92072-032 | 3 | KE125-A8 | |
| COVER,REAR HARNESS | 9 | 14025-1183 | 1 | KE125-A7 | |
| TUBE,6X7X380 | 10 | 92059-1143 | 2 | ||
| FUSE ASSY | 11 | 26004-1010 | 1 | ||
| FUSE,15A,L=30M/M | 12 | 26006-1003 | 2 | ||
| FUSE,10A,L=30M/M | 13 | 26006-1002 | 1 | ||
| DAMPER RUBBER | 14 | 92075-1044 | 1 | ||
| YUA BAT 6N6-1D-2 | 15 | K26012-034 | 1 | ||
| BRACKET,FUSE | 16 | 11034-1368 | 1 | ||
| WASHER SPRING 5MM | 17 | 461F0500 | 1 | ||
| SCREW PAN HEAD 5X10 | 18 | 220B0510 | 1 | ||
| LABEL-WARNING,BATTERY | 19 | 56040-1036 | 1 | ||
| WIRING HARNESS,MAIN | 20 | 26001-1133 | 1 | KE125-A7 | |
| WIRING HARNESS,MAIN | 20 | 26001-1161 | 1 | KE125-A7 | |
| HARNESS,MAIN | 20 | 26001-1225 | 1 | KE125-A8 | |
| WIRING HARNESS,TL LMP | 21 | 26002-046 | 1 |
| BOLT-UPSET,6X16 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RELAY-TURN SIGNAL | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE,LEAD | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| BAND,SHORT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | KE125-A8 |
| BAND,LONG | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| BAND,LONG | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | KE125-A8 |
| COVER,REAR HARNESS | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| TUBE,6X7X380 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUSE ASSY | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,15A,L=30M/M | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUSE,10A,L=30M/M | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| YUA BAT 6N6-1D-2 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FUSE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X10 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,BATTERY | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,MAIN | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| WIRING HARNESS,MAIN | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A7 |
| HARNESS,MAIN | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KE125-A8 |
| WIRING HARNESS,TL LMP | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
