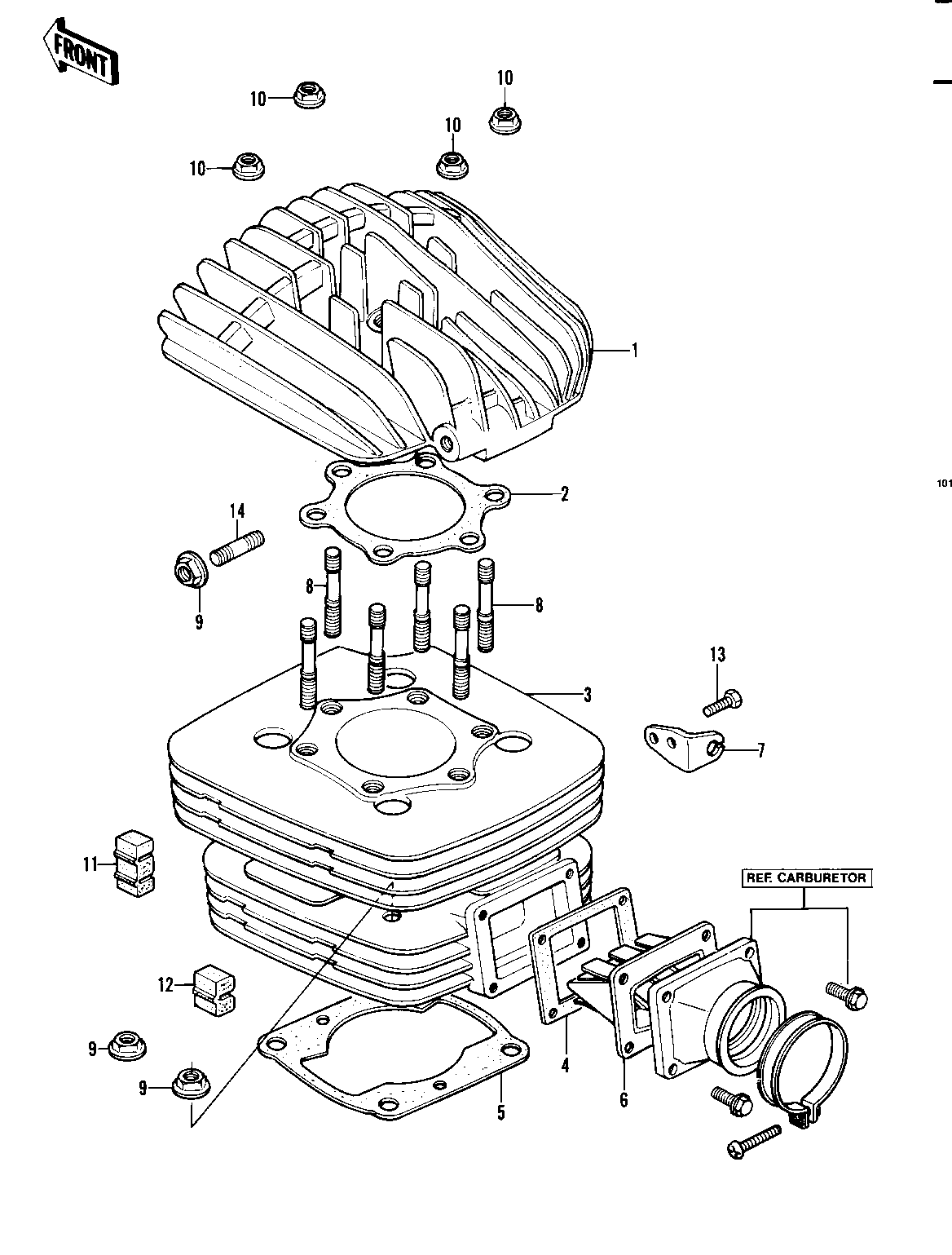

1982 KDX450 - CYLINDER HEAD/CYLINDER/REED VALVE

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD,CYLINDER,F.BLACK 1 11001-1030 1
GASKET,HEAD,CYLINDER 2 11004-1015 1
CYLINDER-ENGINE 3 11005-1149 1
GASKET,REED VALVE 4 11009-1018 1
GASKET,CYLINDER BASE 5 11009-1130 1
VALVE ASSY,REED 6 12021-1007 1
HOLDER 7 13091-1119 1
STUD,CYLINDER 8 92004-1022 6
NUT,10MM 9 92015-1415 4
NUT,8M/M 10 92015-1014 6
DAMPER,CYLINDER 11 92075-1160 6
DAMPER,CYLINDER 12 92075-1161 2
BOLT-UPSET 13 112G0618 1
STUD,10X18 14 175G1018 1
