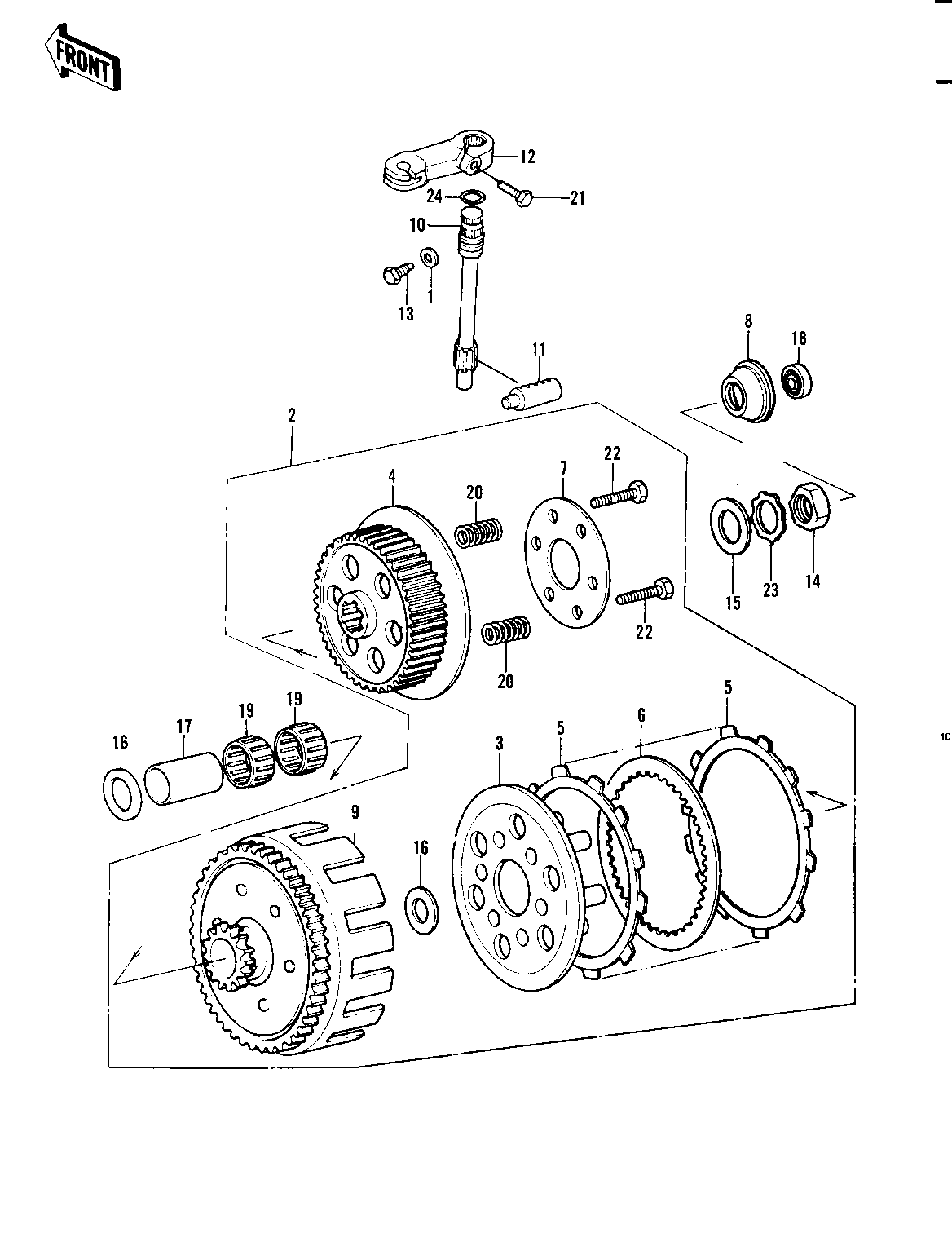

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,R.H ENG COVER 1 92065-092 1
CLUTCH-ASSY 2 13081-1027 1
WHEEL,CLUTCH 3 13086-016 1
HUB,CLUTCH 4 13087-1012 1
PLATE,CLUTCH FRICTION 5 13088-041 6
PLATE,CLUTCH STEEL 6 13089-025 5
PLATE,CLUTCH SPRING 7 13091-016 1
HOLDER,CLUTCH PUSHER 8 13091-1134 1
HOUSING,CLUTCH 9 13095-1017 1
SHAFT,CLUTCH RELEASE 10 13106-008 1
ROD,CLUTCH PUSH 11 13116-025 1
LEVER 12 13168-1102 1
BOLT,CLUTCH RELEASE 13 92003-130 1
NUT,16M/M 14 92015-1016 1
WASHER,16.8X32X1.6 15 92022-1277 1
WASHER,CLUTCH THRUST 16 92022-282 2
BUSHING,CLUT,20X25X40 17 92028-1067 1
BEARING,BALL #627 18 92045-026 1
BEARING,NEEDLE 19 92046-1003 2
SPRING,CLUTCH 20 92081-1151 6
BOLT-UPSET 21 112G0618 1
BOLT-UPSET,6X20 22 112G0620 6
WASHER,LOCK,16MM 23 464H1600 1
"0" RING, 10MM 24 670B2010 1
