Parts Diagrams |

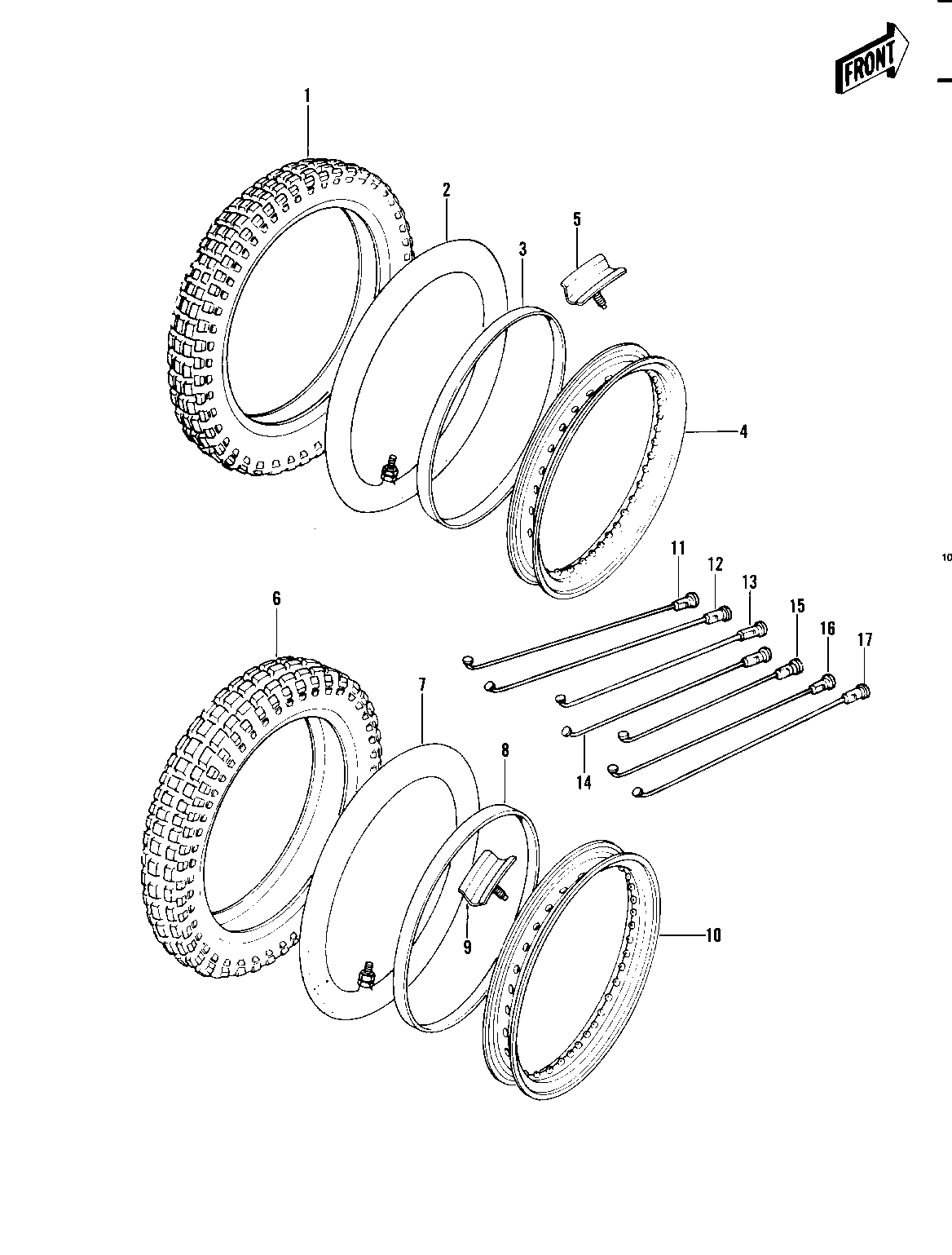

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TIRE 300-21 K390 F | 1 | 41002-4011 | 1 | DUNLOP SPORTS K390 | |
TUBE,2.75/3.70-21 | 2 | 41022-1021 | 1 | ||
BAND,RIM,4.00/5.10-18 | 3 | 41023-1006 | 1 | ||
RIM,1.60X21E | 4 | 41025-4003 | 1 | ||
PROTECTOR,BEAD 1.60A | 5 | 41024-010 | 1 | ||
TIRE 510-18 K390 R | 6 | 41002-4012 | 1 | DUNLOP SPORTS K390 | |
TUBE 450/550-18 | 7 | 41022-4009 | 1 | ||
BAND,RIM,4.00/5.10-18 | 8 | 41023-1006 | 1 | ||
PROTECTOR BEAD | 9 | 41024-009 | 1 | ||
RIM,2.50X18E | 10 | 41025-4004 | 1 | ||
SPOKE-ASY,FR INNER LH | 11 | 41027-5013 | 9 | 195.5 MM X 102 | |
SPOKE-ASY,FR RH | 12 | 41027-5014 | 18 | 221.5 MM X 132 | |
SPOKE-ASY,FR OUTER LH | 13 | 41028-5012 | 9 | 194.5 MM X 83 | |
SPOKE-ASY,RR INNER LH | 14 | 41027-5030 | 9 | 181.5 MM X 122 | |
SPOKE-ASY,RR INNER RH | 15 | 41027-5031 | 9 | 162 MM X 102 | |
SPOKE-ASY,RR OUTER LH | 16 | 41028-5027 | 9 | 178.5 MM X 129 | |
SPOKE-ASY,RR OUTER RH | 17 | 41028-5028 | 9 | 159 MM X 72 |
TIRE 300-21 K390 F | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | DUNLOP SPORTS K390 |
TUBE,2.75/3.70-21 | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,RIM,4.00/5.10-18 | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,1.60X21E | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PROTECTOR,BEAD 1.60A | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE 510-18 K390 R | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | DUNLOP SPORTS K390 |
TUBE 450/550-18 | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,RIM,4.00/5.10-18 | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PROTECTOR BEAD | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,2.50X18E | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPOKE-ASY,FR INNER LH | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS | 195.5 MM X 102 |
SPOKE-ASY,FR RH | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 18 |
DESTINATION | |
REMARKS | 221.5 MM X 132 |
SPOKE-ASY,FR OUTER LH | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS | 194.5 MM X 83 |
SPOKE-ASY,RR INNER LH | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS | 181.5 MM X 122 |
SPOKE-ASY,RR INNER RH | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS | 162 MM X 102 |
SPOKE-ASY,RR OUTER LH | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS | 178.5 MM X 129 |
SPOKE-ASY,RR OUTER RH | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS | 159 MM X 72 |
