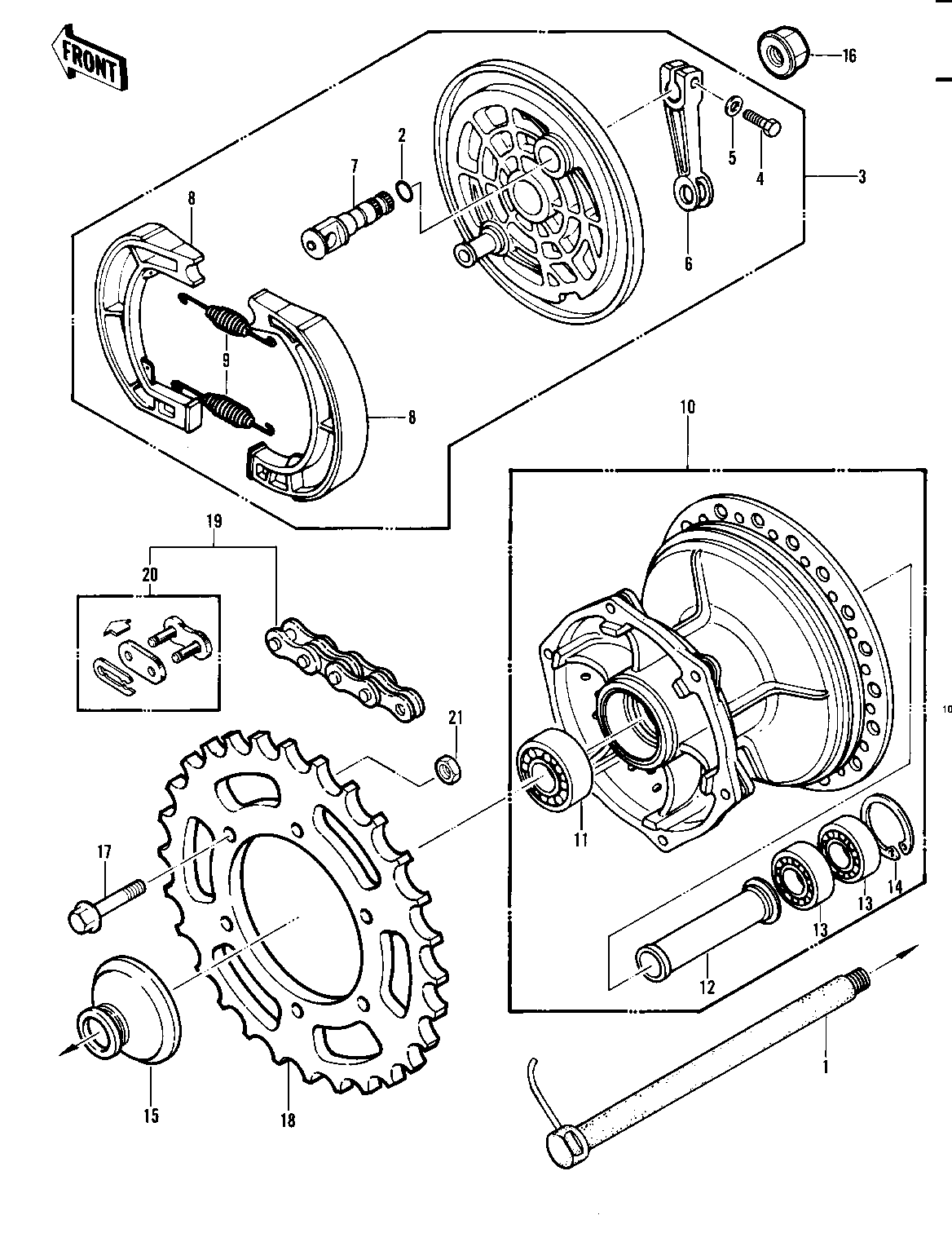

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE,REAR | 1 | 41068-4002 | 1 | ||
| "O" RING,15MM | 2 | 670B2015 | 1 | ||
| PANEL-ASY,RR BRK | 3 | 41035-1047 | 1 | ||
| BOLT-UPSET | 4 | 112G0622 | 1 | ||
| WASHER PLAIN 6MM | 5 | 410B0600 | 1 | ||
| LEVER BRAKE CAM | 6 | 41053-1022 | 1 | ||
| CAME-BRAKE | 7 | 41050-1018 | 1 | ||
| SHOE-BRAKE | 8 | 41048-1018 | 2 | ||
| SPRING-BRAKE SHOE | 9 | 42020-004 | 2 | ||
| DRUM-ASSY,RR BRK | 10 | 41034-1019 | 1 | ||
| BEARING,BALL,6204UUC3 | 11 | 601B6204UU | 1 | ||
| COLLAR,REAR BRAKE | 12 | 92027-1207 | 1 | ||
| BEARING-BALL,#6003UC3 | 13 | 601B6003U | 2 | ||
| CIRCLIP,35MM | 14 | 481J3500 | 1 | ||
| COLLAR | 15 | 92027-4013 | 1 | L.H. | |
| NUT,16M/M | 16 | 92015-1015 | 1 | ||
| BOLT,HEX HEAD,8X36 | 17 | 92001-1041 | 6 | ||
| REAR SPROCKET,50T STD | 18 | 42041-1006 | 1 | STD | |
| REAR SPROCKET,48T | 18 | 42041-1022 | (1 | OPTION | |
| REAR,SPROCKET,52T | 18 | 42041-1008 | (1 | OPTION | |
| CHAIN-DRIVE | 19 | 92057-4009 | 1 | ||
| JOINT-CHAIN | 20 | 92058-4001 | 1 | ||
| NUT,8MM | 21 | 92015-1134 | 6 |
