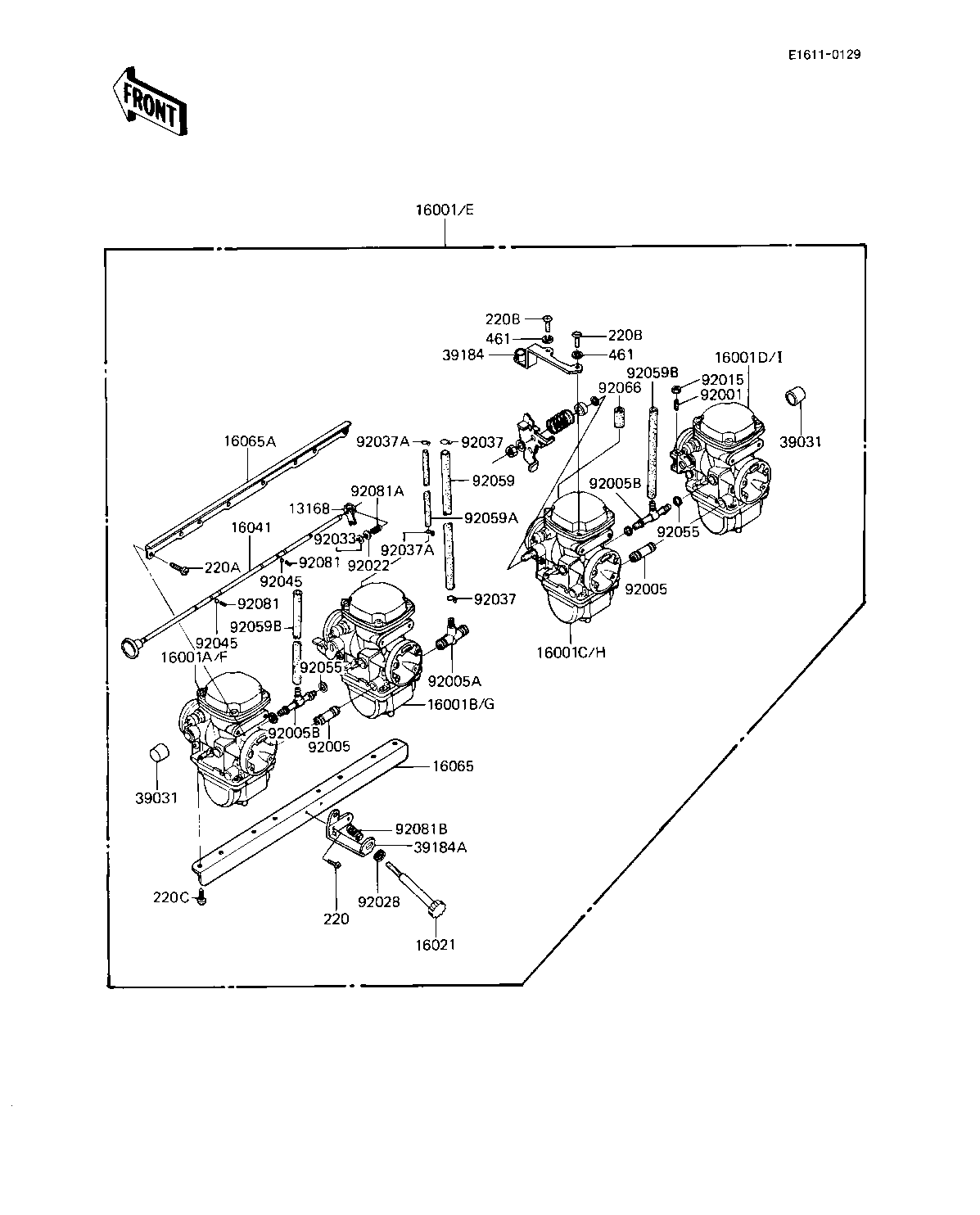

1983 Eddie Lawson Replica - CARBURETOR ASSY (KZ1000-R2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,CHOCK | 13168 | 13168-1091 | 4 | ||
| CARBURETOR | 16001 | 16001-1890 | 1 | US | |
| CARBURETOR,LH,OUTSIDE | 16001A | 16001-1891 | 1 | US | |
| CARBURETOR,LH,INSIDE | 16001B | 16001-1892 | 1 | ||
| CARBURETOR,RH,INSIDE | 16001C | 16001-1893 | 1 | US | |
| CARBURETOR,RH,OUTSIDE | 16001D | 16001-1894 | 1 | US | |
| CARBURETOR (Canada) | 16001E | 16001-1895 | 1 | CN | |
| CARBURETOR,LH,OUTSIDE (Canada) | 16001F | 16001-1896 | 1 | CN | |
| CARBURETOR,LH,INSIDE (Canada) | 16001G | 16001-1897 | 1 | CN | |
| CARBURETOR,RH,INSIDE (Canada) | 16001H | 16001-1898 | 1 | CN | |
| CARBURETOR,RH,OUTSIDE (Canada) | 16001I | 16001-1899 | 1 | CN | |
| SCREW-THROTTLE STOP | 16021 | 16021-1035 | 1 | ||
| SHAFT-CARBURETOR,CHOC | 16041 | 16041-1024 | 1 | ||
| HOLDER-CARBURETOR,LWR | 16065 | 16065-1043 | 1 | ||
| HOLDER-CARBURETOR,UPP | 16065A | 16065-1044 | 1 | ||
| CAP-END,CARBURETOR | 39031 | 39031-1007 | 2 | ||
| BRACKET-ASSY,THROTTLE | 39184 | 39184-1006 | 1 | ||
| BRACKET-ASSY,IDLING A | 39184A | 39184-1007 | 1 | ||
| BOLT,ADJUSTING | 92001 | 92001-1447 | 3 | ||
| FITTING,FUEL | 92005 | 92005-1035 | 2 | ||
| FITTING,FUEL | 92005A | 92005-1036 | 1 | ||
| FITTING,AIR VENT | 92005B | 92005-1045 | 2 | ||
| NUT,THROTTLE VLV ADST | 92015 | 92015-1119 | 3 | ||
| WASHER,SPRING | 92022 | 92022-1255 | 4 | ||
| BUSHING | 92028 | 92028-1071 | 1 | ||
| RING-SNAP,E | 92033 | 92033-1066 | 4 | ||
| CLAMP,HOSE | 92037 | 92037-1184 | 2 | ||
| CLAMP,BREATHER HOSE | 92037A | 92037-174 | 2 | ||
| BALL,STEEL,1/8" | 92045 | 600A0400 | 2 | ||
| "0" RING | 92055 | 92055-510 | 4 | ||
| TUBE,7.5X12.5X250 | 92059 | 92059-1187 | 1 | ||
| TUBE,5X9X150 | 92059A | 92059-1188 | 1 | ||
| TUBE,6.5X9.5X400 | 92059B | 92059-1222 | 2 | ||
| RUBBER PLUG | 92066 | 92068-006 | 1 | US | |
| RUBBER PLUG | 92066 | 92068-006 | 3 | US | |
| SPRING,FAST IDLE SHFT | 92081 | 92081-1260 | 2 | ||
| SPRING,CHOCK SHAFT | 92081A | 92081-1364 | 4 | ||
| SPRING,IDLING ADJUST | 92081B | 92081-1377 | 1 | ||
| SCREW PAN HEAD 5X8 | 220 | 220B0508 | 1 | ||
| SCREW-PAN-CROS | 220A | 220C0510 | 8 | ||
| SCREW-PAN-CROS,5X18,B | 220B | 220C0518A | 2 | ||
| SCREW-PAN-CROS, 6X14 | 220C | 220C0614 | 8 | ||
| WASHER-SPRING,5MM,BLA | 461 | 461K0500 | 2 |
