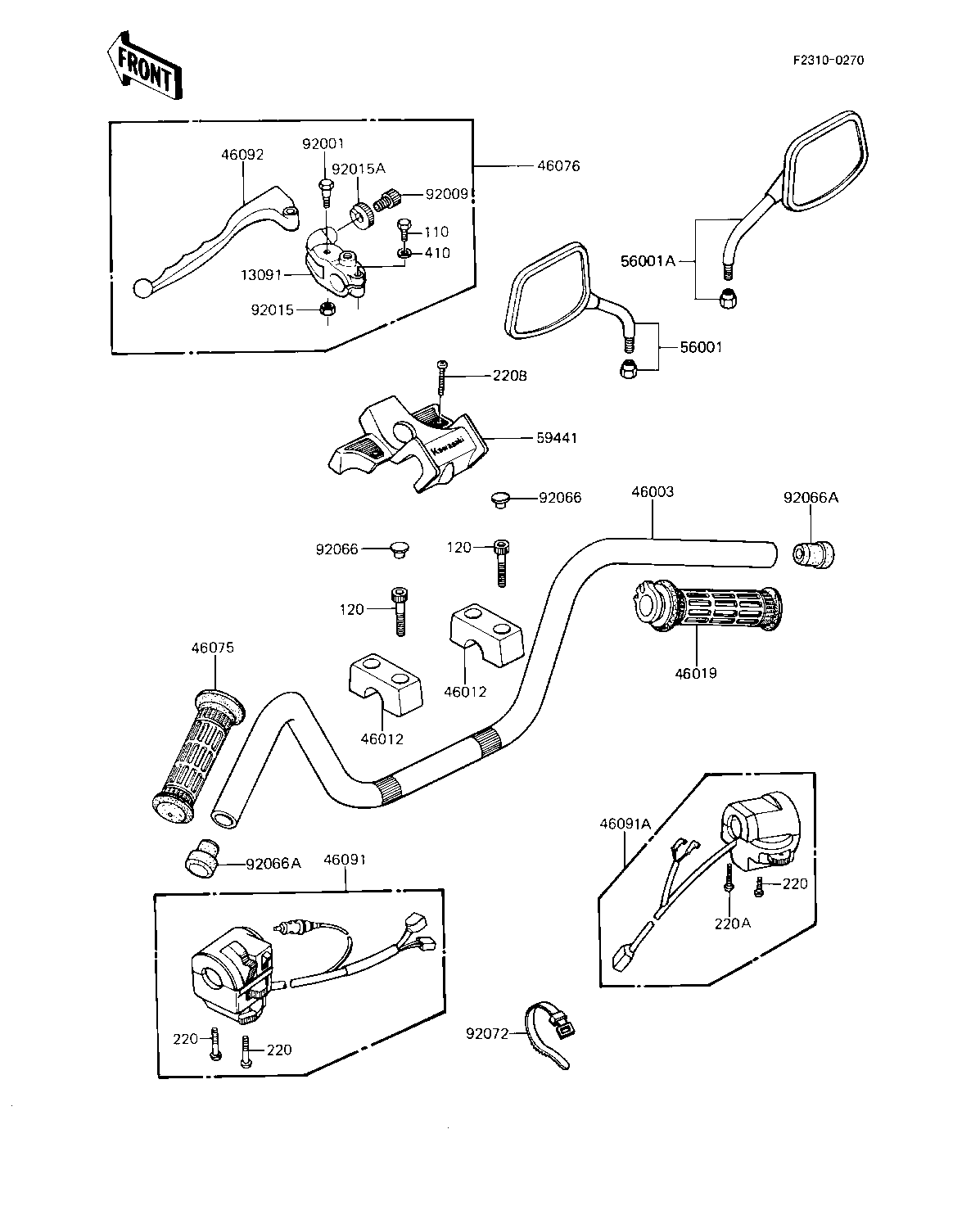

1983 Eddie Lawson Replica - HANDLEBAR (KZ1000-R2)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CLUTCH LEVER 13091 13091-1046 1
HANDLEBAR 46003 46003-1107 1
HOLDER-HANDLE 46012 46012-1027 2
GRIP-ASSY,THROTTLE 46019 46019-1021 1
GRIP,LH 46075 46075-1028 1
LEVER-ASSY-GRIP,CLUTC 46076 46076-1026 1
HOUSING-ASSY-CNTRL,LH 46091 46091-1180 1
HOUSING-ASSY-CONTROL, 46091A 46091-1238 1
LEVER-GRIP,CLUTCH 46092 46092-1024 1
MIRROR-ASSY,LH 56001 56001-1352 1
MIRROR-ASSY,RH 56001A 56001-1353 1
COVER-HANDLE 59441 59441-1011 1
BOLT,CLUTCH LEVER,BLA 92001 92001-1548 1
SCREW,CABLE ADJUST,8 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK 92015A 92015-1197 1
PLUG,HANDLE HOLDER 92066 92066-1216 4
PLUG,HANDLE END 92066A 92066-1113 2
BAND,SHORT 92072 92072-030 4
BOLT,6X22,BLACK 110 110C0622 1
BOLT-SOCKET,8X30,BLAC 120 120S0830 4
SCREW-PAN-CROS 220 220B0535 3
SCREW-PAN-CROS 220A 220B0540 1
SCREW-PAN-CROS 220B 220C0416 2
WASHER PLAIN 410 410F0600 1
