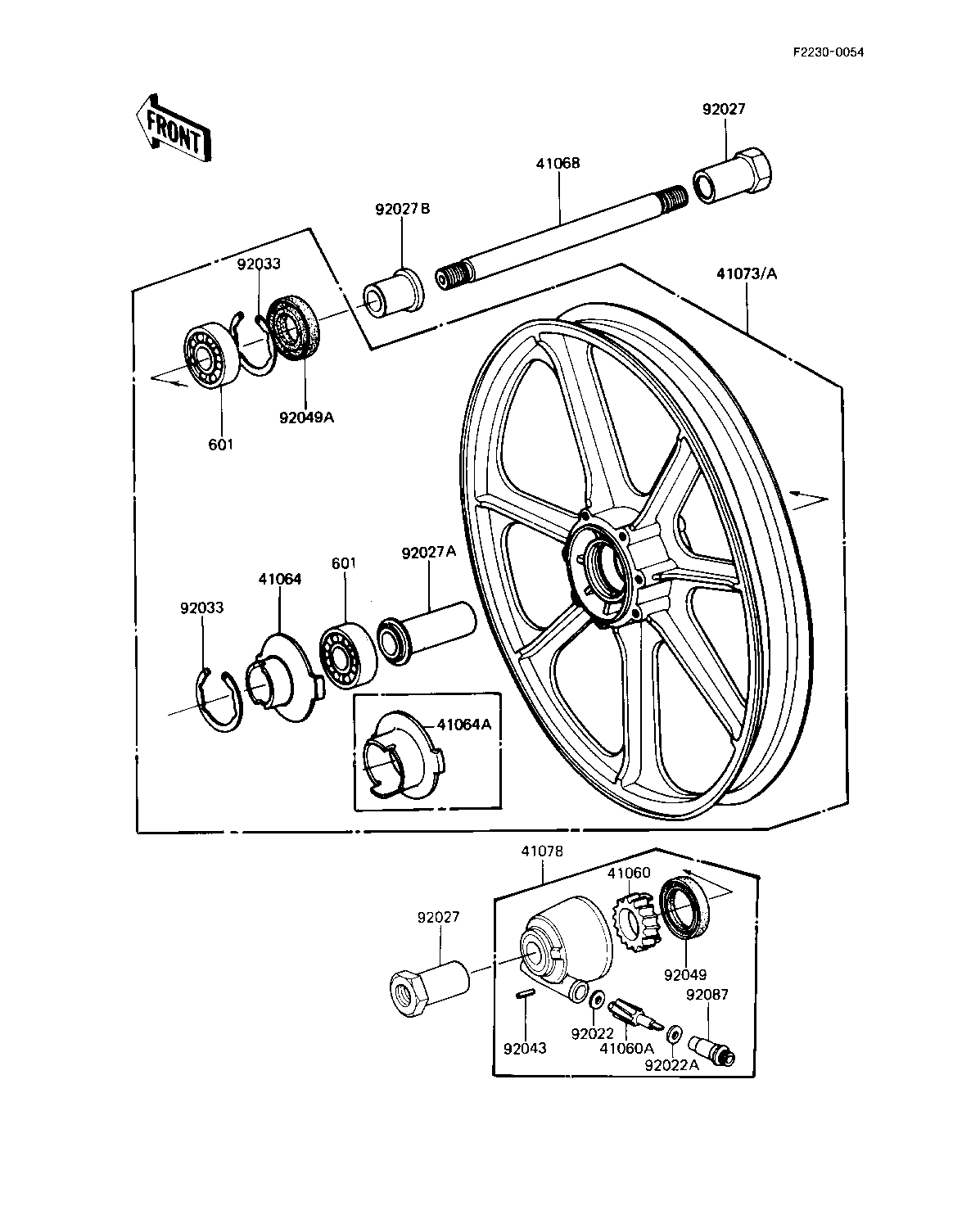

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR,SPEEDOMETER 41060 41059-026 1
PINION,SPEEDOMETER,9T 41060A 41060-1016 1
RECEIVER,SPEEDOMETER 41064 41064-1006 1
AXLE,FRONT 41068 41068-1031 1
WHEEL-ASSY,FR,SOLID,M 41073 41073-1139-F6 1
CASE-ASSY-METER GEAR, 41078 41078-1024 1
WASHER THRST SPD PINI 92022 41063-001 1
WASHER THRST SPD PINI 92022A 41063-001 1
COLLAR,FRONT AXLE 92027 41069-031 2
COLLAR,FR HUB L=55M/M 92027A 92027-1223 1
COLLAR,FR AXLE L=30MM 92027B 92027-1225 1
CIRCLIP,42MM 92033 92033-1041 2
PIN,SPRING 92043 41082-001 1
OIL SEAL,BJN30427-C3 92049 92049-1057 1
OIL SEAL,AG1144AO 92049A 92049-1058 1
BUSHING,METER GEAR 92087 92087-1002 1
BEARING BALL #6302Z 601 601B6302Z 2
