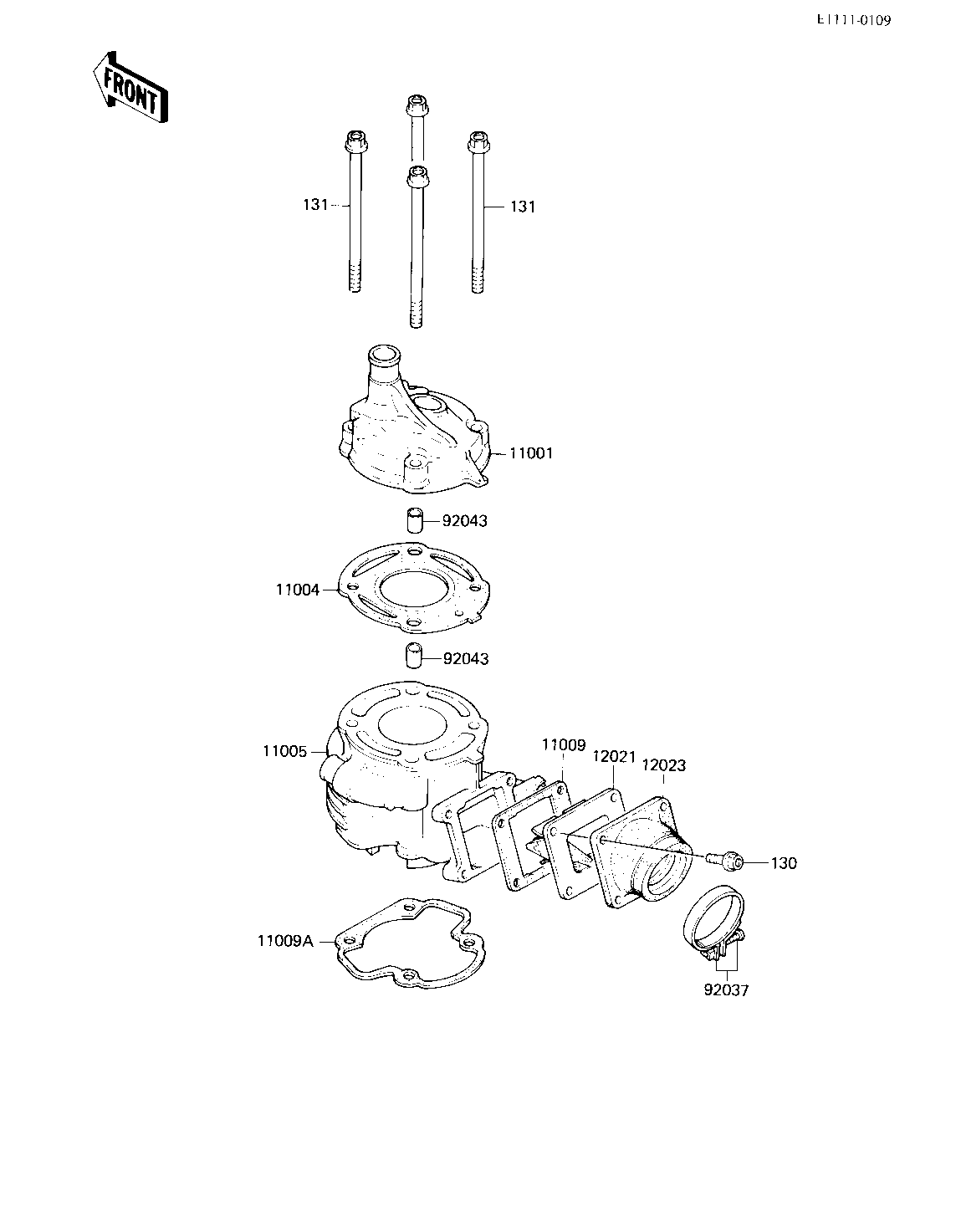

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD CYLINDER 11001 11001-1144 1
GASKET-HEAD,CYLINDER 11004 11004-1058 1
CYLINDER-ENGINE,ELECT 11005 11005-1214 1
GASKET,REED VALVE 11009 11009-1109 1
GASKET,CYLINDER BASE 11009A 11009-1975 1
VALVE-ASSY-REED 12021 12021-1020 1
HOLDER-VALVE-REED 12023 12023-1020 1
CLAMP 92037 92037-1172 1
PIN,DOWEL,10X8.2X14 92043 92043-1037 2
BOLT,FLANGED,6X20 130 130G0620 4
BOLT,8X120 131 92002-1332 4
