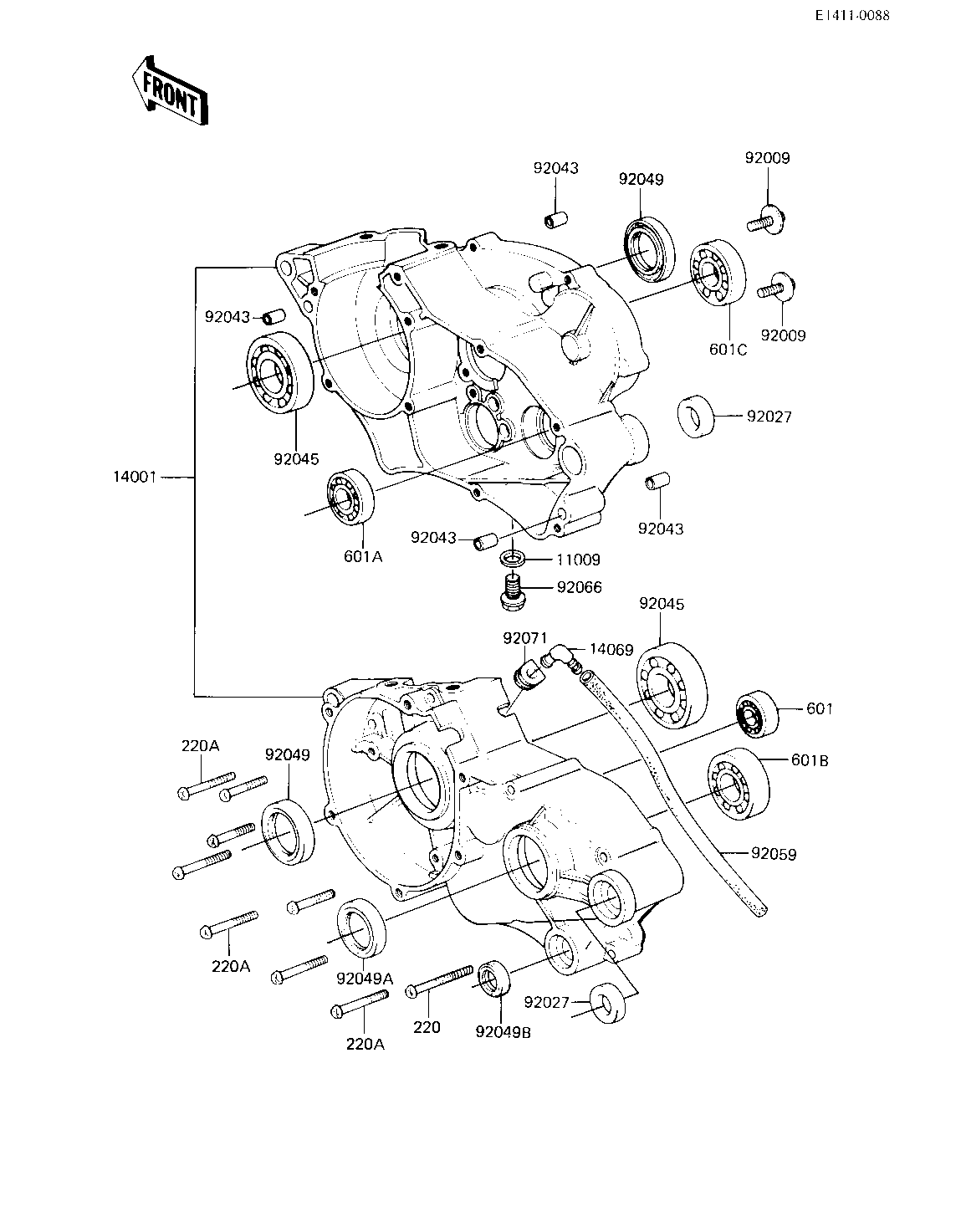

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET CHECK VALVE 11009 92065-058 1
SET-CRANKCASE 14001 14001-5159 1
BREATHER ASSY 14069 14069-1001 1
SCREW 92009 92009-1103 2
COLLAR,12.1X26X6 92027 92027-1423 2
PIN-DOWEL 92043 92042-007 4
BEARING-BALL,R-6304C3 92045 92045-1059 2
OIL SEAL,TBJ-20407 92049 92049-1065 2
OIL SEAL SC25376 92049A 92050-013 1
OIL SEAL,TB13225.5 92049B 92051-005 1
TUBE,6X9X750 92059 92059-1372 1
PLUG 92066 92066-1241 1
GROMMET 92071 92071-042 1
SCREW PAN HEAD 6X60 220 220B0660 1
SCREW-PAN-CROS,6X35,B 220A 220C0635 8
BEARING-BALL 601 92045-1235 1
BEARING BALL #6002 601A 601B6002 1
BEARING BALL #6004 601B 601B6004 1
BEARING BALL #6203 601C 601B6203 1
