Part Item Information

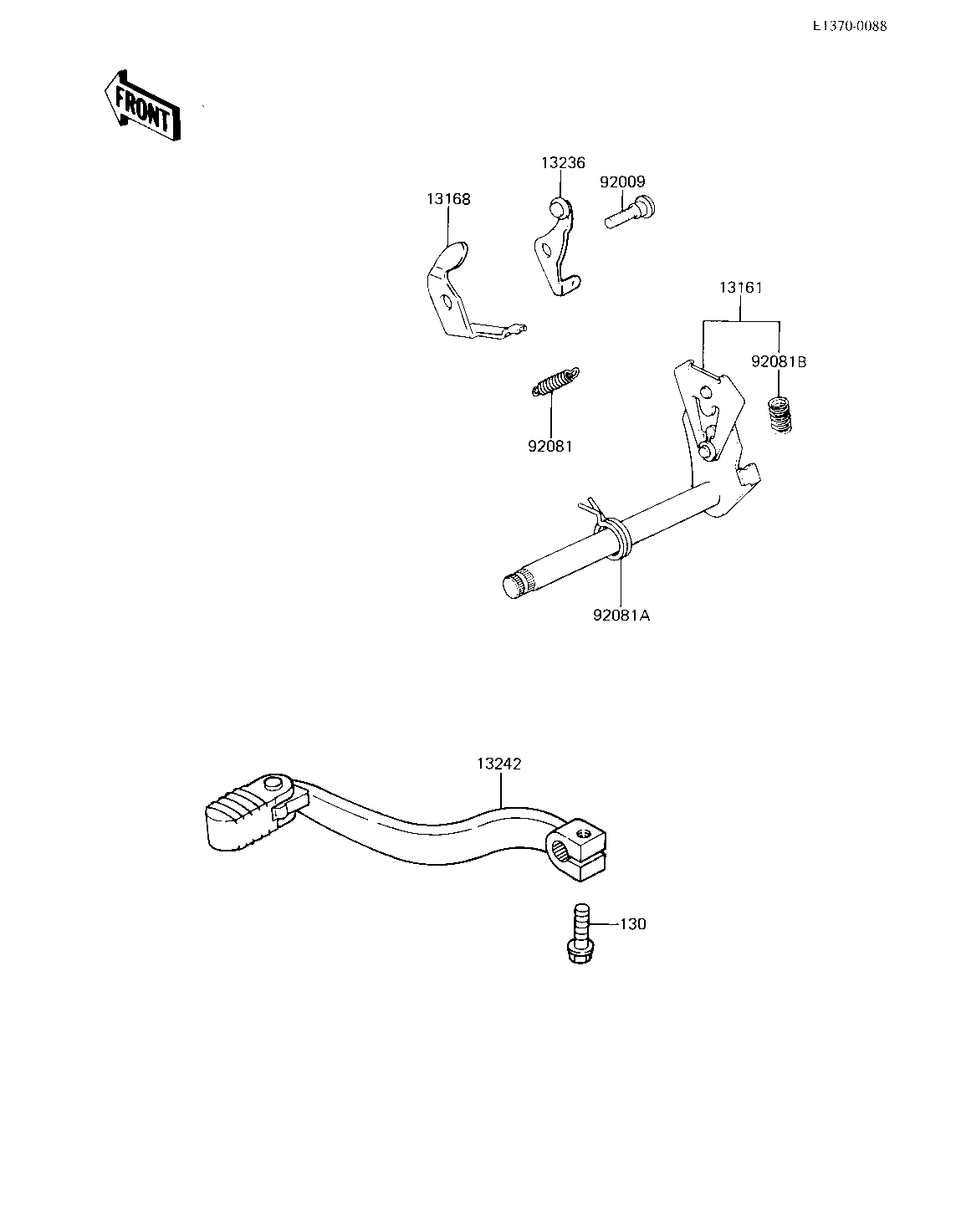

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHA 13161 13161-1108 1
LEVER,POSITIONING 13168 13168-1069 1
LEVER,POSITIONING 13236 13236-1026 1
LEVER-ASSY-CHANGE 13242 13242-1157 1
SCREW,CHANGE LEVER 92009 92009-1102 1
SPRING,CHANGE LEVER 92081 92081-1109 1
SPRING,TENTION 92081A 92081-1129 1
SPRING CHANGE LEVER 92081B 92081-1275 1
BOLT-FLANGED,6X20 130 130P0620 1
