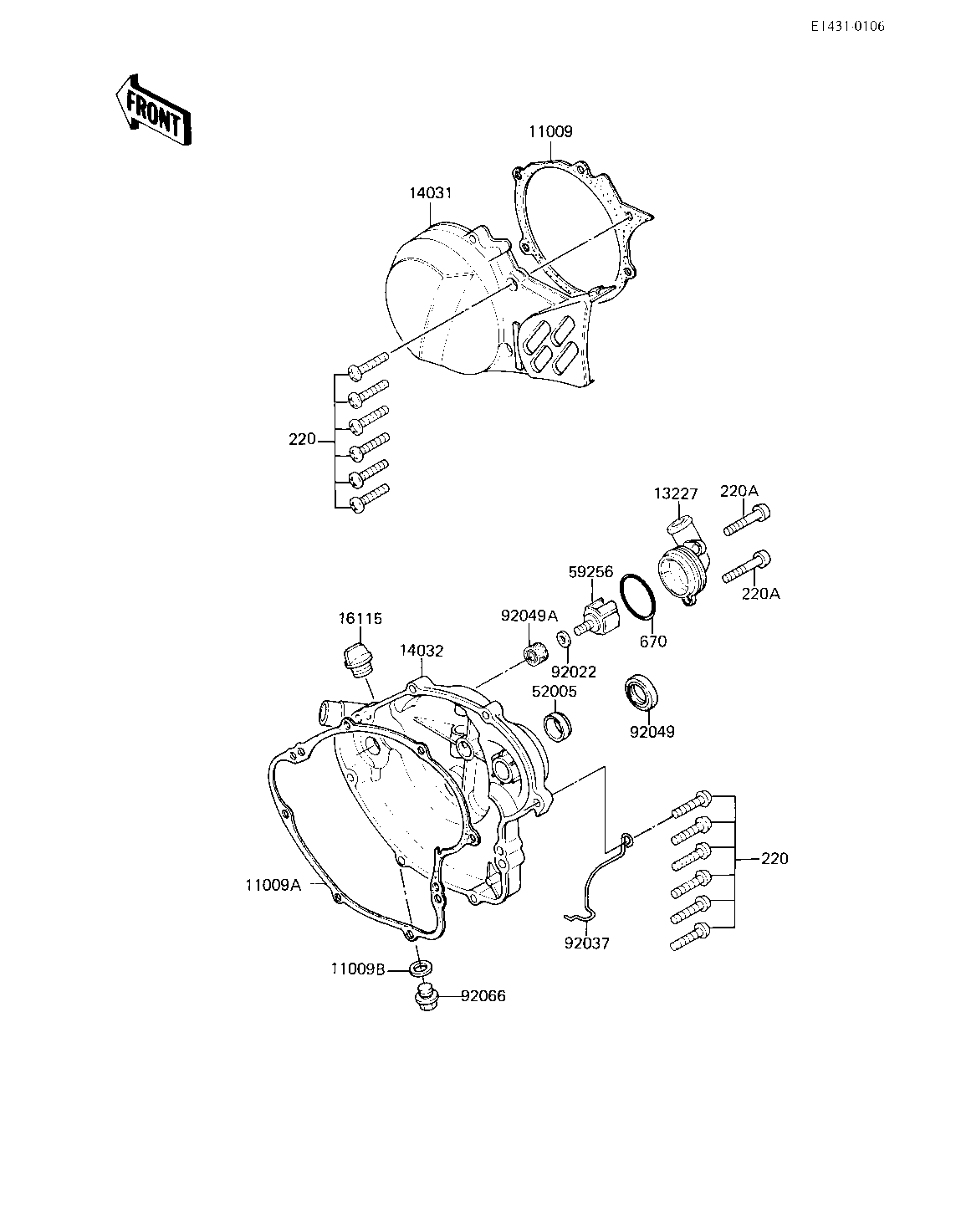

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR COVE 11009 11009-1974 1
GASKET,CLUTCH COVER 11009A 11009-1976 1
GASKET CHECK VALVE 11009B 92065-058 1
HOUSING,WATER PUMP 13227 13227-1009 1
COVER-GENERATOR 14031 14031-1185 1
COVER-CLUTCH 14032 14032-1101 1
FILLER,OIL 16115 16115-018 1
GAUGE,OIL LEVEL 52005 52005-1005 1
IMPELLER,WATER PUMP 59256 59256-1051 1
WASHER,5.2X13X1 92022 92022-1380 1
CLAMP 92037 92037-1236 1
OIL SEAL SB16244 92049 92049-002 1
SEAL-OIL,MHSD8X18X10J 92049A 92049-1366 1
PLUG 92066 92066-1241 1
SCREW-PAN-CROS,6X25,B 220 220C0625 12
SCREW-PAN-CROS,6X65 220A 220C0665 2
O RING,39MM 670 670B3039 1
