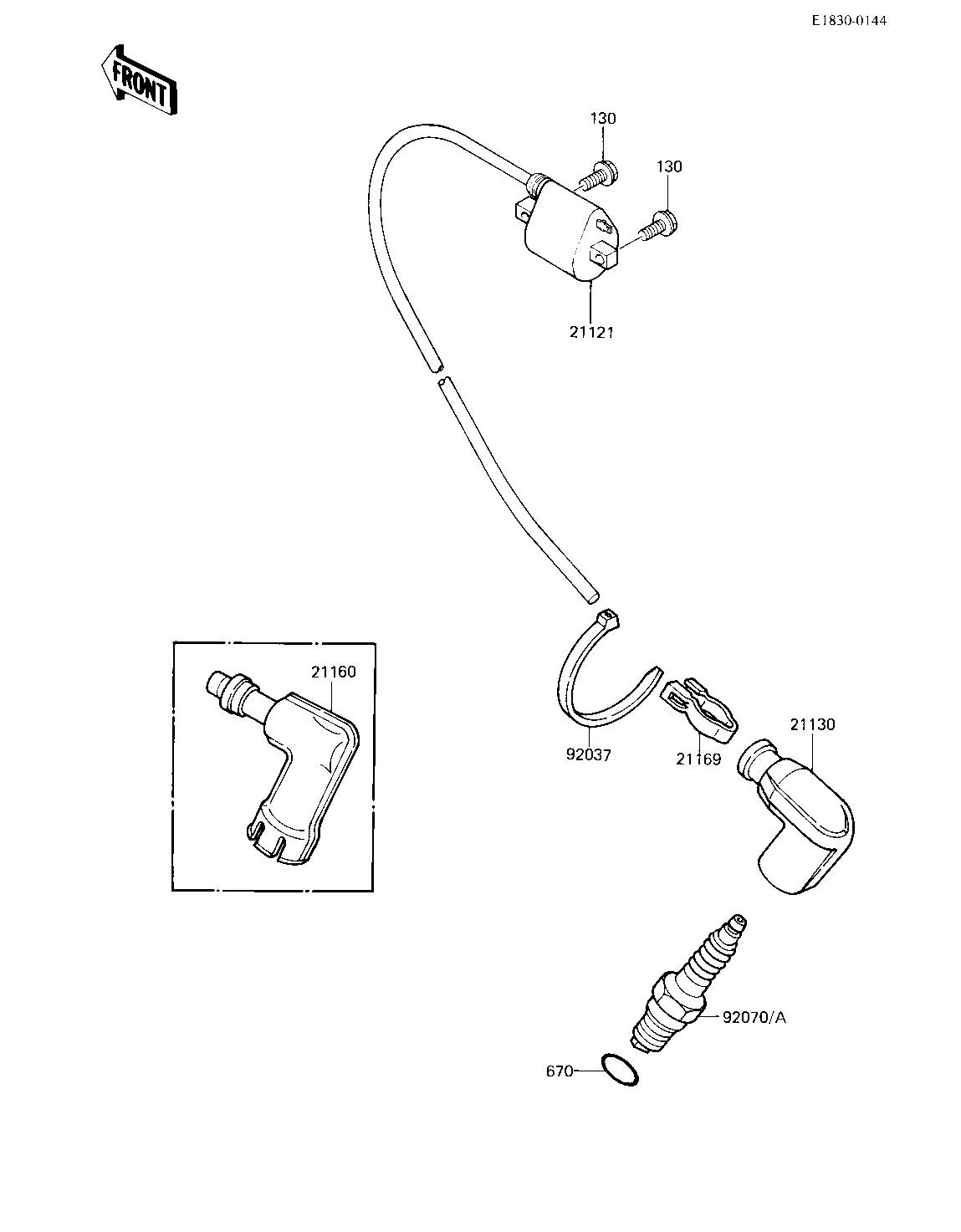

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-IGNITION 21121 21121-1057 1
CAP,SPARK PLUG 21130 21130-1006 1 US
CAP,SPARK PLUG 21160 21160-005 1 CN
TERMINAL,PLUG CAP 21169 21169-001 1 US
CLAMP,SPARK PLUG CAP 92037 92037-1173 1 US
SPARK PLUG B9EG 92070 B9EG 1 US
*** N.L.A.*** (Canada) 92070A 92070-1061 1 CN
BOLT-FLANGED,6X16 130 130G0616 2
"0" RING,16MM 670 670B2016 1
