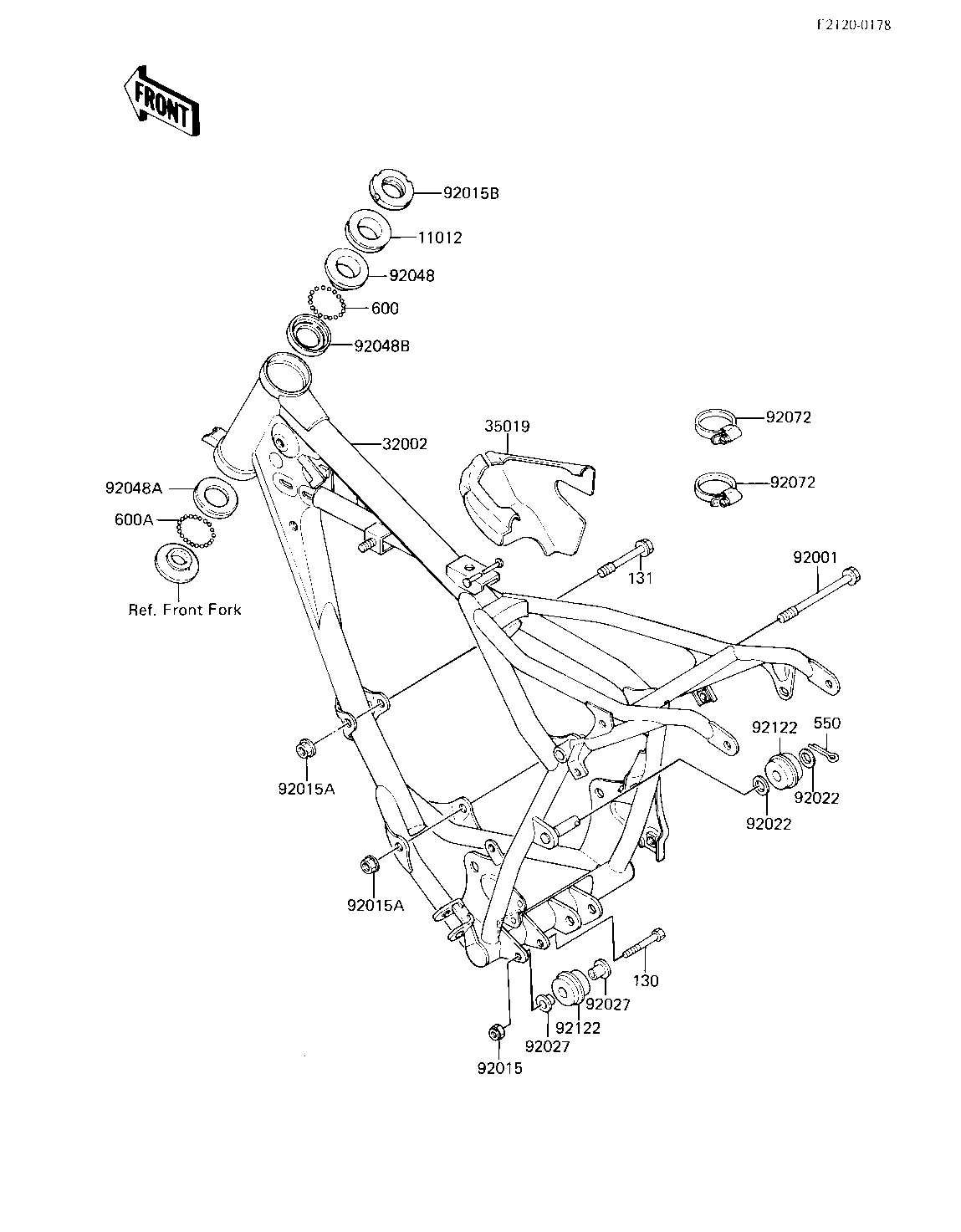

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,STEERING STEM | 11012 | 46098-018 | 1 | ||
FRAME-COMP | 32002 | 32002-1526 | 1 | ||
FLAP,AIR FILTER CASE | 35019 | 35019-1052 | 1 | ||
BOLT,ENGINE MOUNT | 92001 | 92001-1367 | 1 | ||
NUT-6MM | 92015 | 92015-1078 | 1 | ||
NUT-8MM | 92015A | 92015-1143 | 2 | ||
NUT,STEERING LOCK,25M | 92015B | 92015-1222 | 1 | ||
WASHER,PLAIN | 92022 | 92022-239 | 2 | ||
COLLAR,RADIATOR GUARD | 92027 | 92027-1183 | 2 | ||
CONE,STRG STM BRG,UP | 92048 | 92047-014 | 1 | ||
RACE STEERING BEARING | 92048A | 92048-005 | 1 | ||
RACE,STRG STM BEARING | 92048B | 92048-009 | 1 | ||
BANK,RESERVOIR TANK | 92072 | 92072-1091 | 2 | ||
ROLLER,CHAIN GUIDE | 92122 | 92122-1030 | 2 | ||
BOLT,FLANGED,6X40 | 130 | 130G0640 | 1 | ||
BOLT 8X60 | 131 | 131G0860 | 1 | ||
PIN,COTTER,2.5X15 | 550 | 550D2515 | 1 | ||
BALL STEEL 3/16' | 600 | 600A0600 | 23 | ||
BALL STEEL 1/4' | 600A | 600A0800 | 19 |
