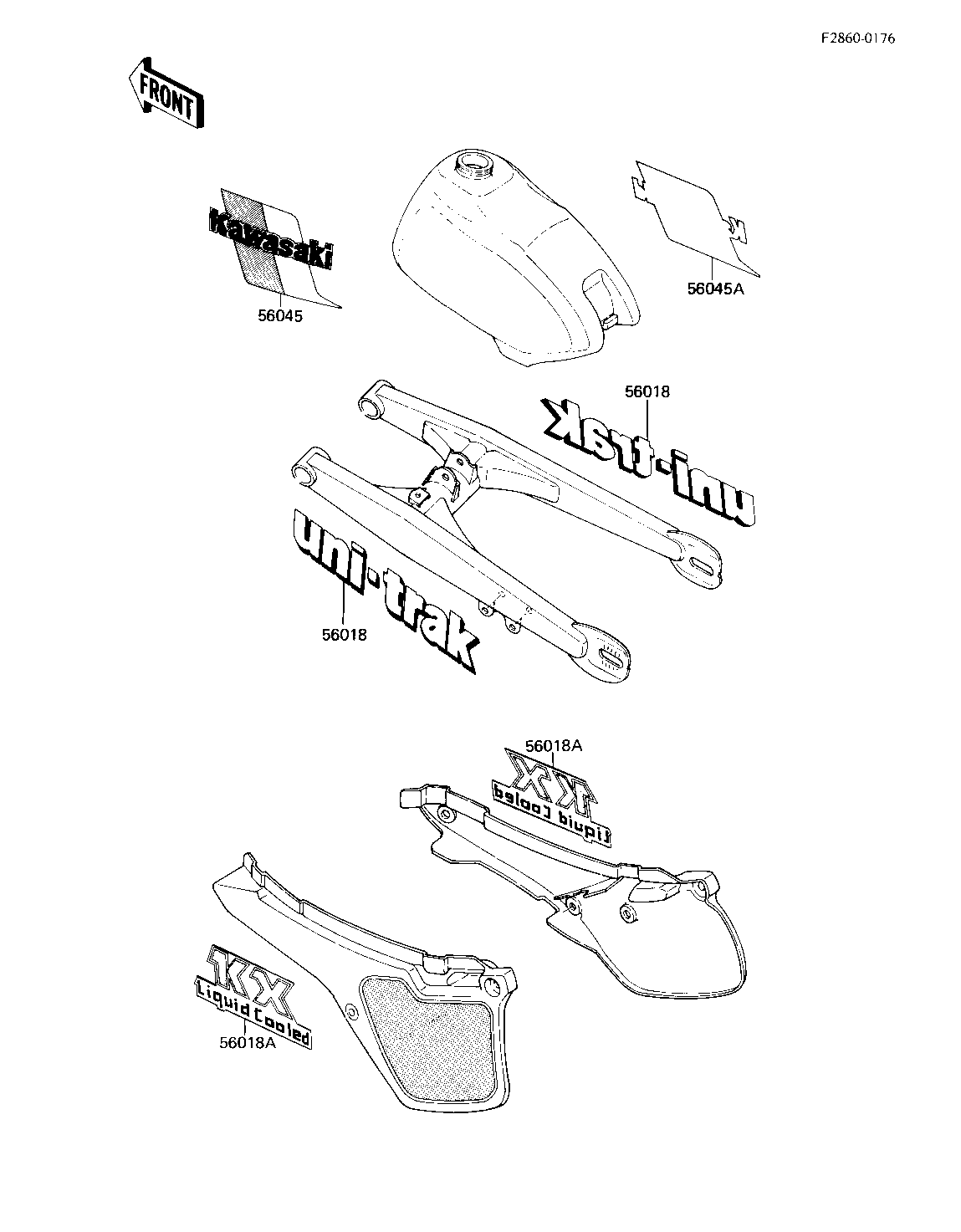

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SWING ARM,UNI-TR 56018 56018-1362 2
MARK,SIDE COVER 56018A 56018-1382 2
PATTERN,FUEL TANK,LH 56045 56045-1457 1
PATTERN,FUEL TANK,RH 56045A 56045-1458 1
