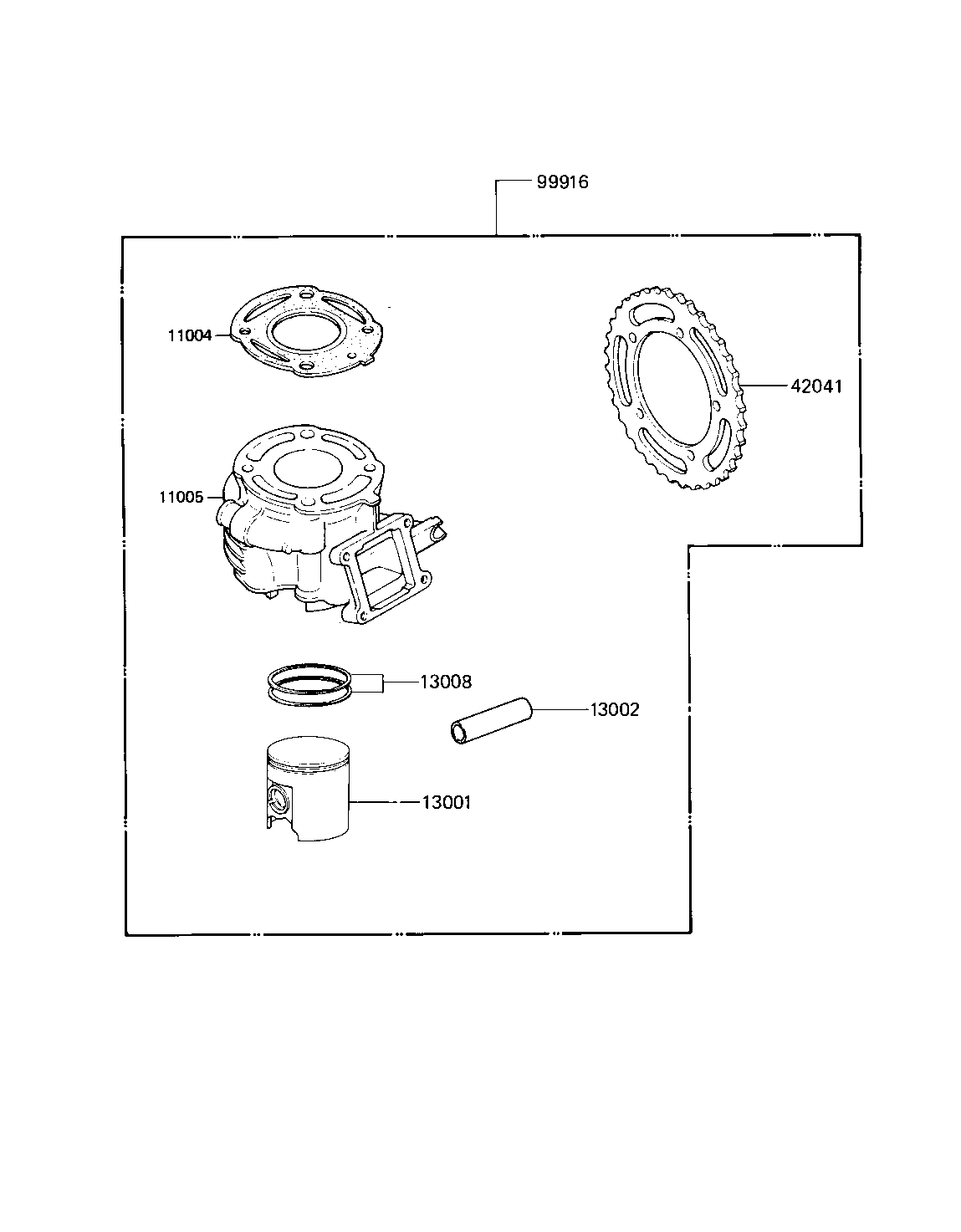

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD,CYLINDER 11004 11004-1060 1
CYLINDER-ENGINE 11005 11005-1231 1
PISTON 13001 13001-1081 1
PIN-PISTON 13002 13002-1018 1
RING-SET-PISTON 13008 13008-5041 1
SPROCKET-HUB,47T 42041 42041-1129 1
KIT-KHI PARTS,KX80-E1 99916 99916-1017 1
