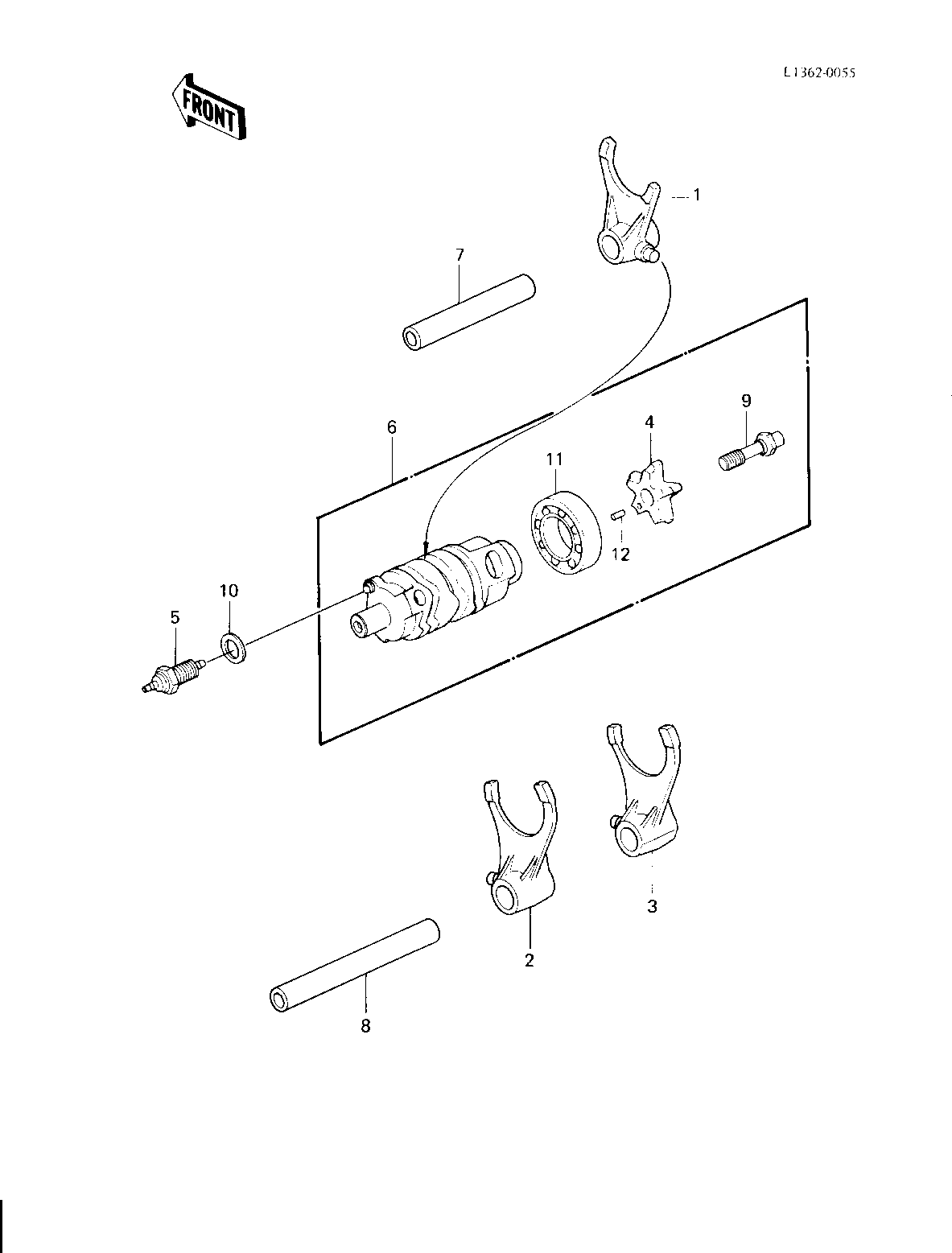

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-SHIFT,LOW 1 13140-1064 1
FORK-SHIFT,2ND&3RD 2 13140-1065 1
FORK-SHIFT,4TH&TOP 3 13140-1066 1
CAM-CHANGE DRUM 4 13145-1005 1
SWITCH,NEUTRAL 5 13151-1007 1
DRUM-ASSY-CHANGE 6 13239-1071 1
ROD,SHIFT 71.7M/M 7 49047-1002 1
ROD,SHIFT 93.7M/M 8 49047-1003 1
BOLT,CHANGE DRUM 9 92001-1714 1
GASKET CHECK VALVE 10 92065-058 1
BEARING,BALL,#6905 11 92045-036 1
PIN-DOWEL,4X6 12 610A0406 1
