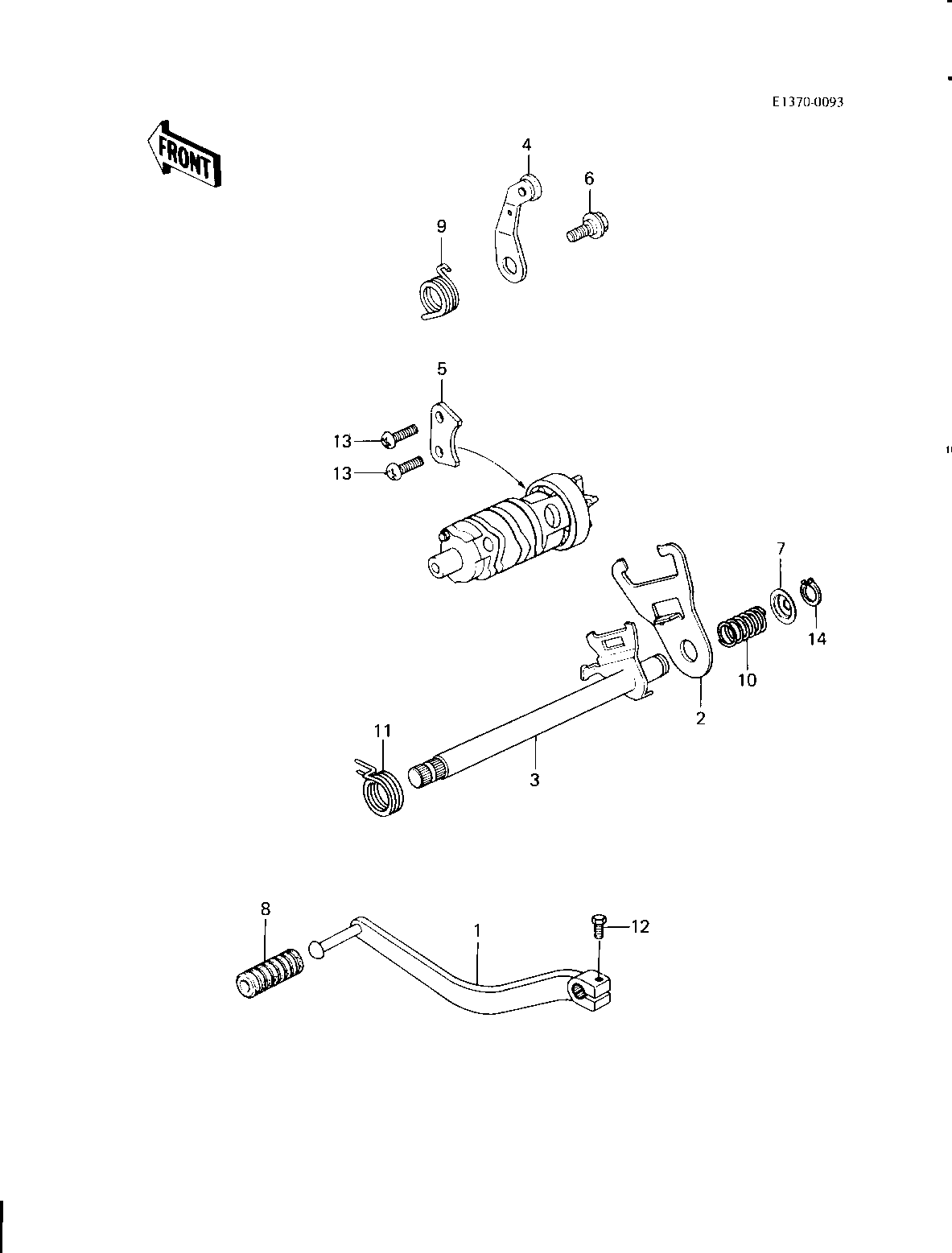

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,GEAR SHIFT 1 13156-1070 1
LEVER-CHANGE 2 13156-1122 1
LEVER-COMP-CHANGE SHA 3 13161-1046 1
LEVER,GEAR CHANGE 4 13168-1129 1
PLATE,GEAR CHANGE 5 13169-014 1
BOLT 6 92001-1715 1
WASHER,CHANGE LEVER 7 92022-1406 1
DAMPER,CHANGE PEDAL 8 92160-1108 1
SPRING 9 92081-1496 1
SPRING,CHANGE REVER 10 92081-1536 1
SPRING,CHG PEDL RTRN 11 92083-028 1
BOLT,8X20 12 115G0820 1
SCREW PAN HEAD 6X14 13 220B0614 2
CIRCLIP,13MM 14 480J1300 1
