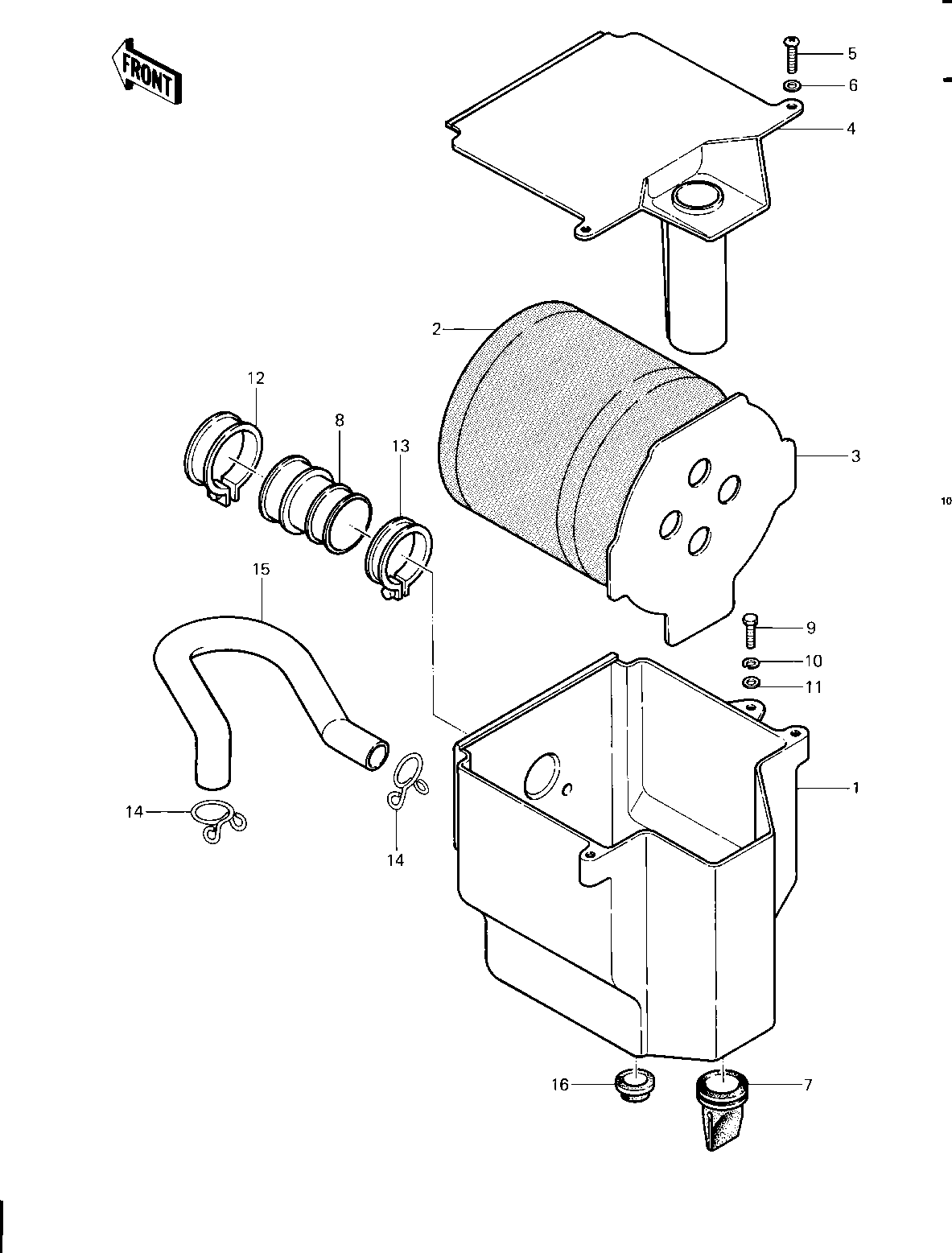

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 1 11011-1086 1
ELEMENT,AIR CLNR 2 11013-1053 1
HOLDER,ELEMENT 3 13091-1125 1
COVER,AIR FILTER 4 14025-1385 1
SCREW PAN HEAD 6X12 5 220B0612 2
WASHER PLAIN 6MM 6 410B0600 2
BOOT 7 49006-1065 1
DUCT,AIR INLET 8 14073-1067 1
BOLT-UPSET,6X16 9 112G0616 1
WASHER SPRING 6MM 10 461F0600 1
WASHER PLAIN 6MM 11 411B0600 1
CLAMP-INLET PIPE 12 92037-061 1
CLAMP,MUFFLER 13 92037-177 1
CLAMP,BREATHER TUBE 14 92037-213 2
TUBE,BREATHER 15 92059-1253 1
DAMPER RUBBER,SIG LM 16 92075-158 1
