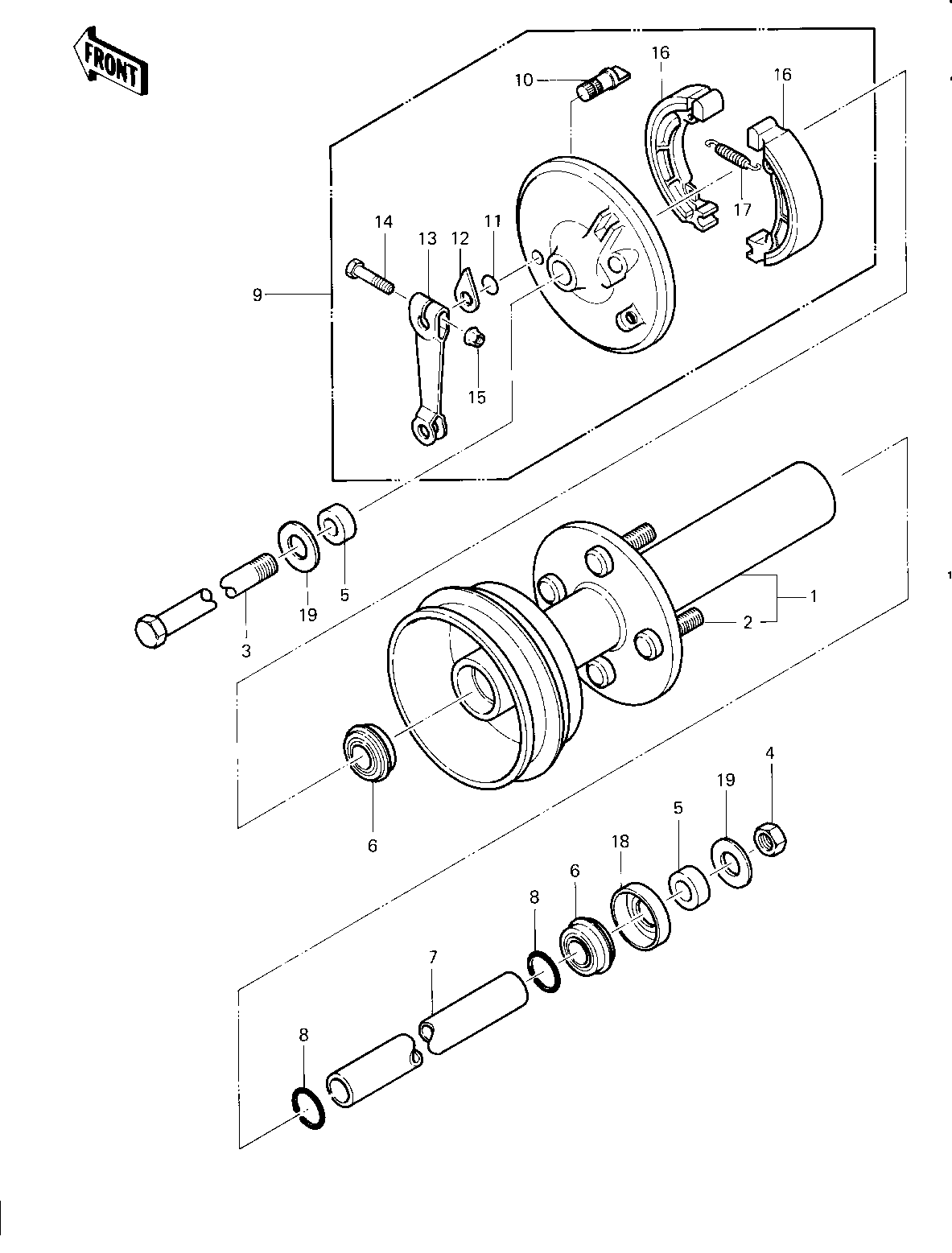

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM ASSY,FRONT 1 41038-4013 1
BOLT,LUG 2 92001-4006 4
AXLE,FRONT 3 41068-4003 1
NUT,LOCK 14M/M 4 92015-1122 1
COLLAR 5 92027-4009 2
BEARING BALL HUB-ASSY 6 92045-4005 2
PIPE,SPACER 7 32032-4109 1
"0" RING 8 92055-4001 2
PANEL-ASSY-BRAKE,FR 9 41035-1164 1
CAM SHAFT-FRONT BRAKE 10 41050-018 1
"0" RING,11MM 11 92055-004 1
INDICATOR,FR BK SHOE 12 41085-013 1
LEVER FRONT BRAKE CAM 13 41053-005 1
BOLT-UPSET 14 112G0630 1
NUT,6MM 15 41072-007 1
SHOE-BRAKE 16 41048-1085 2
SPRING,BRAKE SHOE 17 92081-1766 2
CAP-BEARING 18 14022-4003 1
WASHER PLAIN 16MM 19 410B1600 2
