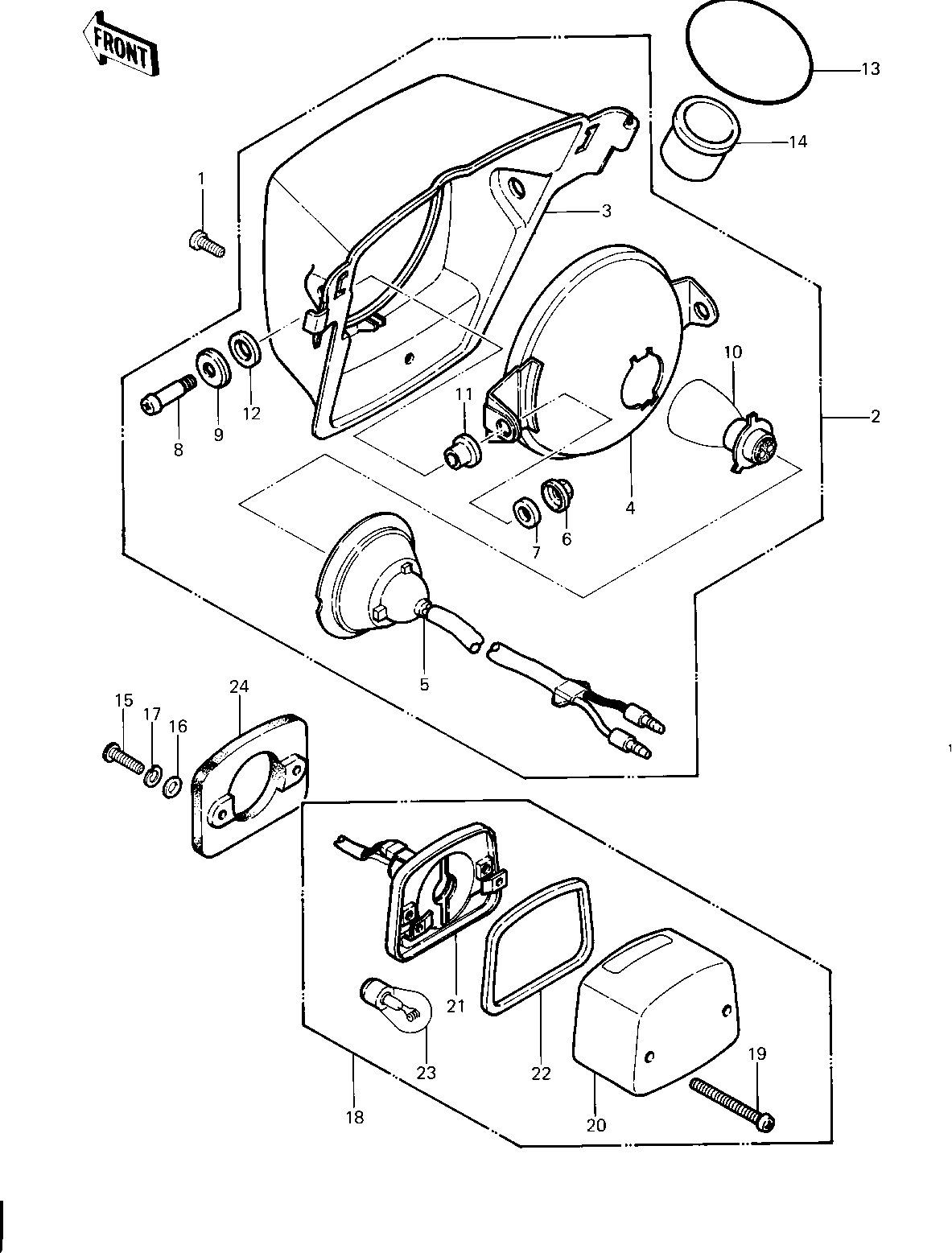

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW PAN HEAD 6X12 | 1 | 220B0612 | 1 | ||
LAMP ASSY HEAD,BLACK | 2 | 23001-4002-6D | 1 | ||
LAMP ASSY HEAD,RED | 2 | 23001-4002-8S | 1 | ||
BODY HEAD LAMP,BLACK | 3 | 23005-4002-6D | 1 | ||
BODY HEAD LAMP,RED | 3 | 23005-4002-8S | 1 | ||
LENS HEAD LAMP | 4 | 23007-4001 | 1 | ||
SOCKET H.L. | 5 | 23008-4004 | 1 | ||
NUT,HEAD LAMP RIM FIT | 6 | 23020-023 | 2 | ||
WASHER-PLAIN,5MM | 7 | 23021-012 | 2 | ||
SCREW,HEAD LAMP | 8 | 92009-4003 | 2 | ||
WASHER,HEAD LAMP | 9 | 92022-4005 | 2 | ||
BULB 12V 35/25W | 10 | 92069-037 | 1 | ||
DAMPER,HEAD LAMP | 11 | 92075-4009 | 2 | ||
DAMPER,HEAD LAMP | 12 | 92075-4010 | 2 | ||
"0" RING,65MM | 13 | 671B2565 | 2 | ||
DAMPER | 14 | 92075-4005 | 2 | ||
SCREW PAN HEAD 5X18 | 15 | 220B0518 | 2 | ||
WASHER PLAIN 5MM | 16 | 410B0500 | 2 | ||
WASHER SPRING 5MM | 17 | 461F0500 | 2 | ||
LAMP,TAIL | 18 | 23025-4001 | 1 | ||
SCREW-PAN-CROS | 19 | 220B0330 | 2 | ||
LENS,TAIL LAMP | 20 | 23026-040 | 1 | ||
CASE,TAIL LAMP | 21 | 23027-044 | 1 | ||
GASKET,TAIL LIGHT | 22 | 23028-020 | 1 | ||
BULB,12V 32/3CP | 23 | 92069-059 | 1 | ||
DAMPER RUBBER | 24 | 92075-4014 | 1 |
