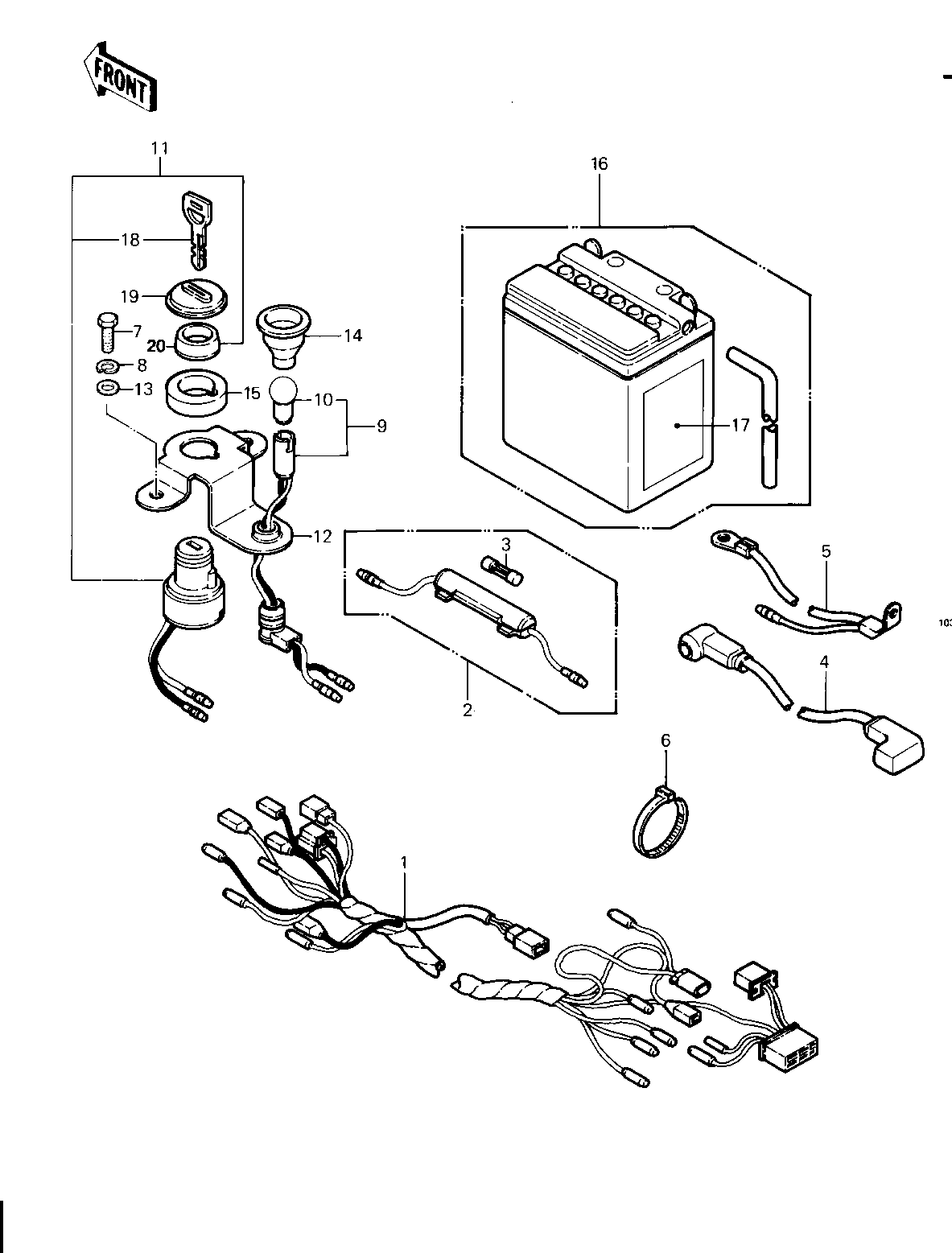

1983 KLT200 - CHASSIS ELECTRICAL EQUIPMENT
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HARNESS,MAIN | 1 | 26001-4023 | 1 | F/NO. 501600 | |
HARNESS,MAIN | 1 | 26001-4027 | 1 | F/NO. 501601 | |
FUSE ASSY | 2 | 26004-013 | 1 | ||
FUSE-20A | 3 | 26006-005 | 1 | ||
WIRE-LEAD,BATTERY(+) | 4 | 26011-4007 | 1 | ||
WIRE,BATTERY GROUND | 5 | 26010-052 | 1 | ||
BAND | 6 | 92072-3505 | 4 | ||
BOLT-UPSET 6X14 | 7 | 112B0614 | 2 | ||
WASHER SPRING 6MM | 8 | 461F0600 | 2 | ||
LAMP-ASSY,IGNITION | 9 | 23016-1025 | 1 | ||
BULB 12V 3W | 10 | 92069-018 | 1 | ||
SWITCH-ASSY-IGNITION | 11 | 27005-1117 | 1 | ||
BRKT,SWITCH | 12 | 32059-4001 | 1 | ||
WASHER,6.5X16X2 | 13 | 92022-1565 | 2 | ||
TUBE | 14 | 92059-1559 | 1 | ||
DAMPER IGNITION SWITH | 15 | 92075-4016 | 1 | ||
FB BAT FB12A-A | 16 | 26012-1004 | 1 | ||
LABEL-WARNING,BATTERY | 17 | 56040-1036 | 1 | ||
KEY-LOCK,BLANK | 18 | 27008-1103 | OP | ||
BOOT | 19 | 49006-4004 | 1 | ||
NUT,IGNITION SW LOCK | 20 | 27007-004 | 1 |
HARNESS,MAIN | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | F/NO. 501600 |
HARNESS,MAIN | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | F/NO. 501601 |
FUSE ASSY | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FUSE-20A | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE-LEAD,BATTERY(+) | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE,BATTERY GROUND | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LAMP-ASSY,IGNITION | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BULB 12V 3W | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH-ASSY-IGNITION | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRKT,SWITCH | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.5X16X2 | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER IGNITION SWITH | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FB BAT FB12A-A | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,BATTERY | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KEY-LOCK,BLANK | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | OP |
DESTINATION | |
REMARKS |
BOOT | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,IGNITION SW LOCK | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
