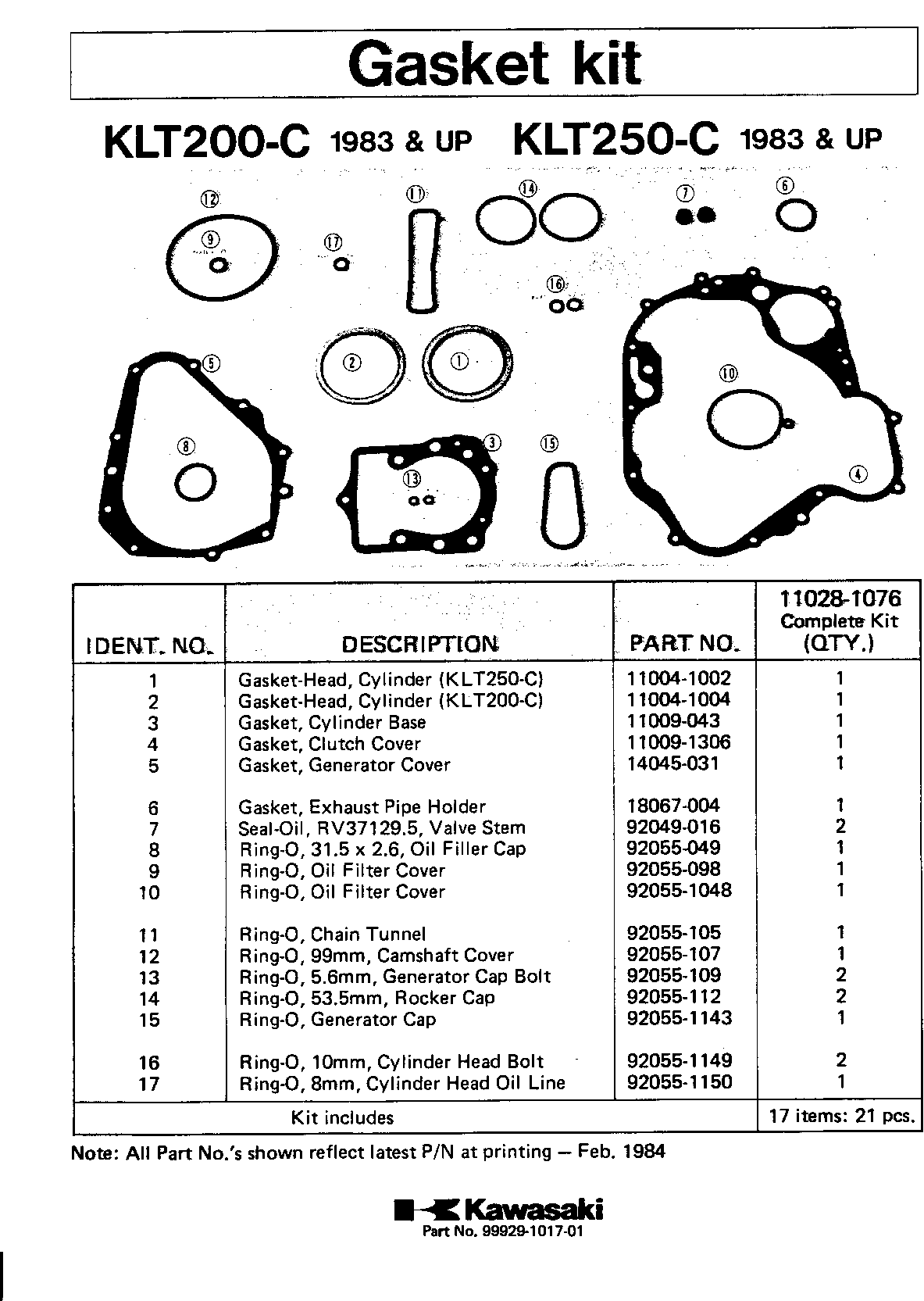

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD 1 11004-1002 1
GASKET,CYLINDER HEAD 2 11004-1004 1
GASKET,CYLINDER BASE 3 11009-043 1
GASKET,CLUTCH COVER 4 11009-1306 1
GASKET,L.H ENGINE COV 5 14045-031 1
GASKET,EXHAUST PIPE H 6 11009-1866 1
OIL SEAL,RV37129.5 7 92049-016 2
"0" RING,31MM 8 92055-049 1
"O" RING 9 92055-098 1
"0" RING,FILTER COVER 10 92055-1048 1
"0" RING 11 92055-105 1
"O" RING,99M/M 12 92055-107 1
"O" RING,DYNAMO COVER 13 92055-109 2
"0" RING,53.5MM 14 92055-112 2
RING-O 15 92055-1143 1
RING-O,10MM 16 92055-1149 2
O RING,10MM 17 92055-1150 1
