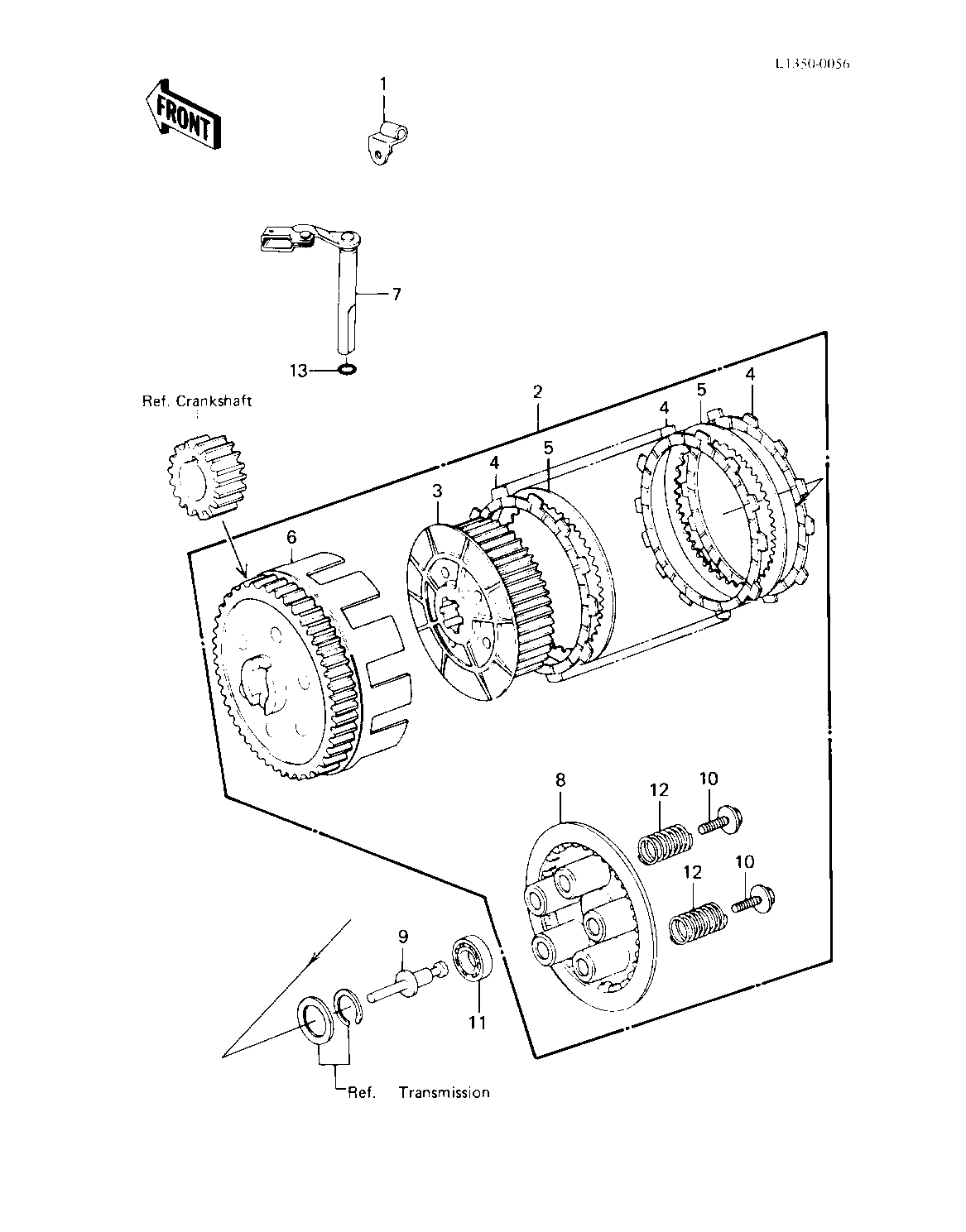

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CLUTCH CABLE 1 11045-1081 1
CLUTCH-ASSY 2 13081-1068 1
HUB,CLUTCH 3 13087-1001 1
PLATE,CLUTCH FRICTION 4 13088-1008 7
PLATE CLUTCH STEEL 5 13089-013 6
HOUSING,CLUTCH 6 13095-1015 1
RELEASE,CLUTCH 7 13102-1011 1
PLATE-CLUTCH OPERATIN 8 13187-1008 1
ROD,CLUTCH PUSH 9 46102-1033 1
BOLT,CLUTCH SPRING,6X 10 92001-1576 5
BEARING-BALL 11 92045-1235 1
SPRING-CLUTCH 12 92081-083 5
"O" RING,9MM 13 670B1509 1
