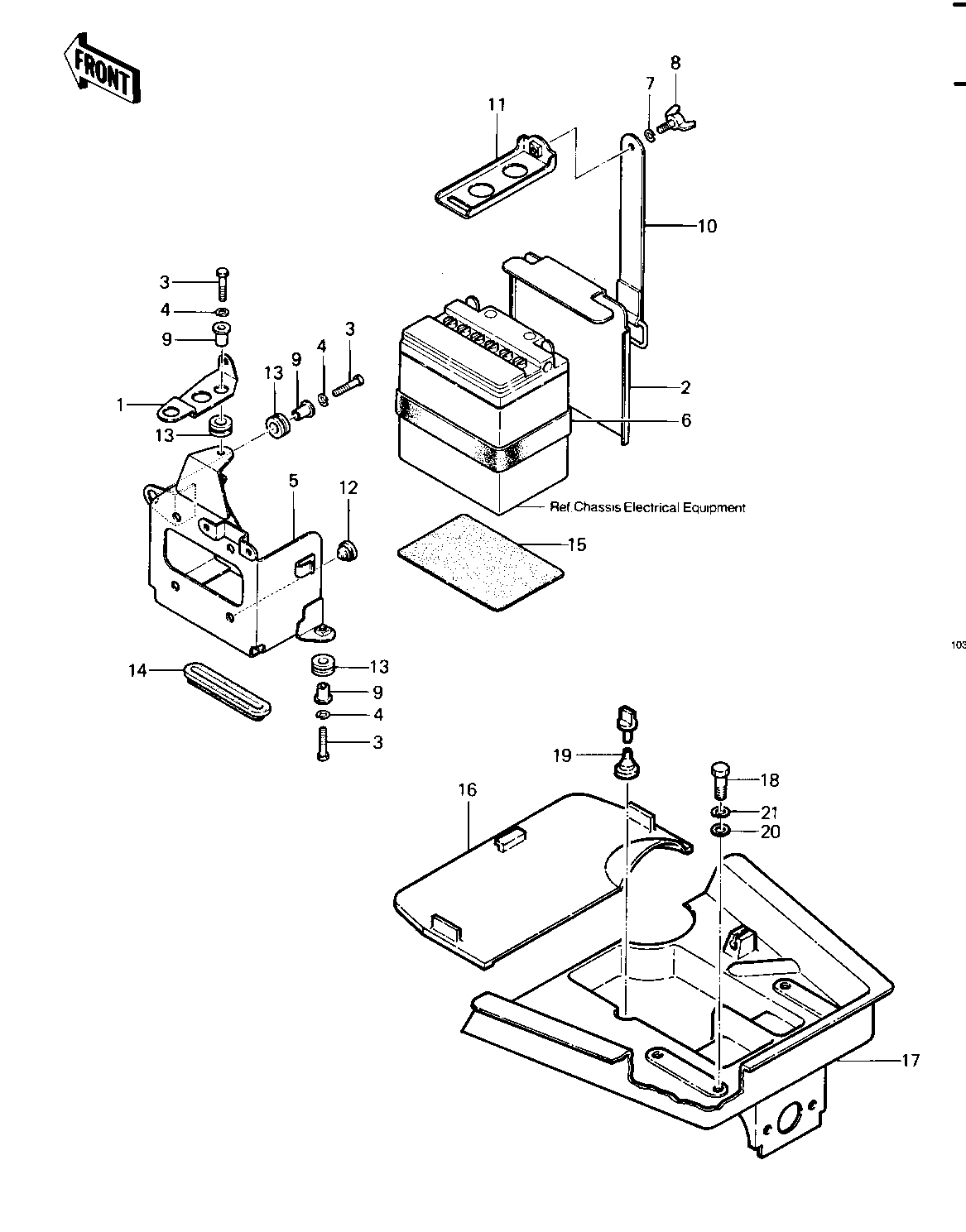

1983 KLT200 - BATTERY CASE/TOOL CASE ('83 KLT200-C1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,BLACK | 1 | 11034-4202 | 1 | ||
COVER | 2 | 14025-4007 | 1 | ||
BOLT-UPSET,6X20 | 3 | 112G0620 | 3 | ||
WASHER SPRING 6MM | 4 | 461F0600 | 3 | ||
CASE-BATTERY | 5 | 32097-4006 | 1 | ||
MAT-BATTERY SIDE | 6 | 32103-023 | 1 | ||
WASHER SPRING 6MM | 7 | 461F0600 | 1 | ||
BOLT,CLNR ELEMENT | 8 | 92003-199 | 1 | ||
COLLAR | 9 | 92027-1045 | 3 | ||
BAND,BATTERY | 10 | 92072-4005 | 1 | ||
BAND,BATTERY | 11 | 92072-4006 | 1 | ||
DAMPER RUBBER | 12 | 92075-078 | 4 | ||
DAMPER RUBBER | 13 | 92075-277 | 3 | ||
DAMPER RUBBER | 14 | 92075-280 | 1 | ||
DAMPER,BATTRY CASE | 15 | 92075-4019 | 1 | ||
COVER-TOOL CASE | 16 | 14025-4022 | 1 | ||
CASE TOOL | 17 | 32098-4002 | 1 | ||
BOLT-UPSET | 18 | 112G0625 | 4 | ||
BAND,HEAD LAMP | 19 | 92072-077 | 1 | ||
WASHER 6.5X20X1.6T | 20 | 92022-125 | 4 | ||
WASHER SPRING 6MM | 21 | 461F0600 | 4 |
