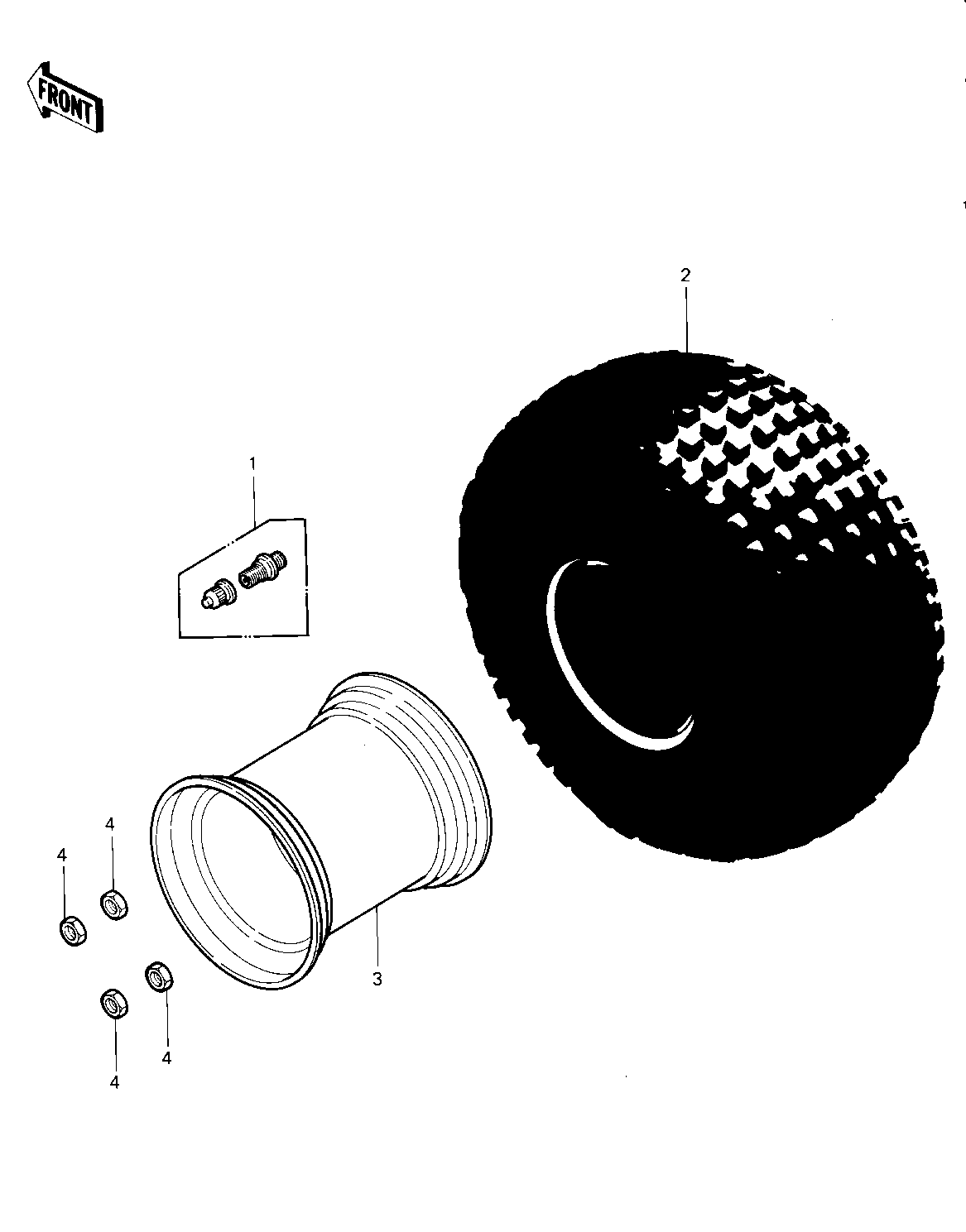

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 1 16126-4001 3
TIRE 22X11-8 RADIAL R 2 41002-4018 3 GOODYEAR RADIAL
RIM 3 41025-4005 3
NUT 4 92015-4005 12
