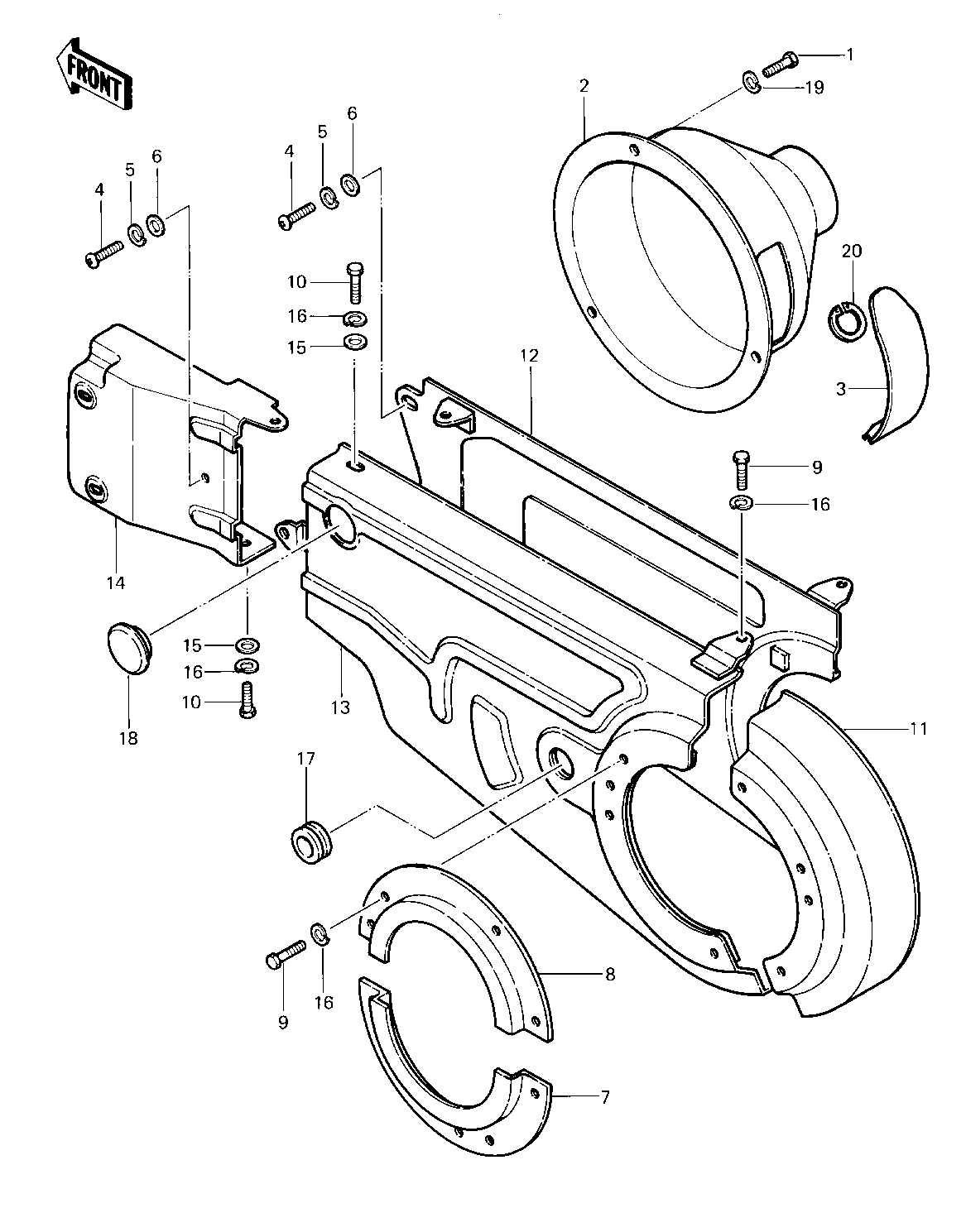

1983 KLT200 - CHAIN CASE ('83 KLT200-C1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET,6X12 | 1 | 112G0612 | 3 | ||
COVER,DIFFERENTIAL | 2 | 14025-4009 | 1 | ||
COVER,DIFFERENTIAL | 3 | 14025-4010 | 1 | ||
SCREW PAN HEAD 6X12 | 4 | 220B0612 | 5 | ||
WASHER SPRING 6MM | 5 | 461F0600 | 5 | ||
WASHER PLAIN 6MM | 6 | 410B0600 | 5 | ||
BRACKET,SMALL | 7 | 11036-1455 | 1 | ||
BRACKET,LARGE | 8 | 11036-1454 | 1 | ||
BOLT-UPSET,6X12 | 9 | 112G0612 | 11 | ||
BOLT-UPSET 6X14 | 10 | 112B0614 | 2 | ||
CASE-CHAIN,RR | 11 | 36014-1059 | 1 | ||
CASE-CHAIN,INNER | 12 | 36014-1041 | 1 | ||
CASE-CHAIN,FR | 13 | 36014-1060 | 1 | ||
CASE CHAIN,FR | 14 | 36014-4011 | 1 | ||
WASHER PLAIN 6MM | 15 | 410B0600 | 2 | ||
WASHER SPRING 6MM | 16 | 461F0600 | 13 | ||
GROMMET HARNESS 22MM | 17 | 92071-012 | 1 | ||
PLUG CHAIN CASE | 18 | 92074-004 | 1 | ||
WASHER SPRING 6MM | 19 | 461F0600 | 3 | ||
CIRCLIP, 20MM | 20 | 480J2000 | 1 |
BOLT-UPSET,6X12 | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
COVER,DIFFERENTIAL | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,DIFFERENTIAL | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X12 | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BRACKET,SMALL | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,LARGE | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X12 | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 11 |
DESTINATION | |
REMARKS |
BOLT-UPSET 6X14 | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CASE-CHAIN,RR | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-CHAIN,INNER | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-CHAIN,FR | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE CHAIN,FR | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 13 |
DESTINATION | |
REMARKS |
GROMMET HARNESS 22MM | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG CHAIN CASE | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CIRCLIP, 20MM | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
