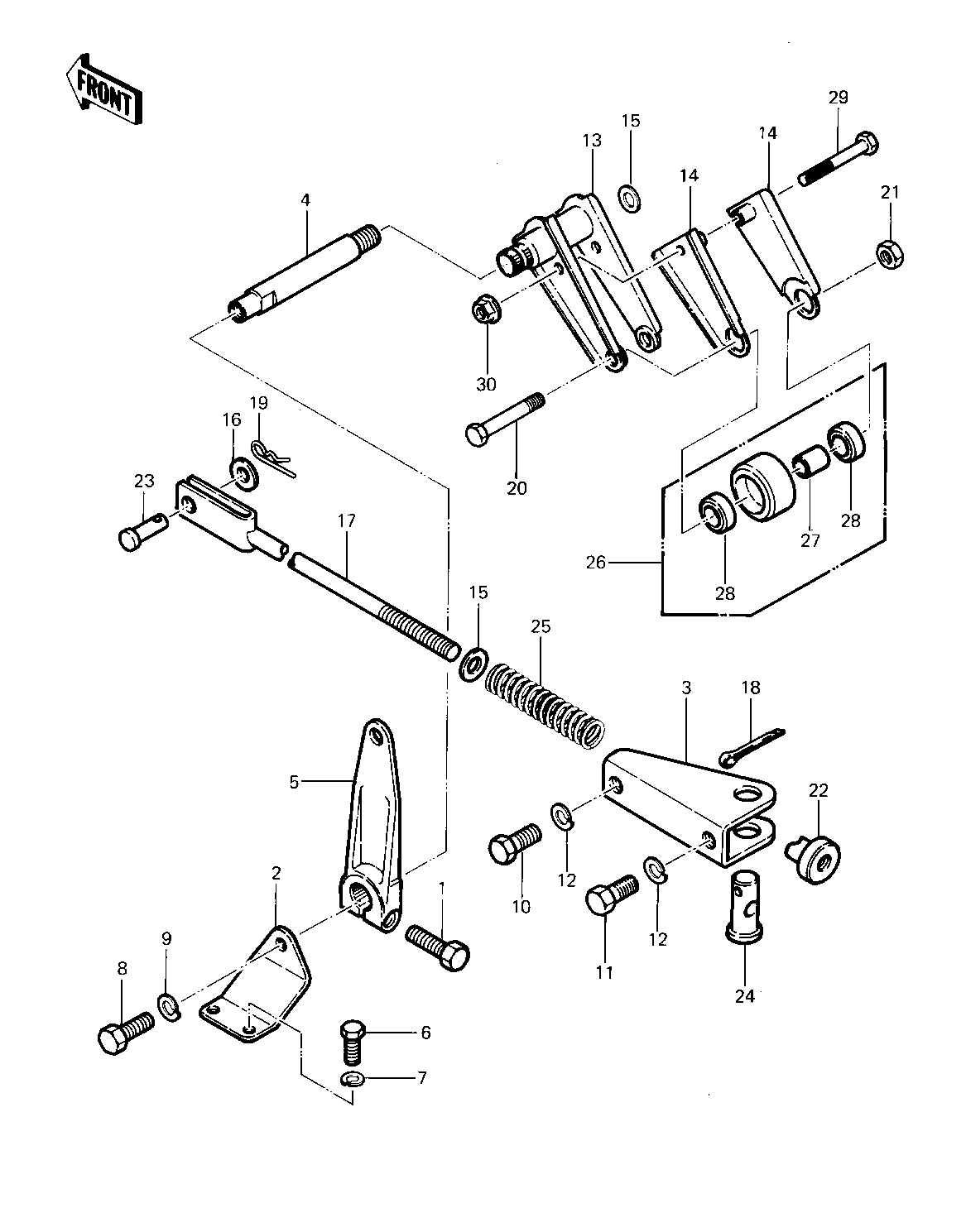

1983 KLT200 - CHAIN TENSIONER ('83 KLT200-C1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,SMALL UPSET 1 115G0835 1
BRACKET,LEVER TENSION 2 11034-4060 1
BRACKET,CHAIN ADJUST 3 11034-4061 1
SHAFT,L=90 4 13107-4008 1
LEVER-ARM-TENSIONER S 5 13168-5002 1
BOLT-UPSET 6X14 6 112B0614 2
WASHER SPRING 6MM 7 461F0600 2
BOLT-SMALL-UPSET,8X16 8 115G0816 1
WASHER SPRING 8MM 9 461F0800 1
BOLT-SMALL-UPSET,8X18 10 115G0818 1
BOLT-SMALL-UPSET 8X25 11 115G0825 1
WASHER SPRING 8MM 12 461F0800 2
LEVER-ARM-TENSIONER S 13 13168-5002 1
GUIDE-CHAIN 14 12053-4002 2
WASHER PLAIN 10MM 1 411B1000 2
WASHER PLAIN 12MM 16 411B1200 1
ROD,CHAIN TENSIONER 17 46102-4001 1
PIN,COTTER 18 550D3230 1
PIN,SNAP,12M/M 19 554A1200 1
BOLT,HEX HEAD,8X45 20 92001-4008 1
NUT,LOCK,8MM 21 92015-1124 1
NUT,BRAKE ROD ADJUSTG 22 92015-4008 1
PIN,12X22 23 92043-4004 1
PIN,18X33 24 92043-4005 1
SPRING,14X20 2 92081-1287 1
ROLLER,CHAIN ADJUST 26 92122-4004 1
SPACER,CHN GDE ROLLER 27 92027-4007 1
BEARING,BALL 28 92045-1009 2
BOLT-UPSET 29 112G0645 1
NUT 30 92019-008 1
