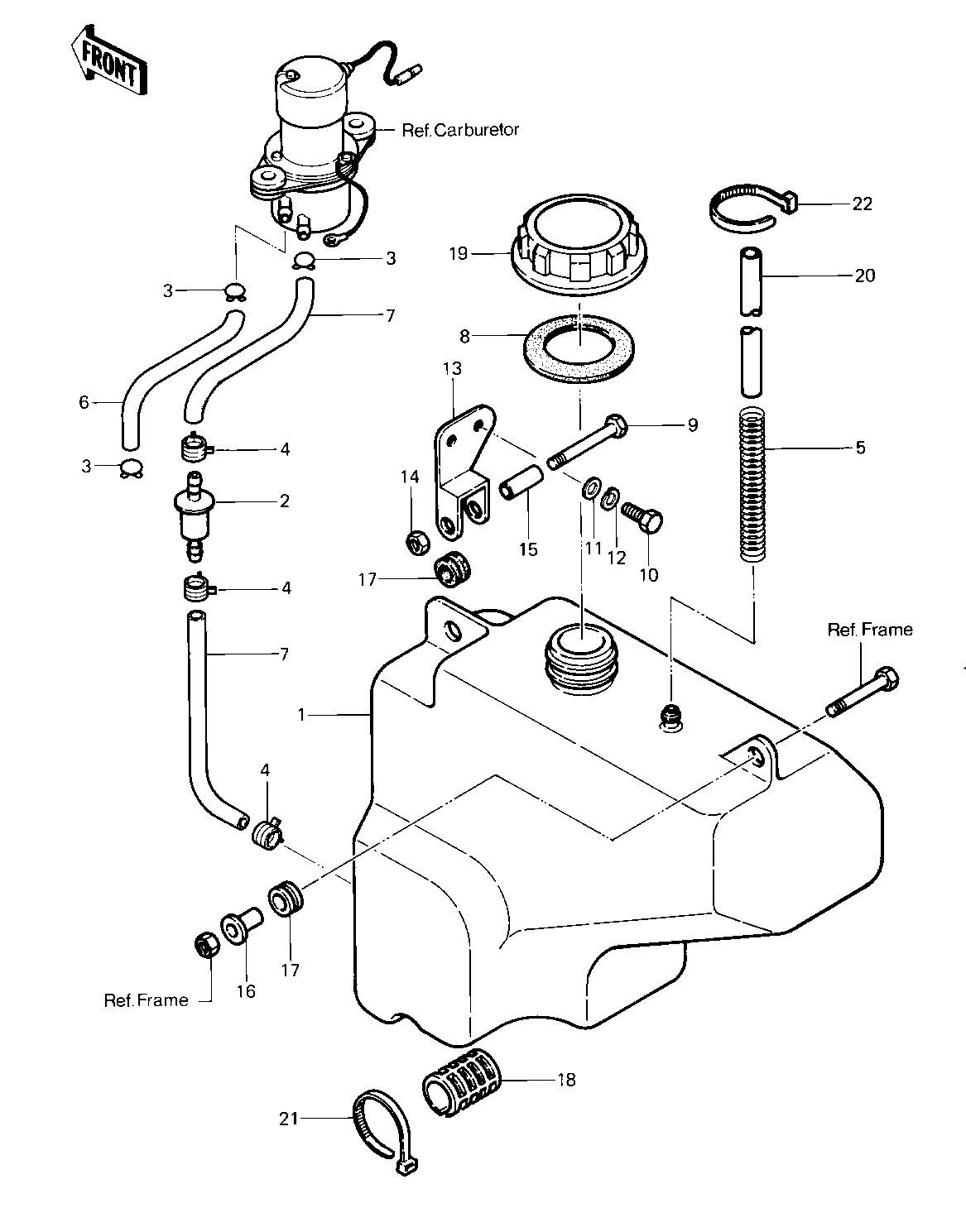

1983 KLT200 - FUEL TANK ('83 KLT200-C1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TANK-FUEL,GRAY | 1 | 51001-4003-8L | 1 | ||
FILTER-FUEL | 2 | 49019-4001 | 1 | ||
CLAMP,TUBE | 3 | 92037-1682 | 3 | ||
CLAMP | 4 | 92037-4009 | 3 | ||
SPRING | 5 | 92081-4011 | 1 | ||
TUBE,5.3X10.5X450 | 6 | 92059-4030 | 1 | ||
TUBE,5.3X10.5X85 | 7 | 92059-4029 | 2 | ||
GASKET,FUEL TANK CAP | 8 | 11009-3020 | 1 | ||
BOLT-SMALL-UPSET,8X30 | 9 | 115G0830 | 1 | ||
BOLT-UPSET,6X12 | 01 | 112G0612 | 2 | ||
WASHER PLAIN 6MM | 11 | 411B0600 | 2 | ||
WASHER SPRING 6MM | 1 | 461F0600 | 2 | ||
BRACKET-TANK | 13 | 32052-4010 | 1 | ||
NUT,LOCK,8MM | 14 | 92015-1124 | 1 | ||
SPACER FUEL TANK MONT | 15 | 92027-012 | 1 | ||
COLLAR,FUEL TANK FITT | 16 | 92027-1134 | 1 | ||
DAMPER RUBB TANK FRNT | 17 | 92075-013 | 2 | ||
DAMPER RUBBER | 18 | 92075-084 | 2 | ||
CAP,FUEL TANK | 19 | 51049-3001 | 1 | ||
TUBE | 20 | 92059-4033 | 1 | ||
BAND | 2 | 92072-3505 | 2 | ||
BAND | 22 | 92072-4004 | 3 |
TANK-FUEL,GRAY | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-FUEL | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,5.3X10.5X450 | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,5.3X10.5X85 | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,FUEL TANK CAP | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SMALL-UPSET,8X30 | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X12 | |
REF # | 01 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-TANK | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,8MM | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER FUEL TANK MONT | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,FUEL TANK FITT | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER RUBB TANK FRNT | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,FUEL TANK | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
