Part Item Information

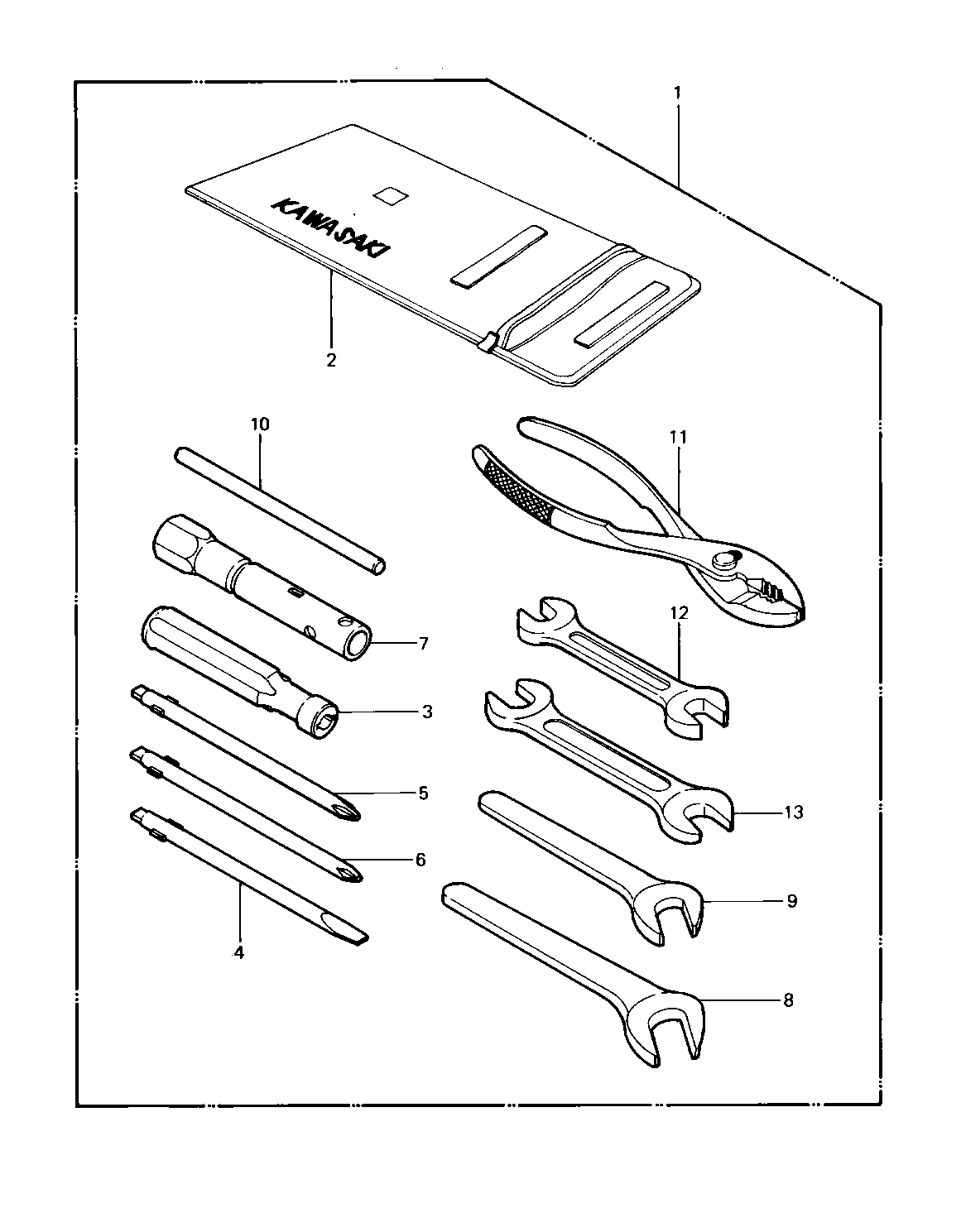

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOLKIT 1 56007-4005 1
BAG,TOOL 2 56008-009 1
GRIP,SCREW DRIVER 3 92106-1001 1
92107-1052 (Canada) 4 92107-007 1
TOOL-DRIVER 5 92107-1052 1
92107-1002 (Canada) 6 92107-008 1
UNAVAILABLE IN PRICE BOOK 7 92110-1001 1
WRENCH,OPEN END,19M/M 8 92110-1004 1
92110-1031 (Canada) 9 92110-1030 1
BAR,SPARK PLUG WRENCH 10 92111-005 1
92112-003 (Canada) 11 92112-005 1
UNAVAILABLE IN PRICE BOOK 12 92126-005 1
UNAVAILABLE IN PRICE BOOK 13 92126-006 1
