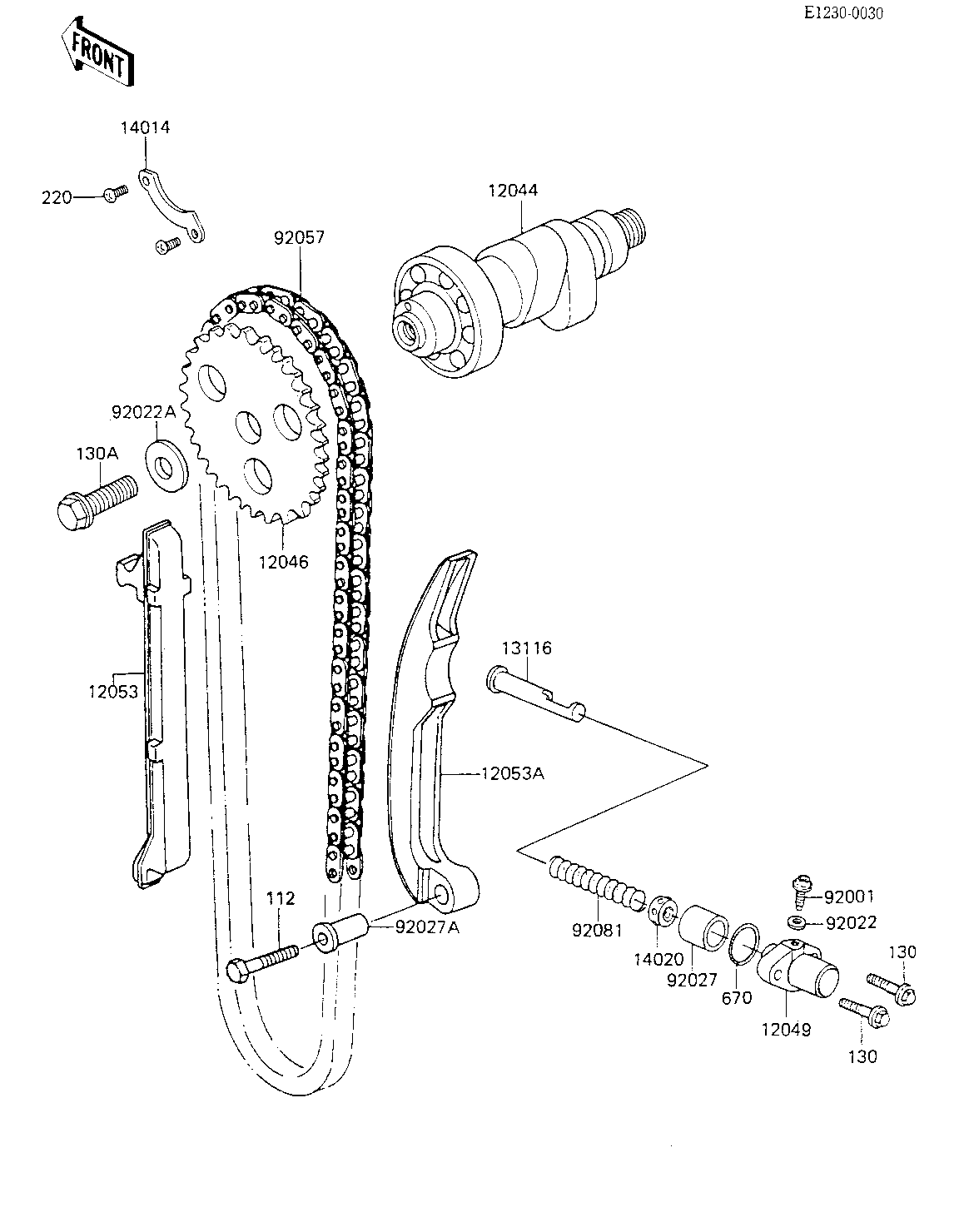

1983 KLR250 - CAMSHAFT/CHAIN/TENSIONER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAMSHAFT-VALVE | 12044 | 12044-1053 | 1 | ||
SPROCKET,CAM CHAIN,32 | 12046 | 12046-1037 | 1 | ||
TENSIONER,CAM CHAIN | 12049 | 12049-1008 | 1 | ||
SLIPER,CAM CHAIN | 12053 | 12053-023 | 1 | ||
SLIPER,CAM CHAIN | 12053A | 12053-024 | 1 | ||
ROD,PUSH,CAM CHAIN | 13116 | 13116-1019 | 1 | ||
PLATE-POSITION | 14014 | 14014-1030 | 1 | ||
RETAINER | 14020 | 14020-1002 | 1 | ||
BELT,TENSIONER ADJUST | 92001 | 92001-1155 | 1 | ||
WASHER OIL PUMP BANJO | 92022 | 92022-077 | 1 | ||
WASHER,10X22X3 | 92022A | 92022-1365 | 1 | ||
COLLAR,TENSIONER | 92027 | 92027-1273 | 1 | ||
COLLAR | 92027A | 92027-155 | 1 | ||
CHAIN,CAM | 92057 | 21070-013 | 1 | ||
SPRING,TENSIONER | 92081 | 92081-1105 | 1 | ||
BOLT-UPSET | 112 | 112G0630 | 1 | ||
BOLT,FLANGED,6X25 | 130 | 130G0625 | 2 | ||
BOLT-FLANGED,10X25 | 130A | 130G1025 | 1 | ||
SCREW PAN HEAD 6X10 | 220 | 220B0610 | 2 | ||
"0" RING,21MM | 670 | 670B2021 | 1 |
CAMSHAFT-VALVE | |
REF # | 12044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET,CAM CHAIN,32 | |
REF # | 12046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TENSIONER,CAM CHAIN | |
REF # | 12049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLIPER,CAM CHAIN | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLIPER,CAM CHAIN | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,PUSH,CAM CHAIN | |
REF # | 13116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RETAINER | |
REF # | 14020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BELT,TENSIONER ADJUST | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER OIL PUMP BANJO | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10X22X3 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,TENSIONER | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAIN,CAM | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,TENSIONER | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET | |
REF # | 112 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X25 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,10X25 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X10 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
"0" RING,21MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
