Parts Diagrams |

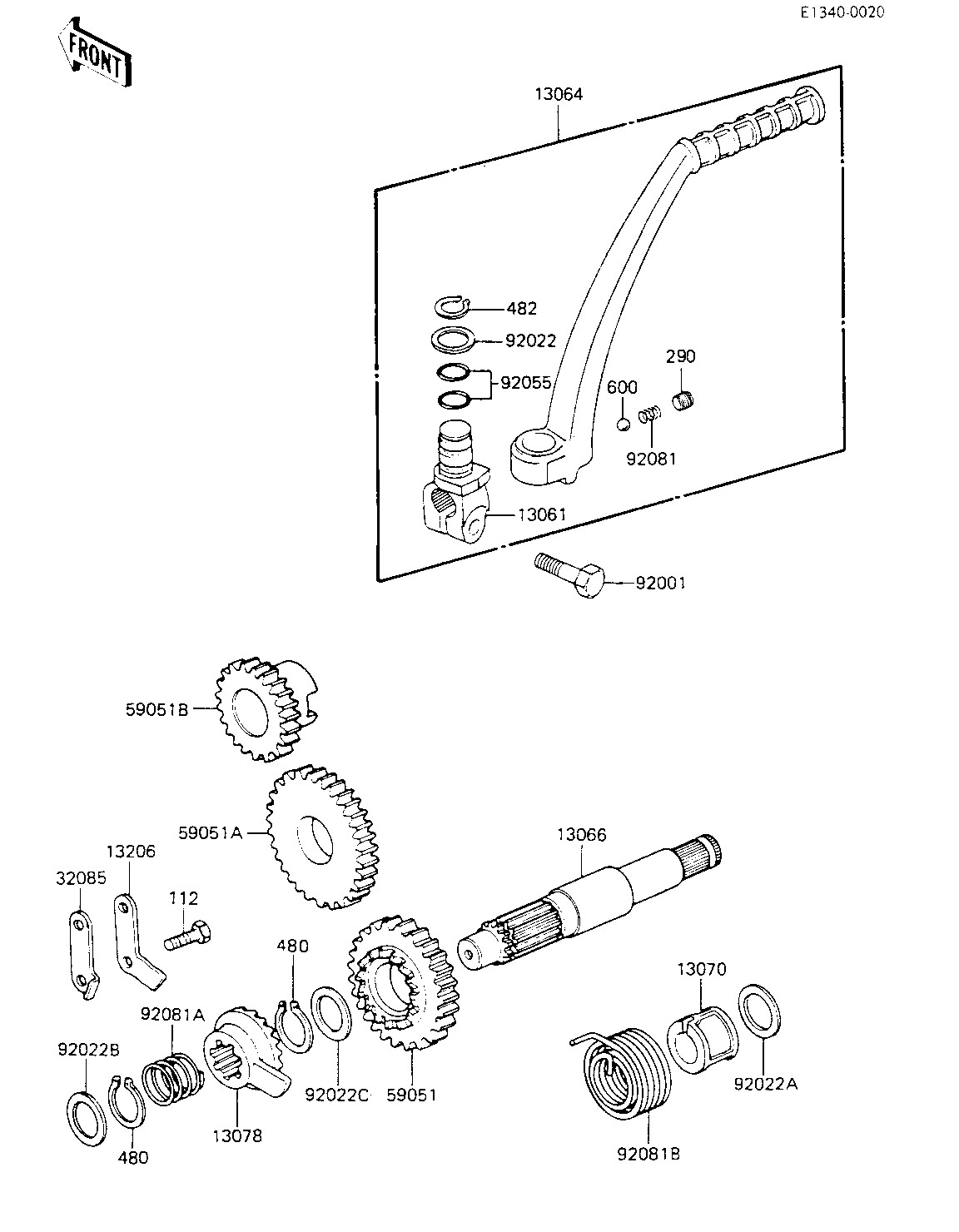

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOSS,KICK PEDAL | 13061 | 13061-1045 | 1 | ||
PEDAL ASSY,KICK | 13061 | 13064-1027 | 1 | ||
SHAFT,KICK | 13066 | 13066-1018 | 1 | ||
GUID,KICKSTARTER SPRG | 13070 | 13070-011 | 1 | ||
RATCHET,KL250-D2 | 13078 | 13078-1052 | 1 | ||
GUIDE,KICK RATCHET | 13206 | 13206-1004 | 1 | ||
STOPPER,KICKSTARTER | 32085 | 13072-017 | 1 | ||
GEAR-COMP,KICKSTARTER | 59051 | 13216-1099 | 1 | ||
IDLE GEAR,KICKSTARTER | 59051A | 13073-013 | 1 | ||
PINION,KICKSTARTER | 59051B | 13075-012 | 1 | ||
BOLT,HEX HEAD,8X28 | 92001 | 92001-1042 | 1 | ||
WASHER,PLAIN | 92022 | 92022-1019 | 1 | ||
WASHER THRUST | 92022A | 92022-118 | 1 | ||
WASHER,PLAIN | 92022B | 92022-269 | 1 | ||
WASHER,PLAIN | 92022C | 92022-315 | 1 | ||
"O" RING | 92055 | 92055-061 | 2 | ||
SPRING KICK PEDAL | 92081 | 92081-020 | 1 | ||
SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
SPRING RATCHET PA | 92081B | 92081-003 | 1 | ||
BOLT-UPSET | 112 | 112G0618 | 2 | ||
SCREW-SET-SOCKET 8X8 | 290 | 290Q0808 | 1 | ||
CIRCLIP 16MM | 480 | 480J1600 | 2 | ||
CIR CLIP | 482 | 482K0100 | 1 | ||
BALL STEEL 1/4' | 600 | 600A0800 | 1 |
BOSS,KICK PEDAL | |
REF # | 13061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PEDAL ASSY,KICK | |
REF # | 13061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,KICK | |
REF # | 13066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUID,KICKSTARTER SPRG | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RATCHET,KL250-D2 | |
REF # | 13078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,KICK RATCHET | |
REF # | 13206 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER,KICKSTARTER | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-COMP,KICKSTARTER | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
IDLE GEAR,KICKSTARTER | |
REF # | 59051A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PINION,KICKSTARTER | |
REF # | 59051B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,8X28 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,PLAIN | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER THRUST | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,PLAIN | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,PLAIN | |
REF # | 92022C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"O" RING | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING KICK PEDAL | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,RATCHET | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING RATCHET PA | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET | |
REF # | 112 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-SET-SOCKET 8X8 | |
REF # | 290 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP 16MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CIR CLIP | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BALL STEEL 1/4' | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
