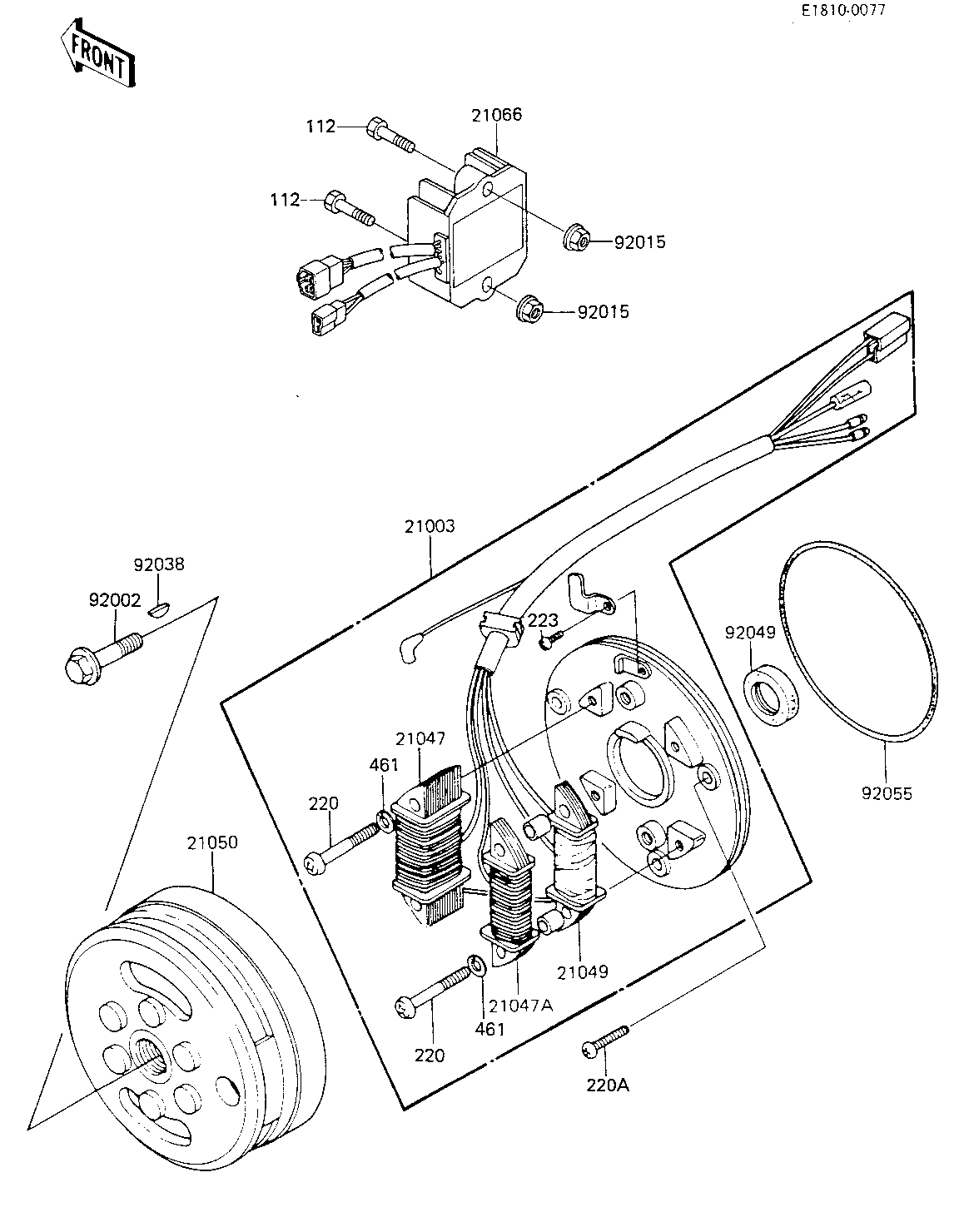

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1082 1
COIL,LIGHTING"A" 21047 21047-1011 1
COIL,LIGHTING"B" 21047A 21047-1012 1
COIL,EXCITING 21049 21049-1008 1
FLYWHEEL,MAGNETO 21050 21050-1040 1
REGULATOR-VOLTAGE 21066 21066-1035 1
BOLT,10X40 92002 92002-1296 1
NUT-6MM 92015 92015-1078 2
WOODRUFF KEY 92038 92038-001 1
OIL SEAL,S-27408-LHS 92049 92049-1004 1
"O" RING,MAGNETO BASE 92055 92055-1006 1
BOLT-UPSET 112 112G0625 2
SCREW-PAN-CROS 220 220B0535 4
SCREW PAN HEAD 6X25 220A 220B0625 3
SCREW-PAN-WS-CROS 223 223B0406 1
WASHER SPRING 5MM 461 461F0500 4
